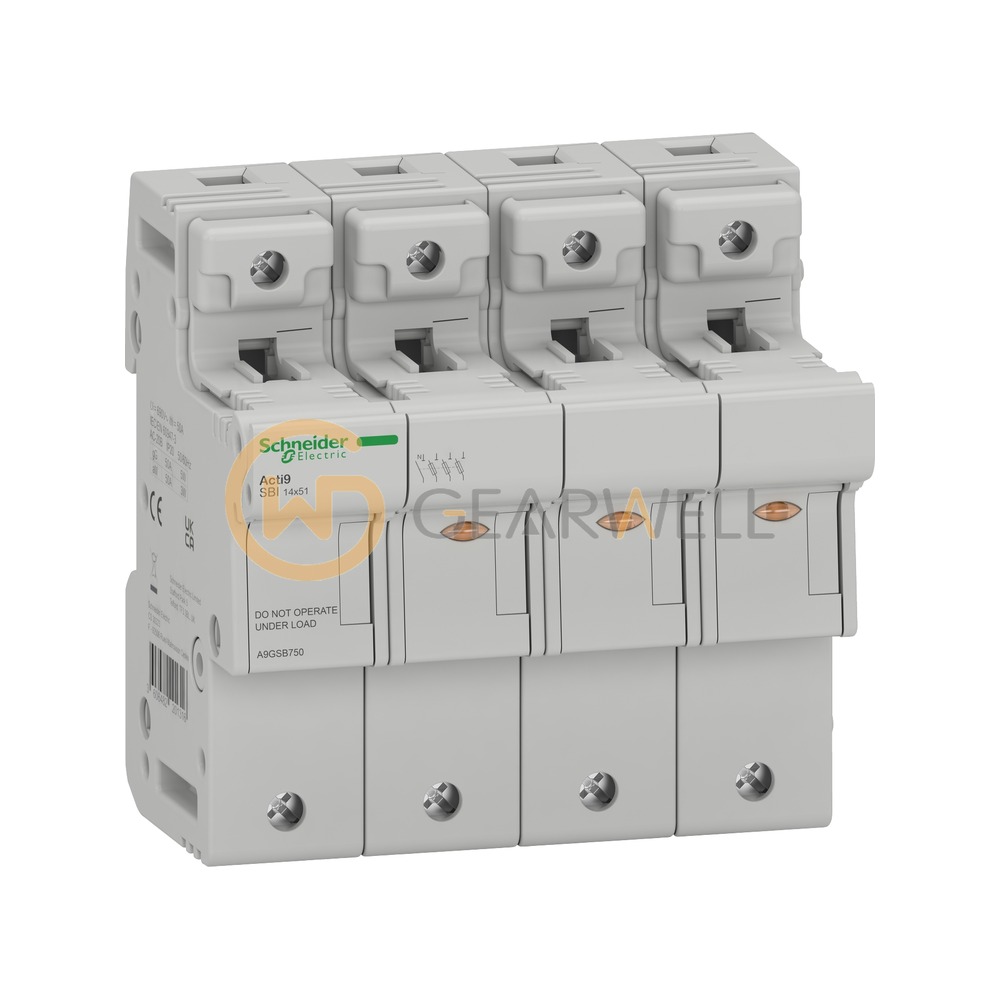

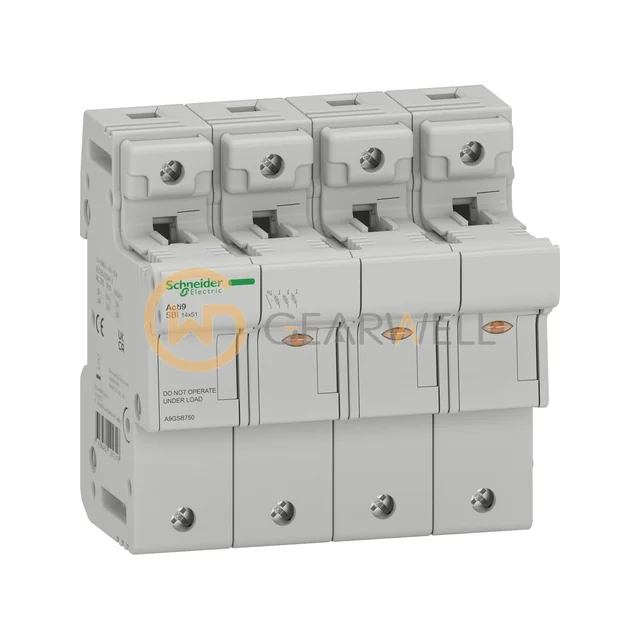

Schneider Electric A9GSB750 Acti9 SBI Fuse-disconnector
- Brand
- Schneider Electric
- Model
- A9GSB750
- GEARWELL SKU
- GWP-000011100
- Category
- Circuit Protection
Key specifications
- Fuse size
- 14 x 51 mm
- Fuse type
- aM / gG fuse 10…50 A
- Standards
- IEC EN 60947-3
- Width / pitch
- 106 mm / 12 x 9 mm pitches
- [In] rated current
- 10…50 A (per fitted fuse)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric A9GSB750 Acti9 SBI Fuse-disconnector |
|---|---|
| Brand | Schneider Electric |
| Model | A9GSB750 |
| Category | Circuit Protection |
| Fuse size | 14 x 51 mm |
| Fuse type | aM / gG fuse 10…50 A |
| Standards | IEC EN 60947-3 |
| Width / pitch | 106 mm / 12 x 9 mm pitches |
| [In] rated current | 10…50 A (per fitted fuse) |
| Mounting support | 35 mm symmetrical DIN rail |
| Poles description | 3P + N |
| [Ue] rated operational voltage | 690 V AC |
