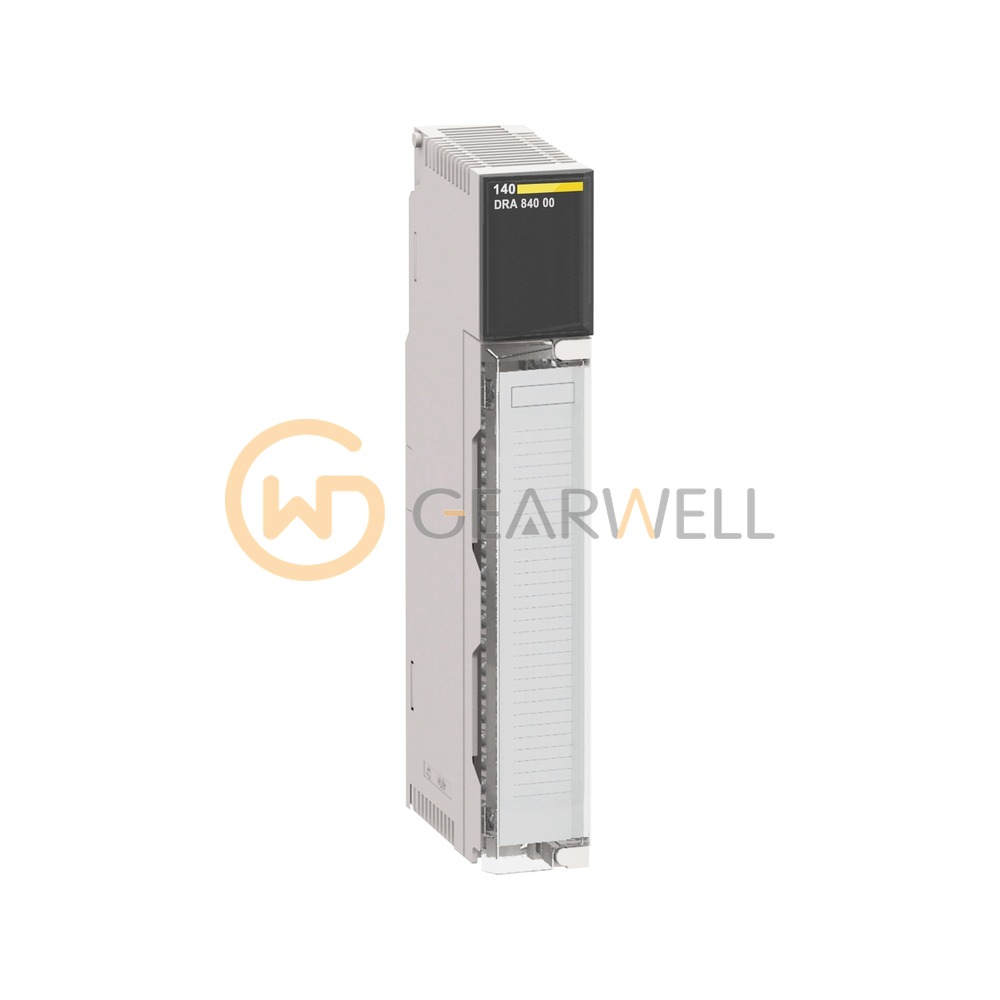

Schneider Electric 140DRA84000 Relay Discrete Output Module
- Brand
- Schneider Electric
- Model
- 140DRA84000
- GEARWELL SKU
- GWP-000010763
- Category
- PLCs & I/O
Key specifications
- Maximum load current
- 1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4; 1 A 250/30 V AC/DC tungsten; 2 A 250/30 V AC/DC resistive 140 °F (60 °C); 300 mA 30...50 V DC resistive
- Mechanical durability
- 10000000 cycles
- Addressing requirement
- 1 output word
- Discrete output number
- 16
- Discrete output voltage
- 20...250 V AC; 30...150 V DC; 5...30 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric 140DRA84000 Relay Discrete Output Module |
|---|---|
| Brand | Schneider Electric |
| Model | 140DRA84000 |
| Category | PLCs & I/O |
| Maximum load current | 1 A 250/30 V AC/DC 1/8 hp cos phi = 0.4; 1 A 250/30 V AC/DC tungsten; 2 A 250/30 V AC/DC resistive 140 °F (60 °C); 300 mA 30...50 V DC resistive |
| Mechanical durability | 10000000 cycles |
| Addressing requirement | 1 output word |
| Discrete output number | 16 |
| Discrete output voltage | 20...250 V AC; 30...150 V DC; 5...30 V DC |
| Contacts type and composition | 1 NO |
