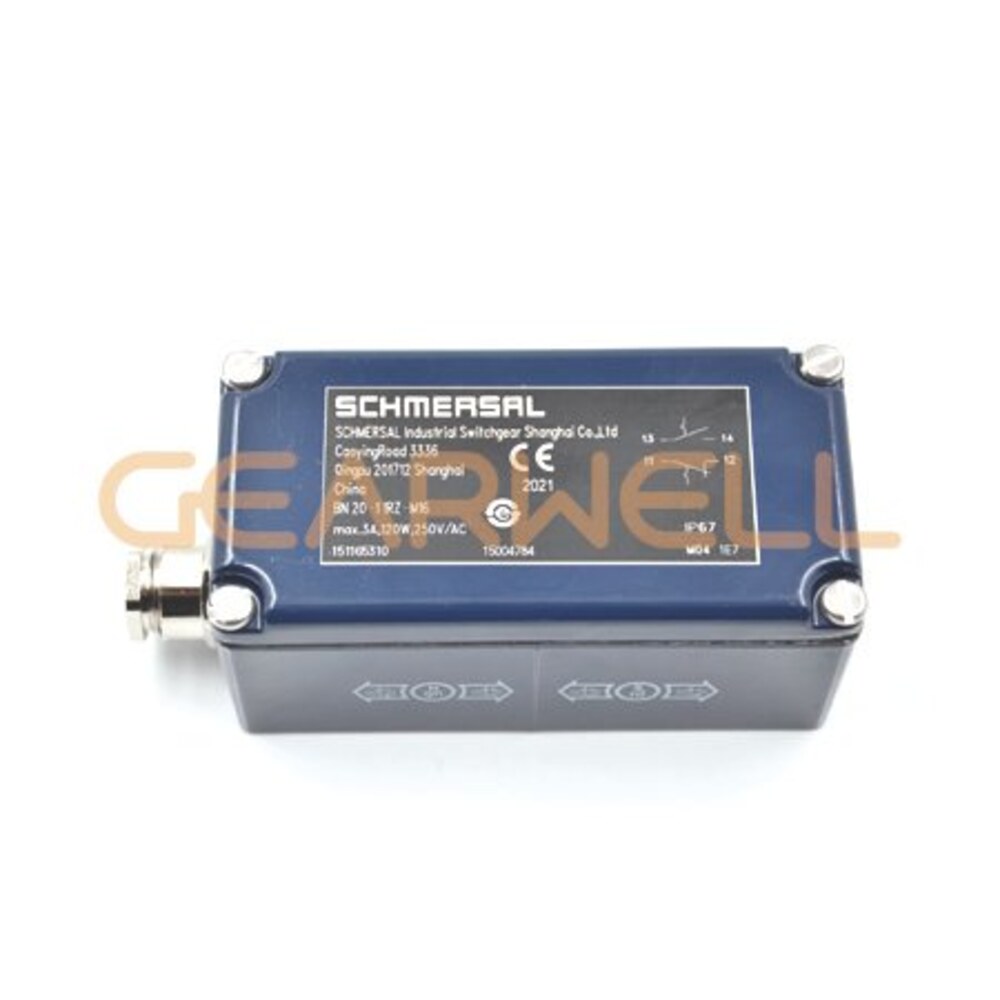

SCHMERSAL BN20-11RZ-M16 Magnetic Reed Switch
- Brand
- SCHMERSAL
- Model
- BN20-11RZ-M16
- GEARWELL SKU
- GWP-000001486
- Category
- Sensors & Instrumentation
Key specifications
- Contacts
- 2 reed contacts, 1 NO and 1 NC
- Dimensions
- 104 × 52 × 47 mm
- Product type
- Non-contact magnetic reed switch
- Maximum switching current
- 3 A
- Maximum switching voltage
- 250 VAC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SCHMERSAL BN20-11RZ-M16 Magnetic Reed Switch |
|---|---|
| Brand | SCHMERSAL |
| Model | BN20-11RZ-M16 |
| Category | Sensors & Instrumentation |
| Contacts | 2 reed contacts, 1 NO and 1 NC |
| Dimensions | 104 × 52 × 47 mm |
| Product type | Non-contact magnetic reed switch |
| Maximum switching current | 3 A |
| Maximum switching voltage | 250 VAC |
| Actuating distance | Up to 50 mm, magnet-dependent |
| Switching principle | Latching |
| Degree of protection | IP67 |
