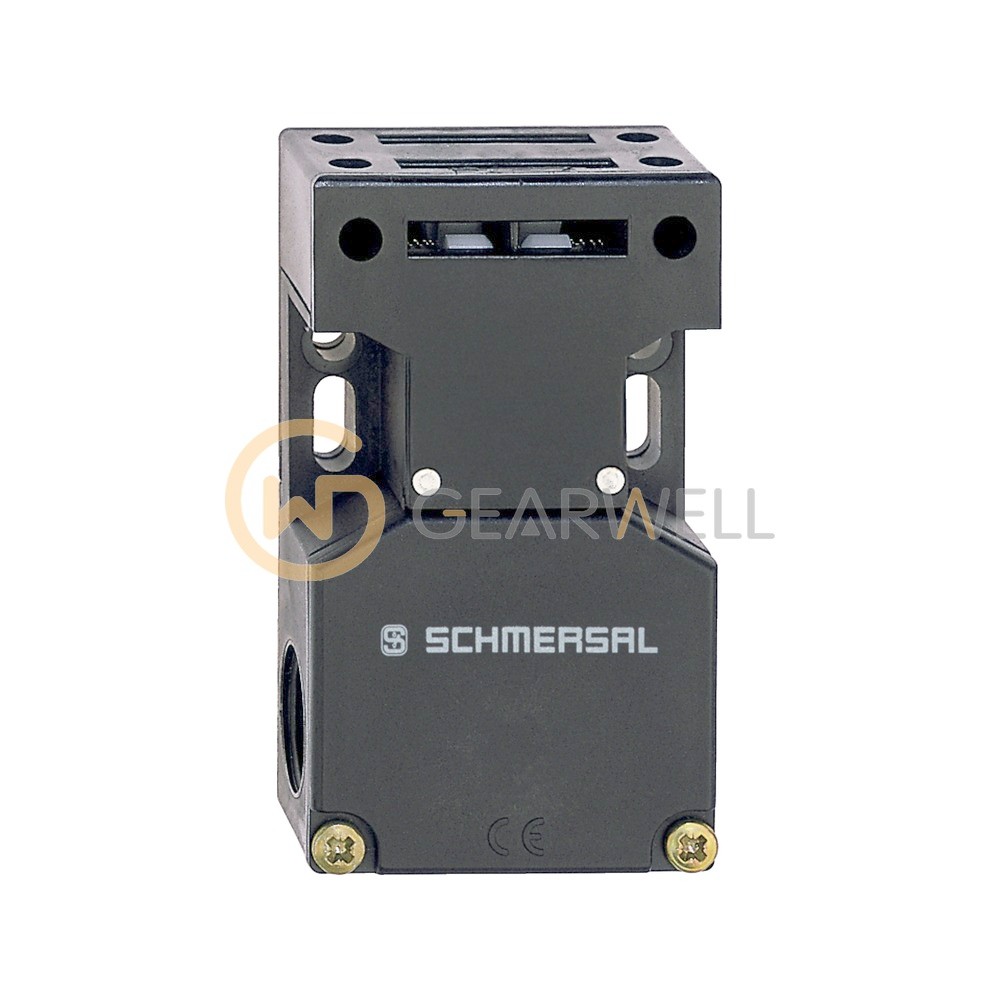

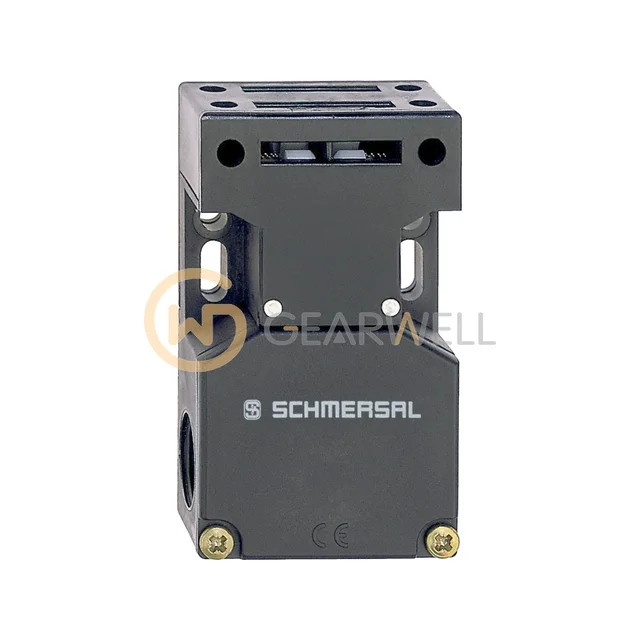

Schmersal AZ 16-02ZVRK AZ 16 Safety Switch with Separate Actuator
- Brand
- SCHMERSAL
- Model
- AZ 16-02ZVRK
- GEARWELL SKU
- GWP-000012161
- Category
- Machine Safety & Vision
Key specifications
- Actuator
- Ordered separately
- Dimensions
- 52 x 90 x 30 mm
- Housing material
- Glass-fibre reinforced thermoplastic, self-extinguishing
- Switching element
- 2 NC, slow action, positive break
- Ambient temperature
- -30 ... +80 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schmersal AZ 16-02ZVRK AZ 16 Safety Switch with Separate Actuator |
|---|---|
| Brand | SCHMERSAL |
| Model | AZ 16-02ZVRK |
| Category | Machine Safety & Vision |
| Actuator | Ordered separately |
| Dimensions | 52 x 90 x 30 mm |
| Housing material | Glass-fibre reinforced thermoplastic, self-extinguishing |
| Switching element | 2 NC, slow action, positive break |
| Ambient temperature | -30 ... +80 °C |
| Cable entry options | -M16 / -M20 (3 x M20 x 1.5) / -ST (connector) (specify on order) |
| Actuating directions | 3 |
| Degree of protection | IP67 |
| Utilisation category AC-15 | 230 V / 4 A |
