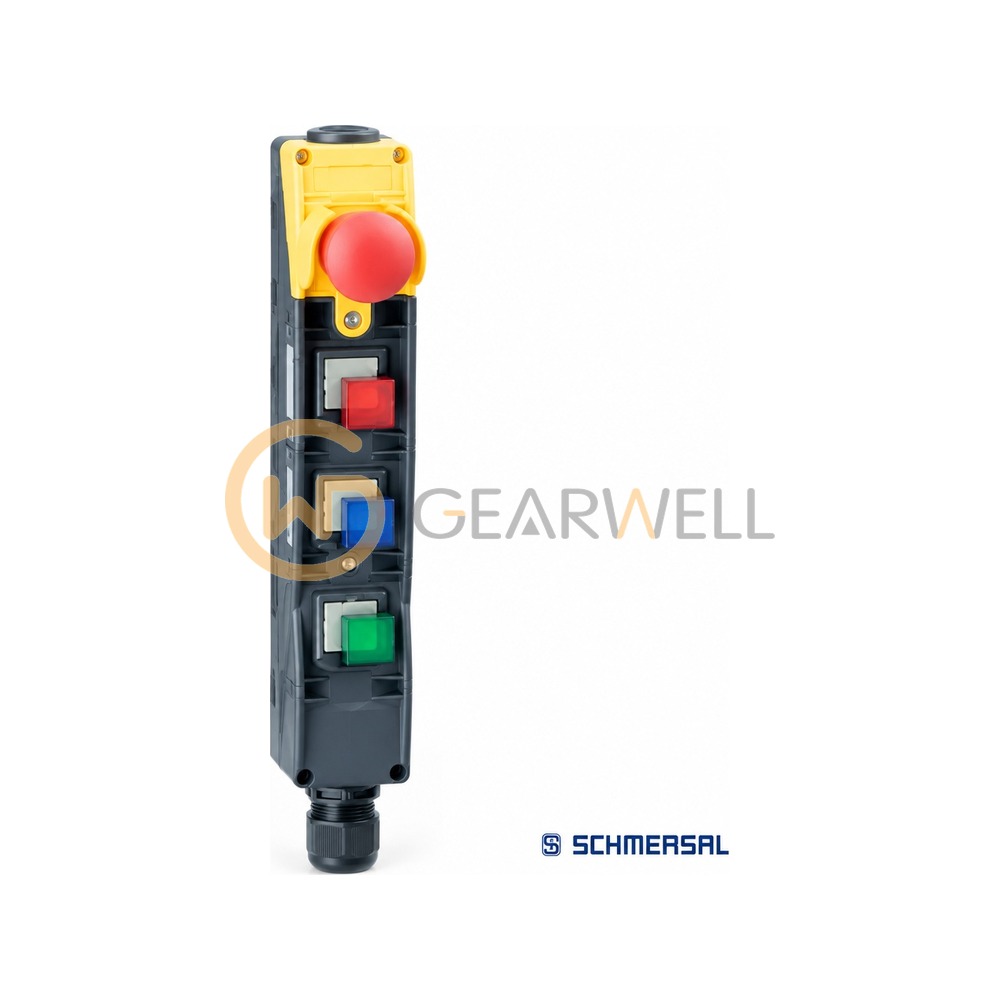

SCHMERSAL 103007785 BDF200-NHK-11-LT-LT-LT-2875 Control Panel E-Stop
- Brand
- SCHMERSAL
- Model
- 103007785
- GEARWELL SKU
- GWP-000036805
- Category
- Machine Safety & Vision
Key specifications
- Positions
- E-stop with collar + 3 illuminated pushbuttons
- Gross weight
- 280 g
- Type designation
- BDF200-NHK-11-LT-LT-LT-2875
- Ambient temperature
- -25 ... +65 C
- Degree of protection
- IP65
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SCHMERSAL 103007785 BDF200-NHK-11-LT-LT-LT-2875 Control Panel E-Stop |
|---|---|
| Brand | SCHMERSAL |
| Model | 103007785 |
| Category | Machine Safety & Vision |
| Positions | E-stop with collar + 3 illuminated pushbuttons |
| Gross weight | 280 g |
| Type designation | BDF200-NHK-11-LT-LT-LT-2875 |
| Ambient temperature | -25 ... +65 C |
| Degree of protection | IP65 |
| Housing width x height | 40 x 69 mm |
| Rated operating voltage | 24 V DC |
| Rated insulation voltage | 250 V AC |
| Utilisation category DC-13 | 24 V DC / 1 A |
