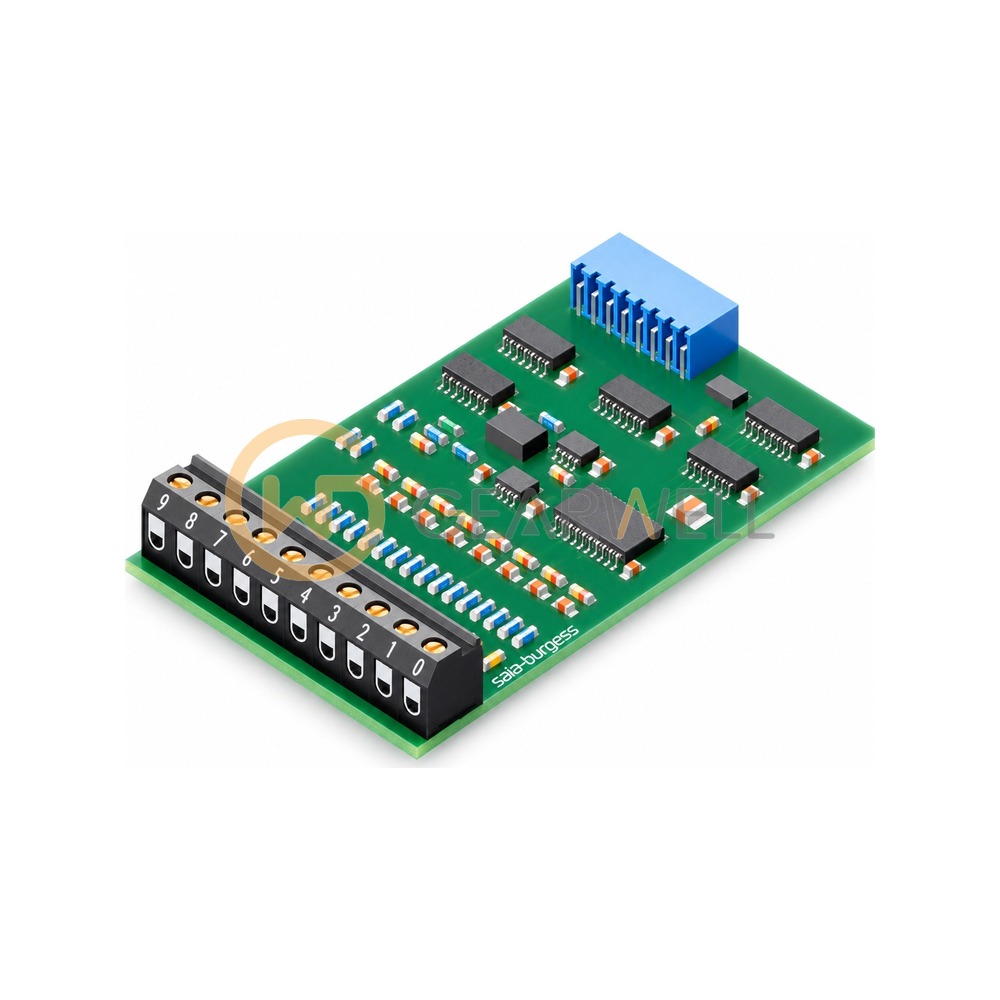

Saia-Burgess PCD2.W200 Saia PCD2 Analog Input Module
- Brand
- Saia-Burgess
- Model
- PCD2.W200
- GEARWELL SKU
- GWP-000034869
- Category
- PLCs & I/O
Key specifications
- Inputs
- 8 channels
- Accuracy
- ±3 LSB
- Evidence
- Saia-Burgess Controls data sheet 31-527 ENG02 PCD2.W200 (sbc-support.com)
- Resolution
- 10 bit (0 to 1023), 9.775 mV per bit
- Seller code
- 52030C10 PCD2.W200 (prefix '52030C10' as collected; not an SBC type or order code)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Saia-Burgess PCD2.W200 Saia PCD2 Analog Input Module |
|---|---|
| Brand | Saia-Burgess |
| Model | PCD2.W200 |
| Category | PLCs & I/O |
| Inputs | 8 channels |
| Accuracy | ±3 LSB |
| Evidence | Saia-Burgess Controls data sheet 31-527 ENG02 PCD2.W200 (sbc-support.com) |
| Resolution | 10 bit (0 to 1023), 9.775 mV per bit |
| Seller code | 52030C10 PCD2.W200 (prefix '52030C10' as collected; not an SBC type or order code) |
| Signal range | 0 to 10 V |
| Conversion time | ≤ 50 µs |
| Input resistance | 200 kΩ |
| Galvanic separation | No; single-ended |
| Overvoltage protection | ±50 VDC |
| Internal current consumption | 8 mA (+5 V bus), 5 mA (V+ bus) |
