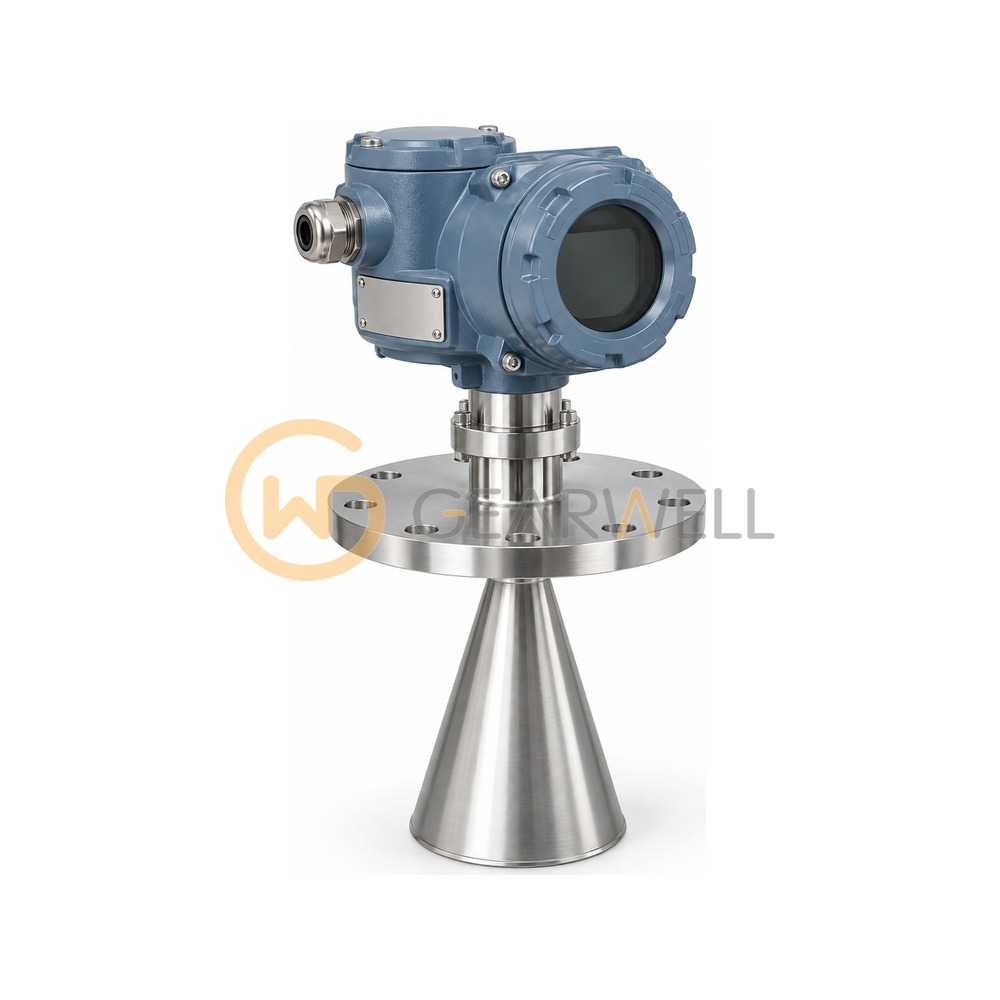

Rosemount 5401AH1NA4SPVBWBRAQ4 5401 Radar Level Transmitter
- Brand
- Rosemount
- Model
- 5401AH1NA4SPVBWBRAQ4
- GEARWELL SKU
- GWP-000013378
- Category
- Pressure, Flow & Temperature
Key specifications
- Antenna (4S)
- Cone, 4 in. DN 100, 316L SST
- Model (5401)
- Low frequency version (~6 GHz)
- Signal output (H)
- 4-20 mA with HART communication
- Housing material (A)
- Polyurethane-covered aluminium
- Code segment "BWBRAQ4"
- as collected; not matched to the process connection/option codes of the 5401 ordering table (rev. NB)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Rosemount 5401AH1NA4SPVBWBRAQ4 5401 Radar Level Transmitter |
|---|---|
| Brand | Rosemount |
| Model | 5401AH1NA4SPVBWBRAQ4 |
| Category | Pressure, Flow & Temperature |
| Antenna (4S) | Cone, 4 in. DN 100, 316L SST |
| Model (5401) | Low frequency version (~6 GHz) |
| Signal output (H) | 4-20 mA with HART communication |
| Housing material (A) | Polyurethane-covered aluminium |
| Code segment "BWBRAQ4" | as collected; not matched to the process connection/option codes of the 5401 ordering table (rev. NB) |
| Tank sealing, O-ring (PV) | Viton fluoroelastomer |
| Conduit/cable threads (1) | 1/2 in. - 14 NPT |
| Product certifications (NA) | No product certificates |
