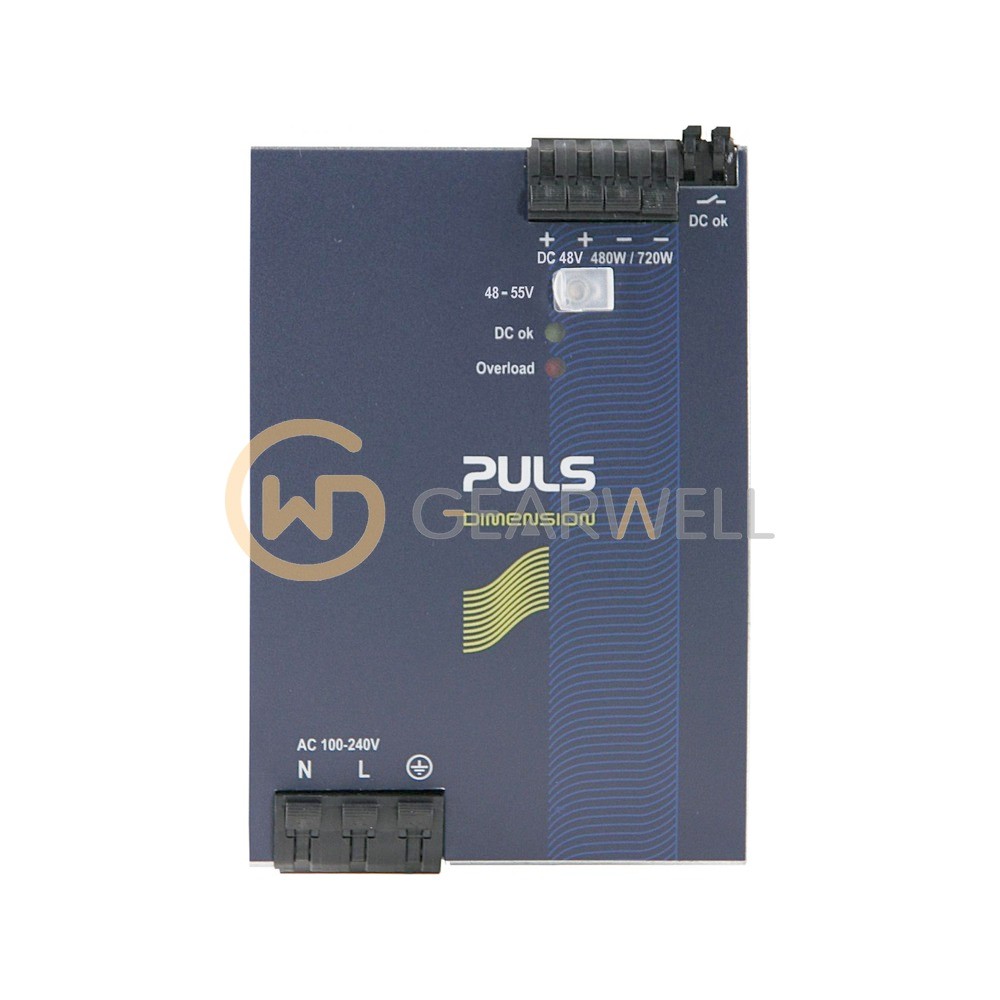

PULS QS20.481 48 V 10 A 480 W 1-Phase DIN Rail Power Supply
- Brand
- PULS
- Model
- QS20.481
- GEARWELL SKU
- GWP-000009954
- Category
- Power Supplies
Key specifications
- Weight
- 1200 g
- Output power
- 480 W
- Efficiency (typ.)
- 94.3 %
- Output current
- 10 A at 48 V / 8.7 A at 55 V
- AC input voltage
- 100-240 (±15 %) V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PULS QS20.481 48 V 10 A 480 W 1-Phase DIN Rail Power Supply |
|---|---|
| Brand | PULS |
| Model | QS20.481 |
| Category | Power Supplies |
| Weight | 1200 g |
| Output power | 480 W |
| Efficiency (typ.) | 94.3 % |
| Output current | 10 A at 48 V / 8.7 A at 55 V |
| AC input voltage | 100-240 (±15 %) V AC |
| Dimensions (W x H x D) | 82 x 124 x 127 mm |
| Nominal output voltage | 48 V DC |
| Output voltage adjustment range | 48-55 V |
