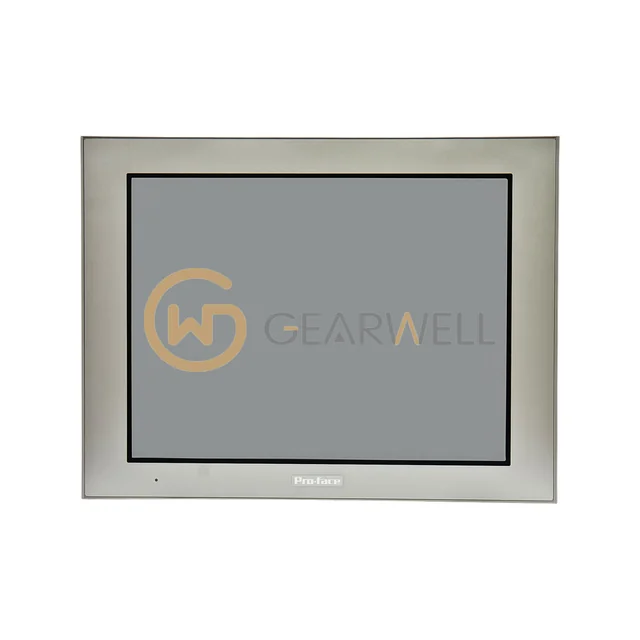

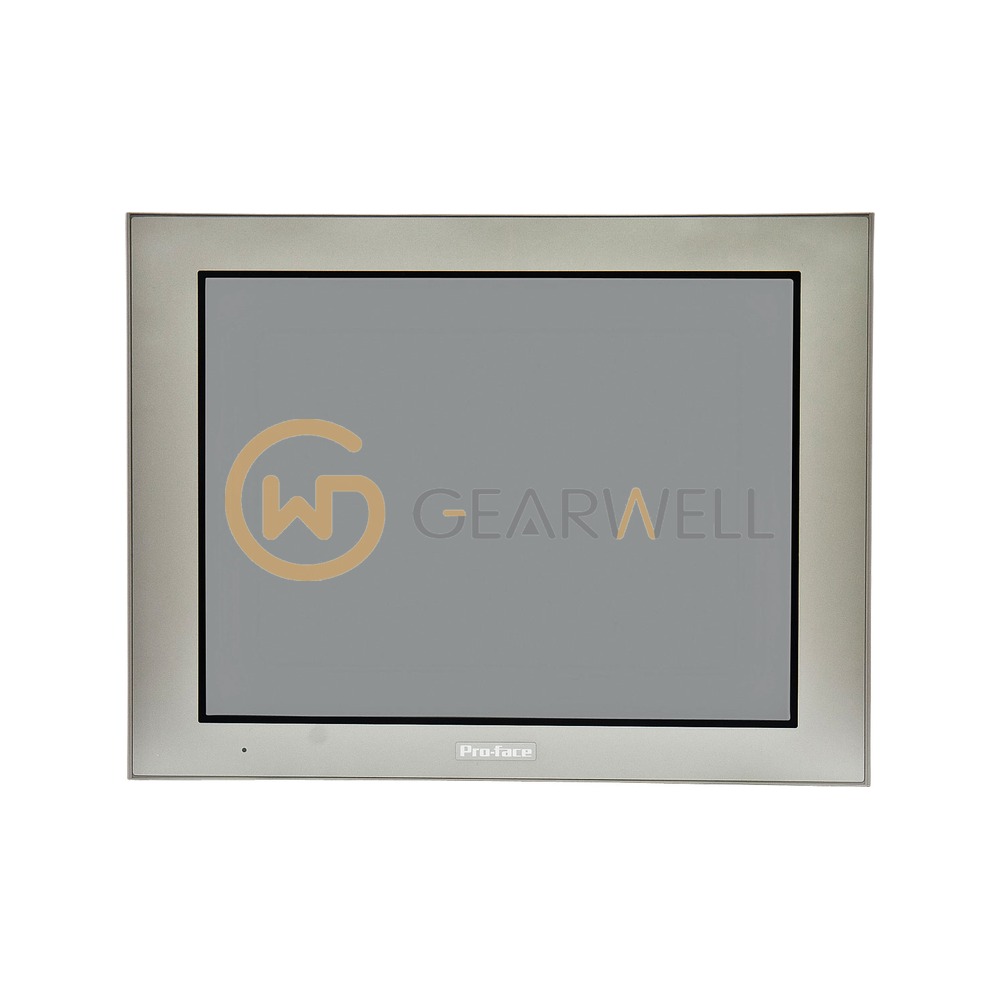

Pro-face PFXGP4601TMA GP-4601T GP4000 Series HMI Touch Panel
- Brand
- Pro-face
- Model
- PFXGP4601TMA
- GEARWELL SKU
- GWP-000007785
- Category
- HMIs & Industrial PCs
Key specifications
- Display
- 12.1" TFT color LCD
- Resolution
- 800 x 600 pixels (SVGA)
- Front protection
- IP65F, NEMA #250 Type 4X/13 (front, installed in enclosure)
- Touch panel type
- Resistive film (matrix)
- External dimensions
- W315 x H241 x D56 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pro-face PFXGP4601TMA GP-4601T GP4000 Series HMI Touch Panel |
|---|---|
| Brand | Pro-face |
| Model | PFXGP4601TMA |
| Category | HMIs & Industrial PCs |
| Display | 12.1" TFT color LCD |
| Resolution | 800 x 600 pixels (SVGA) |
| Front protection | IP65F, NEMA #250 Type 4X/13 (front, installed in enclosure) |
| Touch panel type | Resistive film (matrix) |
| External dimensions | W315 x H241 x D56 mm |
| Rated input voltage | AC 100 to 240 V |
| Panel cut dimensions | W301.5 x H227.5 mm |
