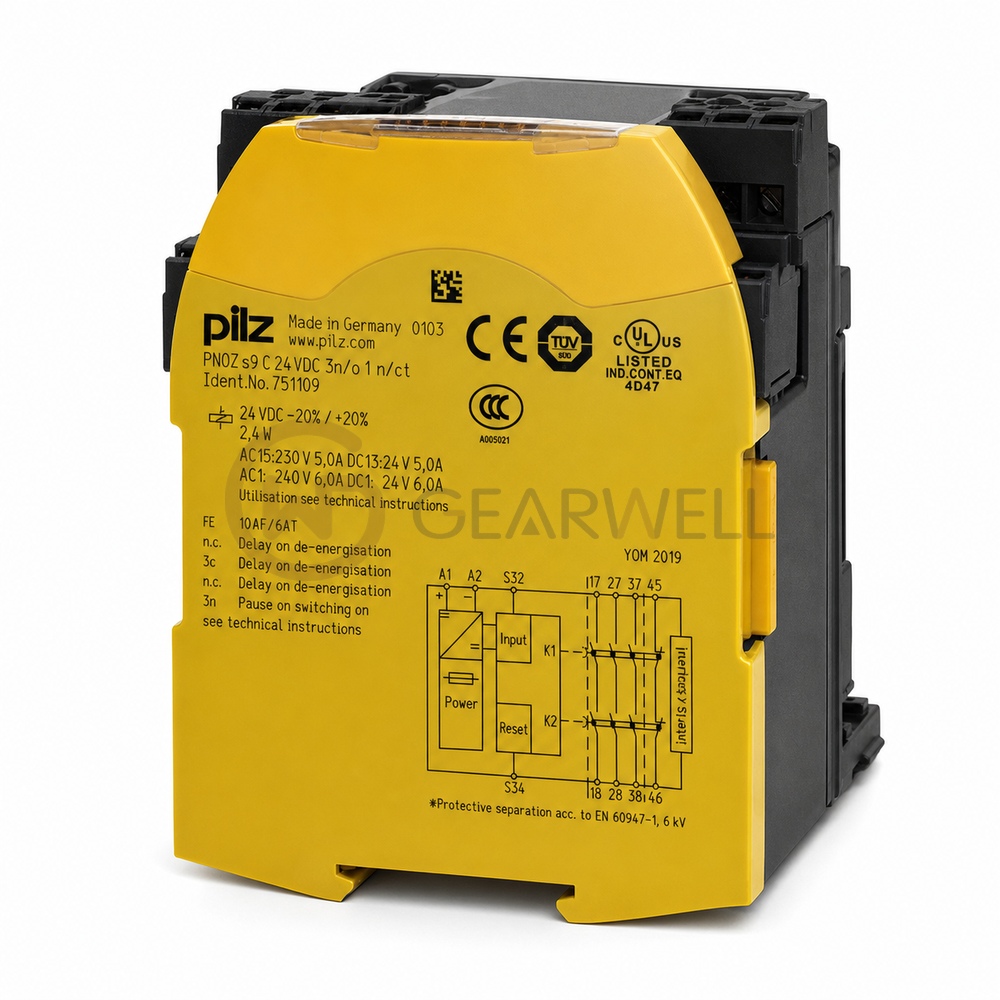

PILZ 751109 Safety relay
- Brand
- PILZ
- Model
- 751109
- GEARWELL SKU
- GWP-000003712
- Category
- Industrial Automation Parts
Key specifications
- Dimensions (H × W × D)
- 100 × 17.5 × 120 mm
- Supply voltage
- 24 V DC
- Max. current AC1 safety contact
- 6 A
- Selectable delay time
- 0.04–300 s
- Power consumption
- 2 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PILZ 751109 Safety relay |
|---|---|
| Brand | PILZ |
| Model | 751109 |
| Category | Industrial Automation Parts |
| Dimensions (H × W × D) | 100 × 17.5 × 120 mm |
| Supply voltage | 24 V DC |
| Max. current AC1 safety contact | 6 A |
| Selectable delay time | 0.04–300 s |
| Power consumption | 2 W |
| Connection terminal | Plug-in spring-loaded terminal |
| Degree of protection | IP40 |
| Contact configuration | 3 N/O, 1 N/C |
