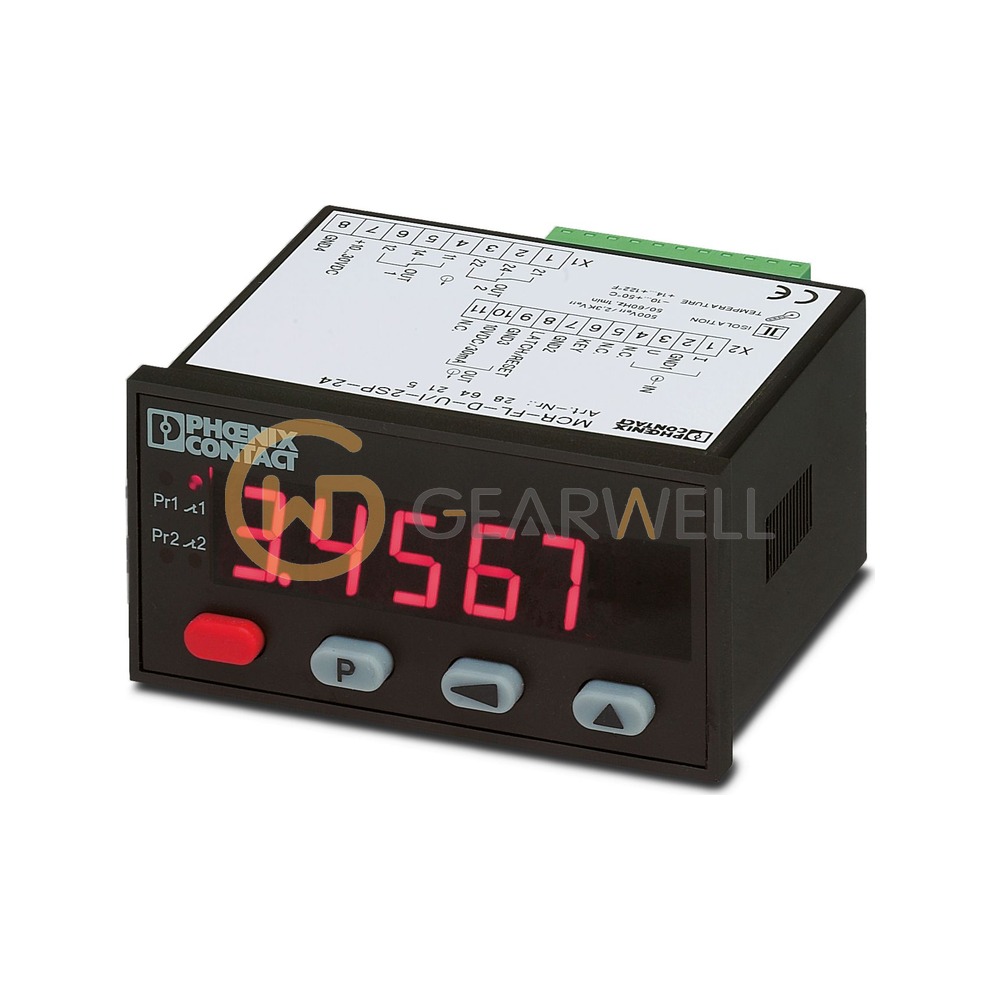

Phoenix Contact MCR-FL-D-U-I-2SP- 24 Digital Display
- Brand
- Phoenix Contact
- Model
- MCR-FL-D-U-I-2SP- 24
- GEARWELL SKU
- GWP-000017039
- Category
- Test & Measurement
Key specifications
- Order number
- 2864215
- Relay outputs
- 2 changeover contacts
- Type designation
- MCR-FL-D-U-I-2SP- 24
- Connection method
- Pluggable screw connection
- Power consumption
- max. 2 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact MCR-FL-D-U-I-2SP- 24 Digital Display |
|---|---|
| Brand | Phoenix Contact |
| Model | MCR-FL-D-U-I-2SP- 24 |
| Category | Test & Measurement |
| Order number | 2864215 |
| Relay outputs | 2 changeover contacts |
| Type designation | MCR-FL-D-U-I-2SP- 24 |
| Connection method | Pluggable screw connection |
| Power consumption | max. 2 W |
| Current input signal | 0 mA ... 20 mA / 4 mA ... 20 mA |
| Supply voltage range | 10 V DC ... 30 V DC |
| Voltage input signal | 0 V ... 10 V / -10 V ... 10 V |
| Max. switching voltage / current | 250 V AC, 300 V DC / 3 A |
