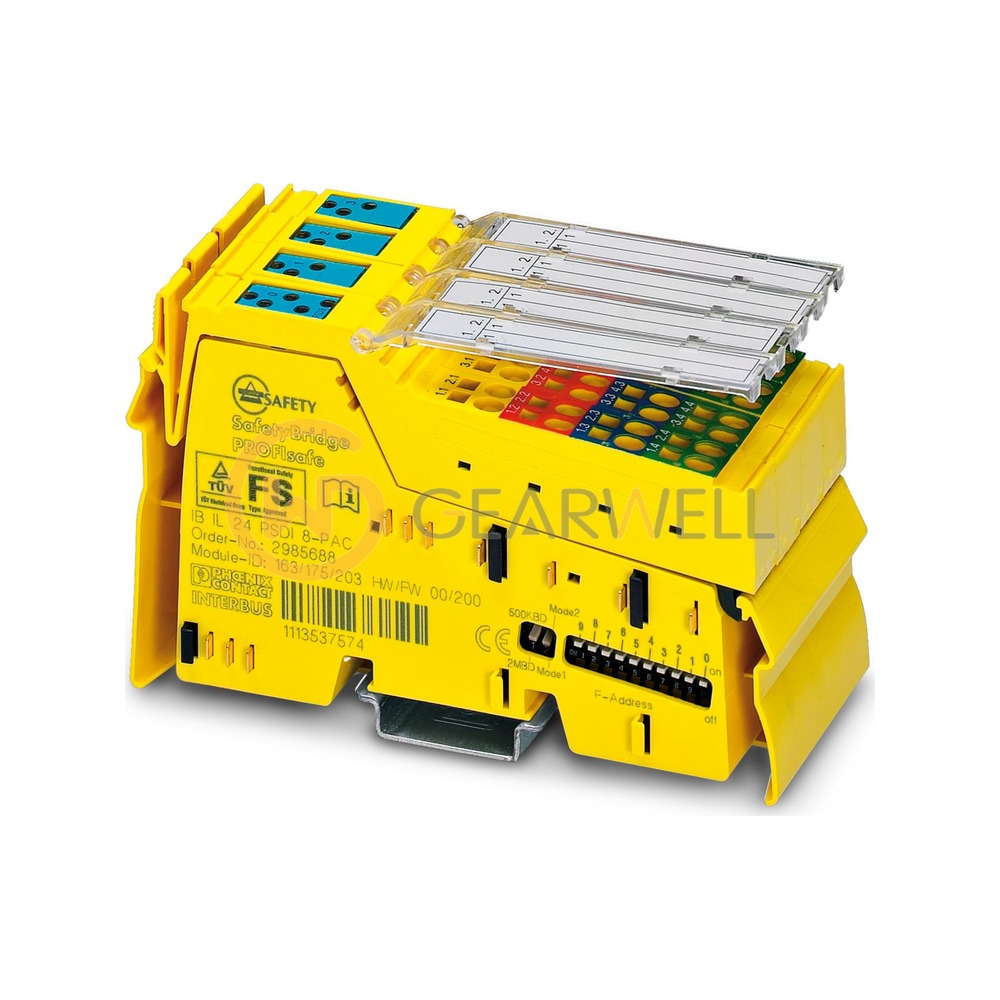

Phoenix Contact 2985688 IB IL 24 PSDI 8-PAC Safety Input Module
- Brand
- Phoenix Contact
- Model
- 2985688
- GEARWELL SKU
- GWP-000009949
- Category
- PLCs & I/O
Key specifications
- Housing color
- yellow (RAL 1018)
- Input voltage
- 24 V DC (via clock outputs UT1 and UT2 or external supply)
- Number of inputs
- 4 (2-channel assignment) / 8 (1-channel assignment)
- Connection method
- Spring-cage connection
- Transmission speed
- 500 kbps / 2 Mbps (switchable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2985688 IB IL 24 PSDI 8-PAC Safety Input Module |
|---|---|
| Brand | Phoenix Contact |
| Model | 2985688 |
| Category | PLCs & I/O |
| Housing color | yellow (RAL 1018) |
| Input voltage | 24 V DC (via clock outputs UT1 and UT2 or external supply) |
| Number of inputs | 4 (2-channel assignment) / 8 (1-channel assignment) |
| Connection method | Spring-cage connection |
| Transmission speed | 500 kbps / 2 Mbps (switchable) |
| Dimensions (W x H x D) | 48.8 x 119.8 x 71.5 mm |
| Supply voltage range (UM) | 19.2 ... 30 V DC |
| Communications power current draw (UL) | max. 180 mA |
