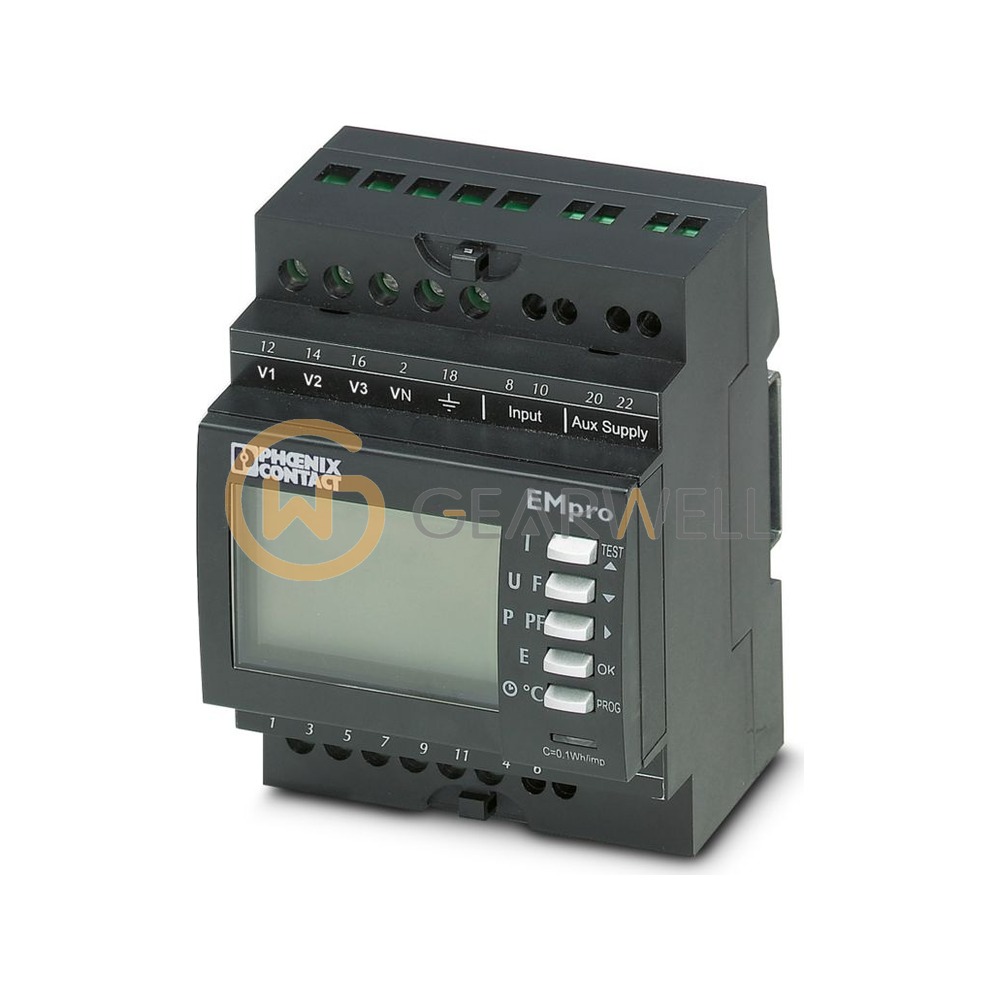

Phoenix Contact 2901363 EEM-MA250 EMpro Energy Measuring Device
- Brand
- Phoenix Contact
- Model
- 2901363
- GEARWELL SKU
- GWP-000014154
- Category
- Test & Measurement
Key specifications
- Item number
- 2901363
- Current input
- 5 A secondary via external transformers (up to 9999 A primary)
- Type designation
- EEM-MA250
- Voltage precision
- 0.2 %
- Measuring principle
- True r.m.s. value measurement
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2901363 EEM-MA250 EMpro Energy Measuring Device |
|---|---|
| Brand | Phoenix Contact |
| Model | 2901363 |
| Category | Test & Measurement |
| Item number | 2901363 |
| Current input | 5 A secondary via external transformers (up to 9999 A primary) |
| Type designation | EEM-MA250 |
| Voltage precision | 0.2 % |
| Measuring principle | True r.m.s. value measurement |
| Voltage input range | 50 ... 519 V AC (phase/phase); 28 ... 300 V AC (phase/neutral) |
| Supply voltage range | 110 ... 277 V AC -10 % ... +15 % |
| Harmonics acquisition | up to 51st harmonic |
| Rated insulation voltage | 300 V AC (EN 61010-1) |
| Nominal power consumption | 5 VA |
