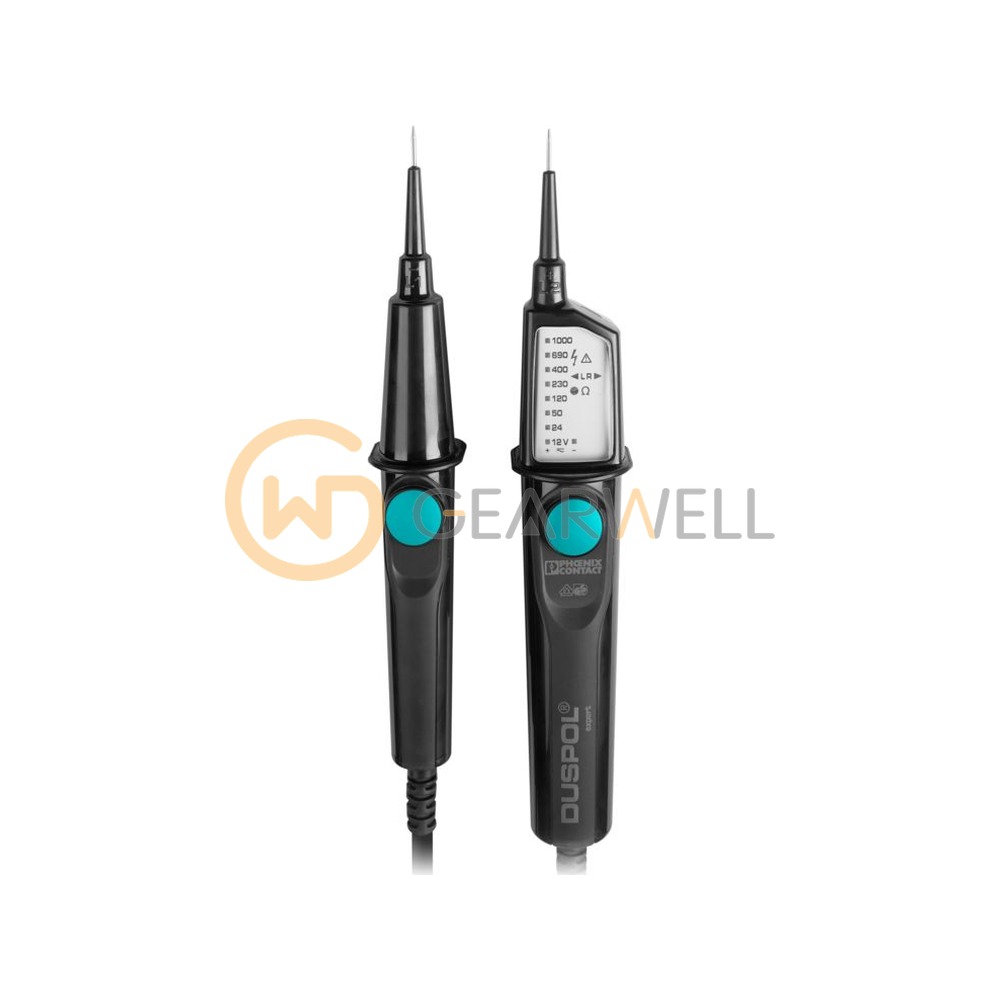

Phoenix Contact 1209091 DUSPOL EXPERT Two-pole Voltage Tester
- Brand
- Phoenix Contact
- Model
- 1209091
- GEARWELL SKU
- GWP-000014153
- Category
- Test & Measurement
Key specifications
- Display
- LED steps 12/24/50/120/230/400/690/1000 V, LCD phase/rotating-field symbol
- Standard
- EN/IEC 61243-3
- Item number
- 1209091
- Power supply
- 2 x 1.5 V micro battery LR03 (AAA)
- Type designation
- DUSPOL EXPERT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 1209091 DUSPOL EXPERT Two-pole Voltage Tester |
|---|---|
| Brand | Phoenix Contact |
| Model | 1209091 |
| Category | Test & Measurement |
| Display | LED steps 12/24/50/120/230/400/690/1000 V, LCD phase/rotating-field symbol |
| Standard | EN/IEC 61243-3 |
| Item number | 1209091 |
| Power supply | 2 x 1.5 V micro battery LR03 (AAA) |
| Type designation | DUSPOL EXPERT |
| Measuring category | CAT IV 600 V / CAT III 1000 V |
| Degree of protection | IP65 |
| Input voltage range AC | 12 ... 1000 V AC |
| Input voltage range DC | 12 ... 1000 V DC |
| Ambient temperature (operation) | -10 ... 55 掳C |
