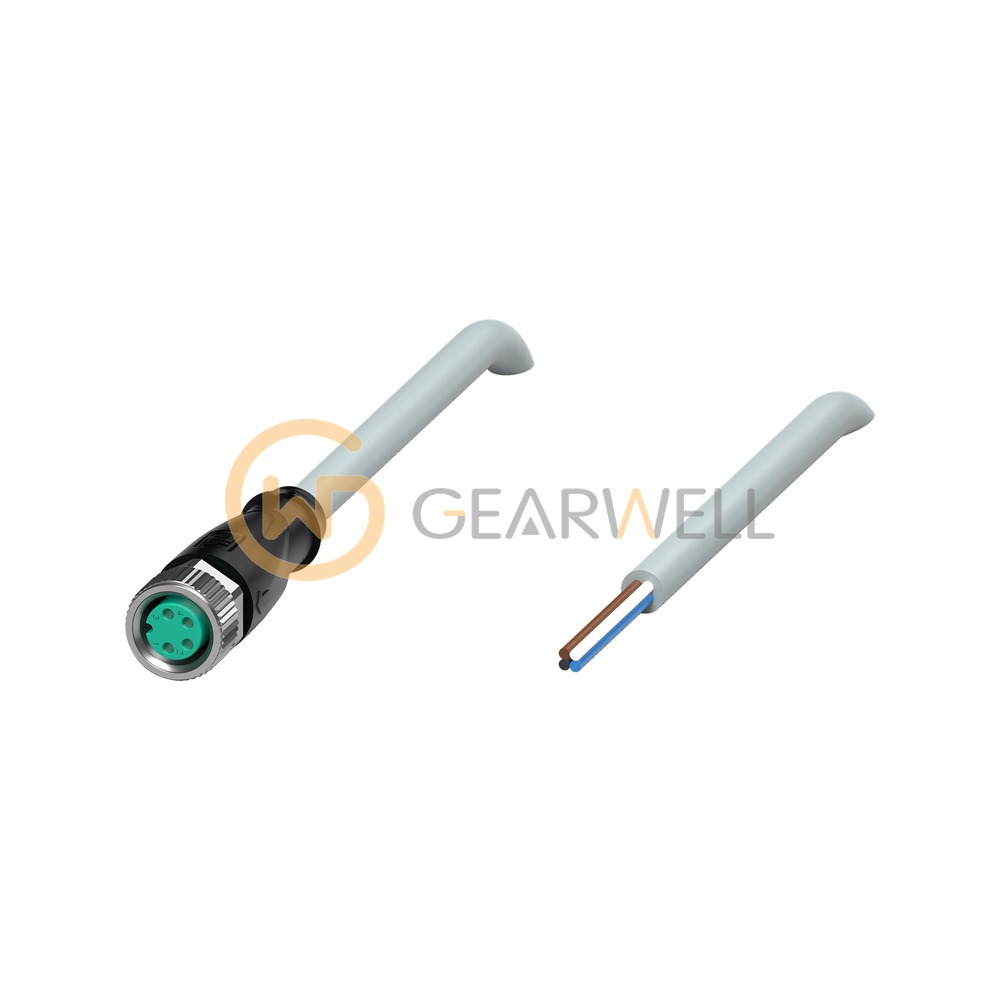

Pepperl+Fuchs V31-GM-2M-PVC M8 Female Sensor Cordset
- Brand
- Pepperl+Fuchs
- Model
- V31-GM-2M-PVC
- GEARWELL SKU
- GWP-000014059
- Category
- Terminals, Cables & Connectors
Key specifications
- Connector 1
- M8 socket, straight, 4-pin, A-coded
- Connector 2
- open cable end
- Part number
- 109029
- Cable length
- 2 m
- Cable sheath
- PVC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs V31-GM-2M-PVC M8 Female Sensor Cordset |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | V31-GM-2M-PVC |
| Category | Terminals, Cables & Connectors |
| Connector 1 | M8 socket, straight, 4-pin, A-coded |
| Connector 2 | open cable end |
| Part number | 109029 |
| Cable length | 2 m |
| Cable sheath | PVC |
| Number of cores | 4 |
| Operating current | max. 4 A |
| Operating voltage | max. 30 V AC/DC |
| Core cross section | 0.25 mm² |
| Degree of protection | IP66 / IP68 |
