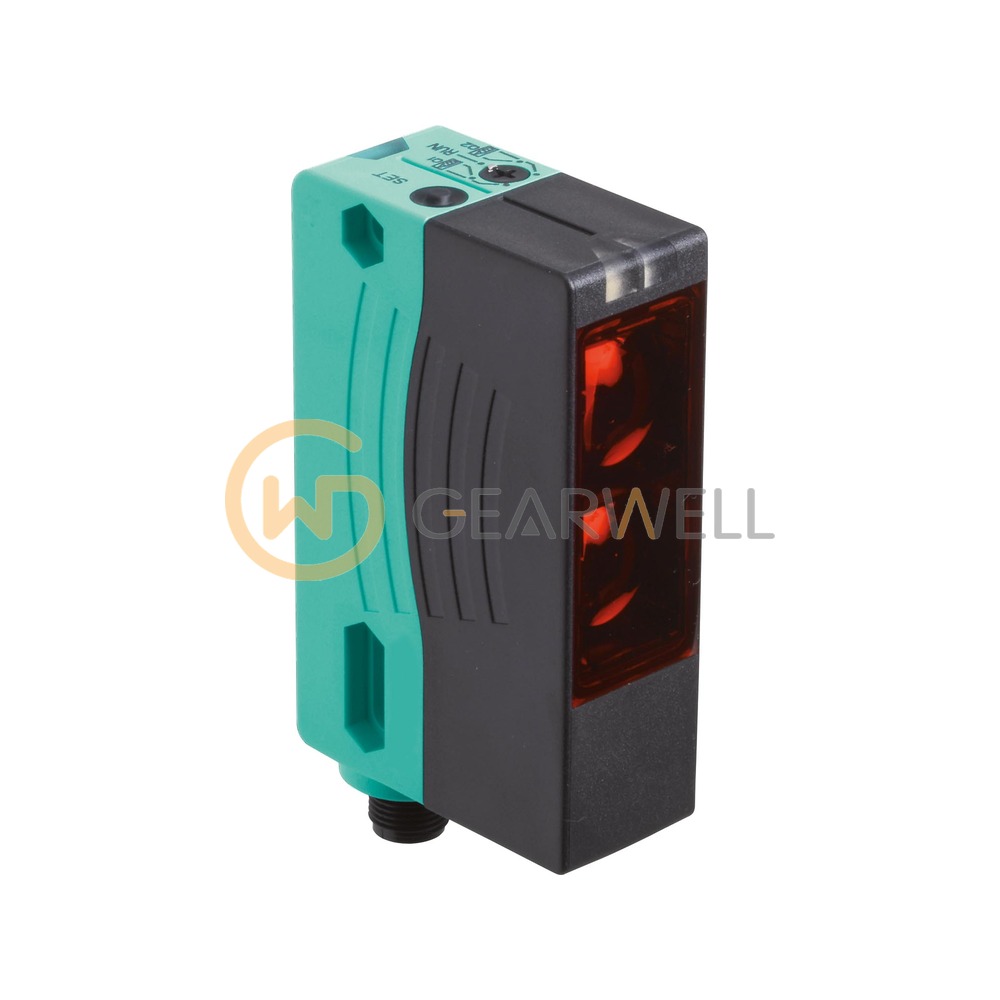

Pepperl+Fuchs OMD8000-R300-IEP-V1-L R300 Laser Distance Sensor
- Brand
- Pepperl+Fuchs
- Model
- OMD8000-R300-IEP-V1-L
- GEARWELL SKU
- GWP-000014047
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- plastic ABS
- Connection
- M12 x 1 connector, 4-pin
- Light type
- modulated visible red light, laser class 1M, 660 nm
- Item number
- 297735
- Analog output
- 4 ... 20 mA, Rmax = 470 Ω
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs OMD8000-R300-IEP-V1-L R300 Laser Distance Sensor |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | OMD8000-R300-IEP-V1-L |
| Category | Proximity & Photoelectric Sensors |
| Housing | plastic ABS |
| Connection | M12 x 1 connector, 4-pin |
| Light type | modulated visible red light, laser class 1M, 660 nm |
| Item number | 297735 |
| Analog output | 4 ... 20 mA, Rmax = 470 Ω |
| Response time | 5 ms |
| Detection range | 0.03 ... 8 m |
| Repeat accuracy | < 5 mm |
| Switching output | 1 push-pull (4 in 1), max. 100 mA |
| Operating voltage | 10 ... 30 V DC |
| Degree of protection | IP67 |
