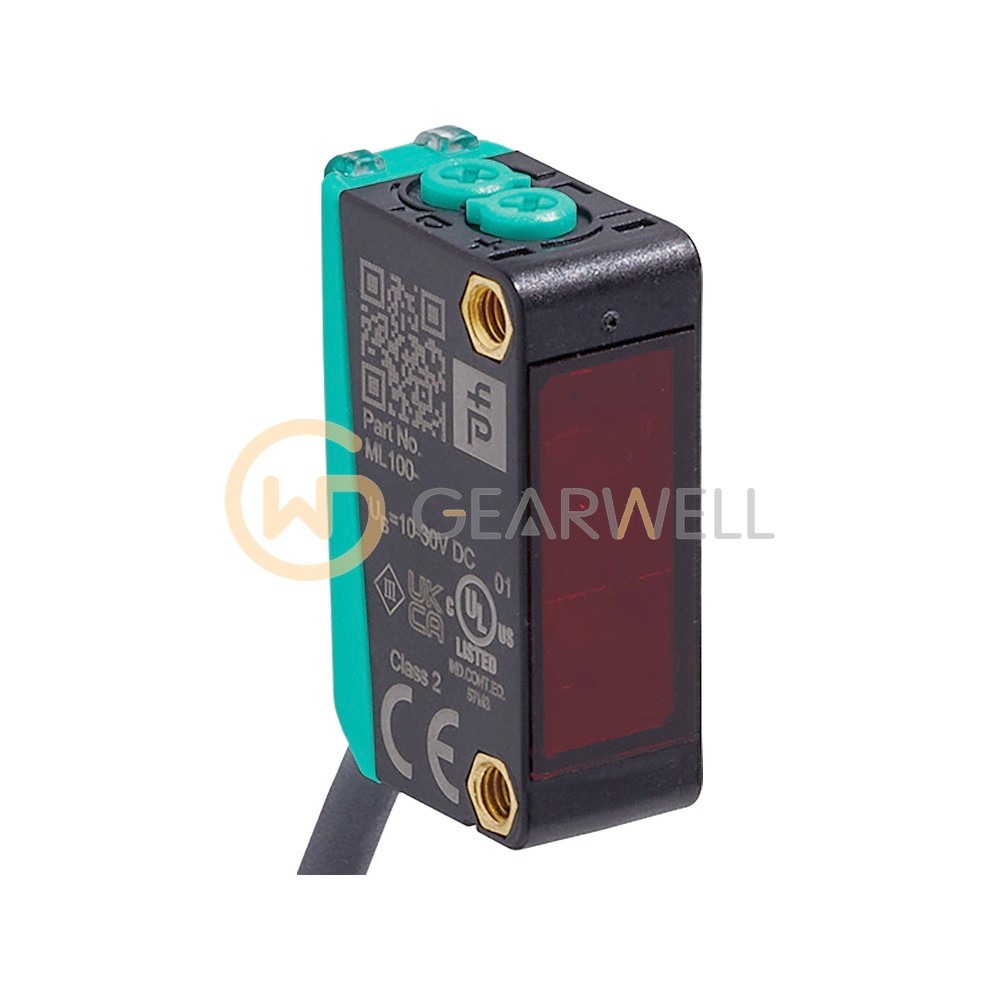

Pepperl+Fuchs ML100-8-1000-RT/102/115 ML100 Diffuse Mode Sensor
- Brand
- Pepperl+Fuchs
- Model
- ML100-8-1000-RT/102/115
- GEARWELL SKU
- GWP-000014039
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- PC (polycarbonate)
- Connection
- 2 m fixed cable
- Item number
- 210542
- Response time
- 0.5 ms
- Signal output
- 1 NPN output, short-circuit and reverse polarity protected
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs ML100-8-1000-RT/102/115 ML100 Diffuse Mode Sensor |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | ML100-8-1000-RT/102/115 |
| Category | Proximity & Photoelectric Sensors |
| Housing | PC (polycarbonate) |
| Connection | 2 m fixed cable |
| Item number | 210542 |
| Response time | 0.5 ms |
| Signal output | 1 NPN output, short-circuit and reverse polarity protected |
| Detection range | 0 ... 1000 mm |
| Adjustment range | 100 ... 1000 mm |
| Operating voltage | 10 ... 30 V DC |
| Switching frequency | 1000 Hz |
| Degree of protection | IP67 |
