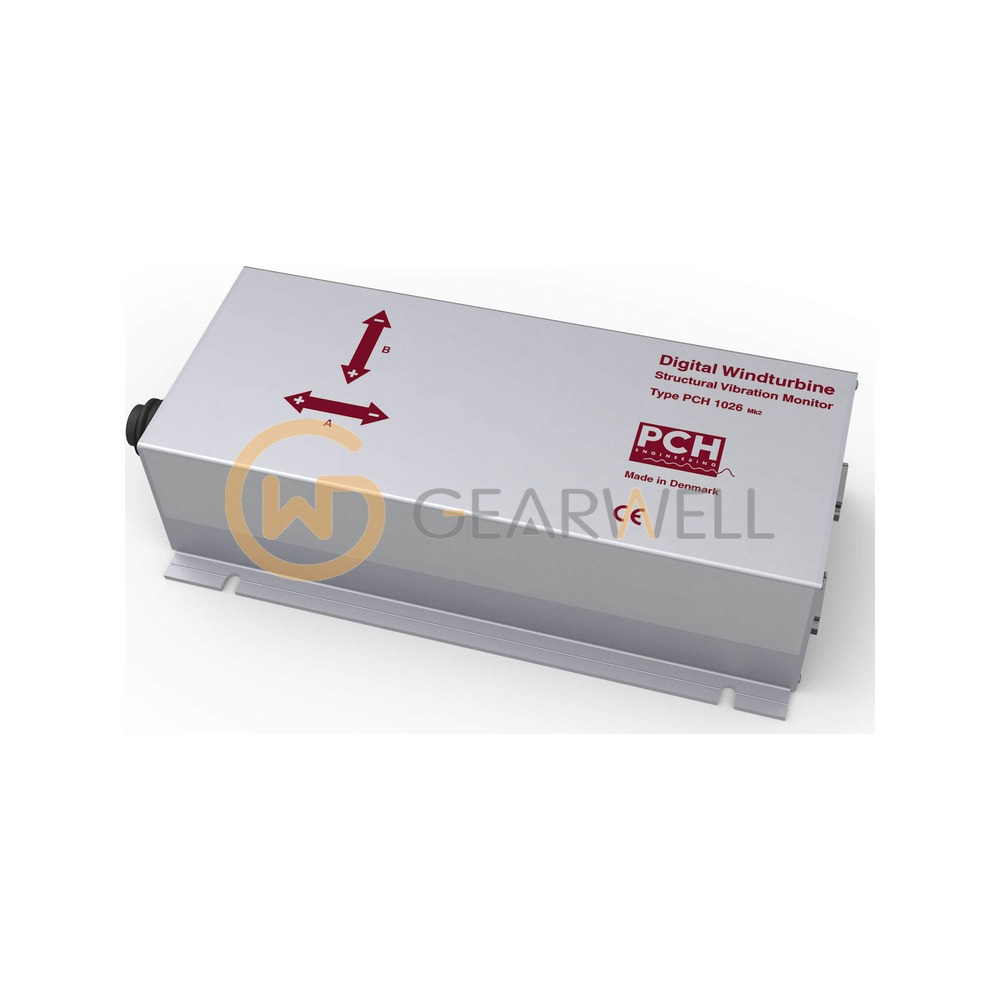

PCH Engineering PCH1026 Digital Wind Turbine Vibration Monitor
- Brand
- PCH Engineering
- Model
- PCH1026
- GEARWELL SKU
- GWP-000014715
- Category
- Test & Measurement
Key specifications
- Weight
- approx. 2 kg
- Enclosure
- IP54
- Brand note
- collected under brand GE; maker per official datasheet and product label is PCH Engineering (Denmark)
- Dimensions
- 254 x 130 x 66 mm
- Alarm relays
- Up to 4, Photomos solid state, 100 mA / 30 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PCH Engineering PCH1026 Digital Wind Turbine Vibration Monitor |
|---|---|
| Brand | PCH Engineering |
| Model | PCH1026 |
| Category | Test & Measurement |
| Weight | approx. 2 kg |
| Enclosure | IP54 |
| Brand note | collected under brand GE; maker per official datasheet and product label is PCH Engineering (Denmark) |
| Dimensions | 254 x 130 x 66 mm |
| Alarm relays | Up to 4, Photomos solid state, 100 mA / 30 V |
| Input sensors | Up to 3 internal and up to 4 external accelerometers |
| Analog outputs | Up to 4 x 4-20 mA |
| DC power supply | 20-30 V, max 7 W |
| Type designation | PCH 1026 Mk2 Digital Wind Turbine Monitor |
| Operating temperature | -20 to +50 (optional -30 to +60) °C |
