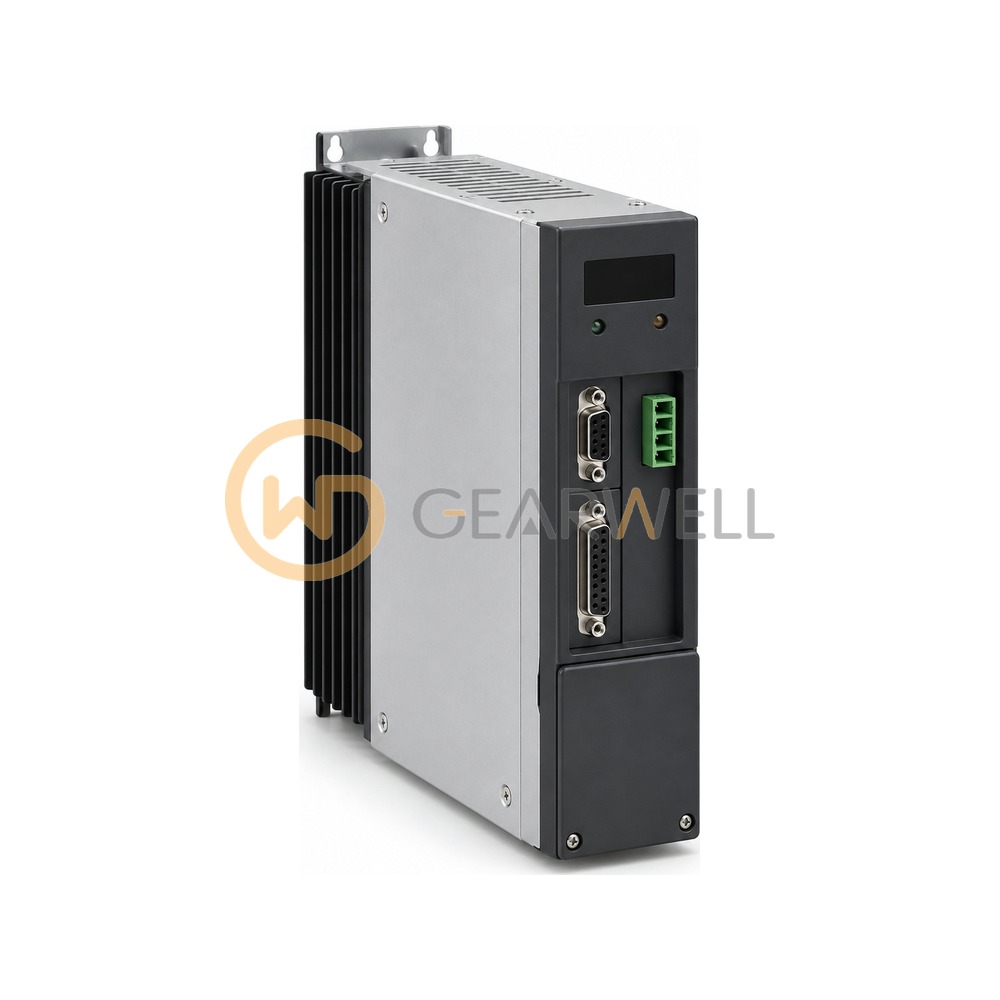

PARKER S150V4F12I12T11M12 Compax3S Servo Drive/Controller
- Brand
- PARKER
- Model
- S150V4F12I12T11M12
- GEARWELL SKU
- GWP-000016249
- Category
- Servo Systems
Key specifications
- Power
- 11.5 kVA
- Option
- M12 = extension by 12 digital I/Os
- Feedback
- F12 = encoder, sine/cosine with/without hall, EnDat
- Interface
- I12 = positioning via I/Os or RS232/RS485/USB
- Parker listing
- C3S150V4F12I12T11M12 (Compax3S series)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PARKER S150V4F12I12T11M12 Compax3S Servo Drive/Controller |
|---|---|
| Brand | PARKER |
| Model | S150V4F12I12T11M12 |
| Category | Servo Systems |
| Power | 11.5 kVA |
| Option | M12 = extension by 12 digital I/Os |
| Feedback | F12 = encoder, sine/cosine with/without hall, EnDat |
| Interface | I12 = positioning via I/Os or RS232/RS485/USB |
| Parker listing | C3S150V4F12I12T11M12 (Compax3S series) |
| Control voltage | 24 VDC +/-10% |
| Technology function | T11 = positioning |
| Device type / currents | S150V4 = single-axis, 15 A cont. / 30 A peak, 3 x 400/480 VAC |
