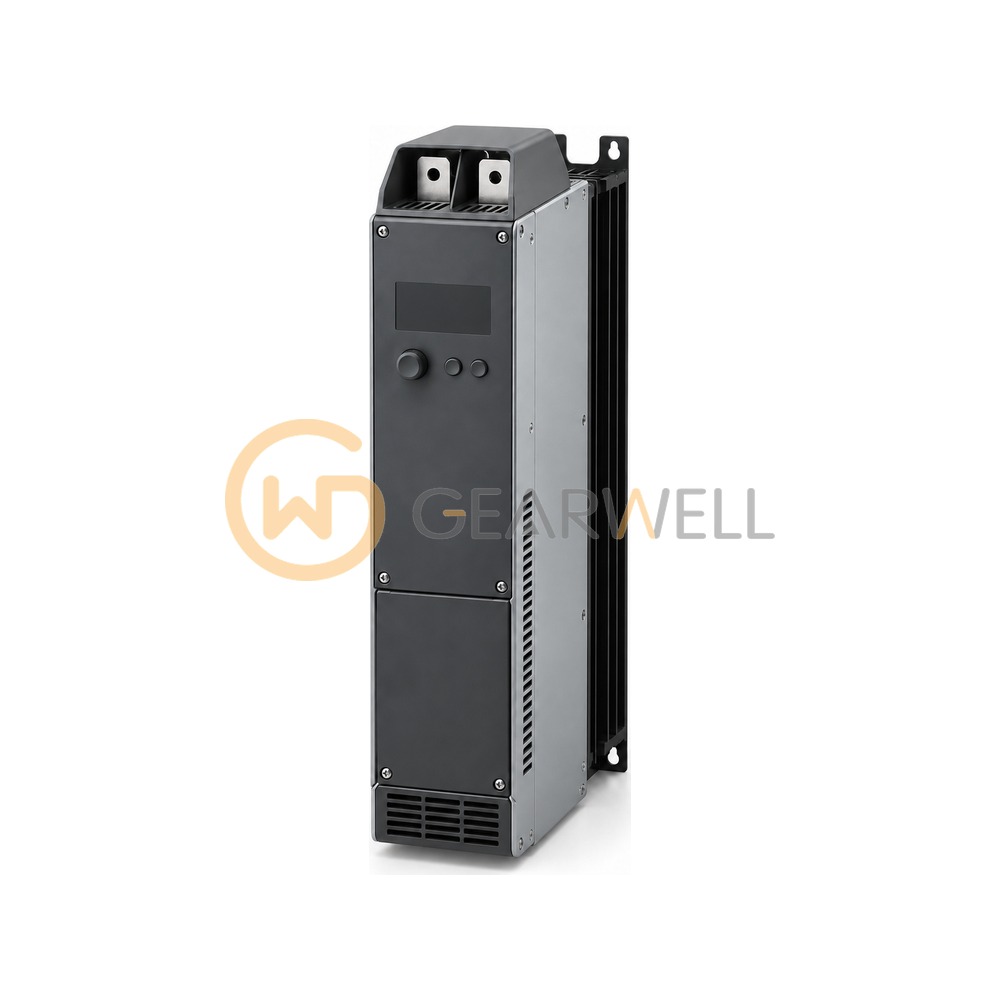

PARKER 890CD-53230SC0-000-1A000 AC890 Common Bus Drive
- Brand
- PARKER
- Model
- 890CD-53230SC0-000-1A000
- GEARWELL SKU
- GWP-000016240
- Category
- Variable Frequency Drives
Key specifications
- Supply
- 53 = 560/705 V DC
- Frame size
- C
- Motor power
- 15.0 kW
- Rating note
- 30% more peak current (230S rating)
- Brake switch
- 0 = not fitted (mandatory for 890CD)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PARKER 890CD-53230SC0-000-1A000 AC890 Common Bus Drive |
|---|---|
| Brand | PARKER |
| Model | 890CD-53230SC0-000-1A000 |
| Category | Variable Frequency Drives |
| Supply | 53 = 560/705 V DC |
| Frame size | C |
| Motor power | 15.0 kW |
| Rating note | 30% more peak current (230S rating) |
| Brake switch | 0 = not fitted (mandatory for 890CD) |
| Options F / A / B | 0 / 0 / 0 = none fitted |
| Motor power (HP) | 20 HP |
| Product family | 890CD = 890 Common Bus Drive |
| Auxiliary supply | 0 = not required |
| Output current (vector mode, 400 V) | 30.0 A |
| Special option / performance / destination | 00 = none / 1 = Advanced / A = English (50 Hz) |
