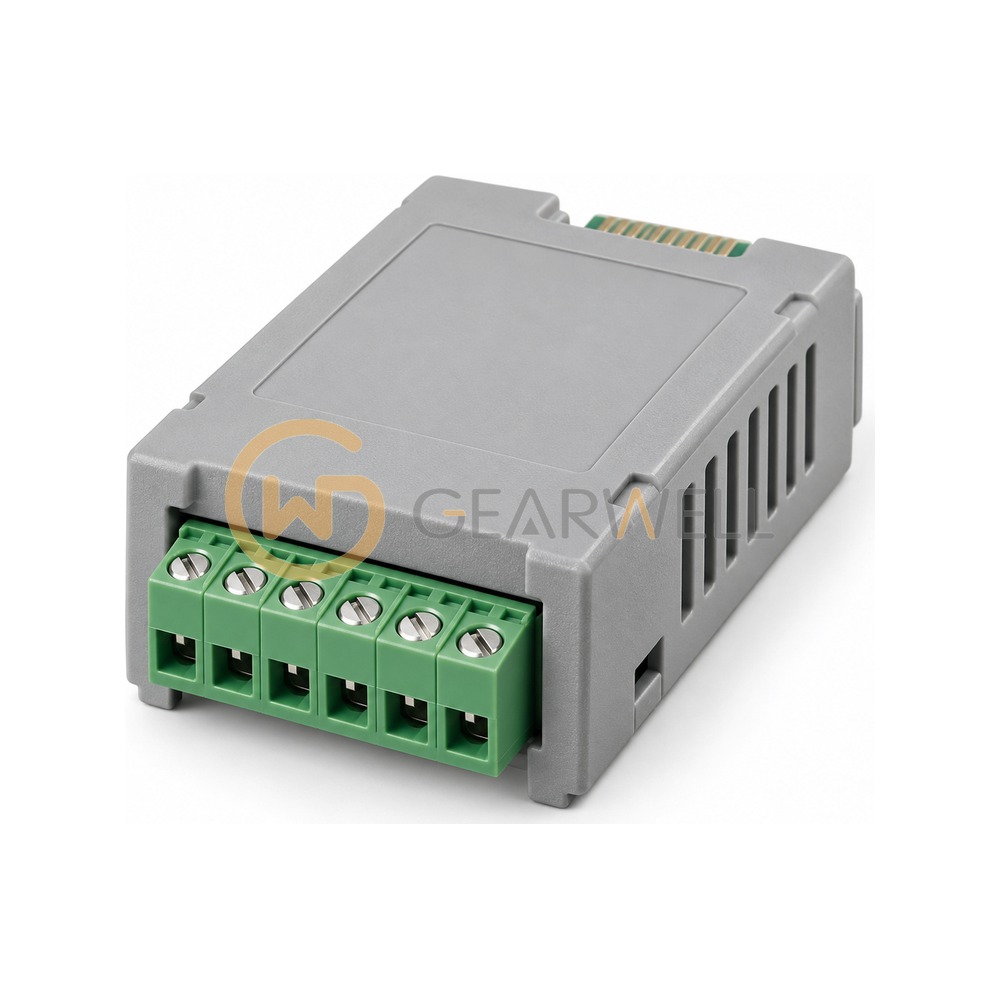

PARKER 6054-HTTL-00 AC690+ HTTL Encoder Feedback Technology Box
- Brand
- PARKER
- Model
- 6054-HTTL-00
- GEARWELL SKU
- GWP-000015796
- Category
- Variable Frequency Drives
Key specifications
- Input format
- two channels in quadrature, clock/dir or clock only
- Input voltage
- 10-30 V differential recommended, or single-ended
- Encoder supply
- 10-20 V adjustable; max. 250 mA or 2.5 W (housing 6054-00)
- Code suffix "HTTL"
- as collected; the NA catalogue lists the housing part number as 6054-00
- Receiver current
- <= 10 mA per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PARKER 6054-HTTL-00 AC690+ HTTL Encoder Feedback Technology Box |
|---|---|
| Brand | PARKER |
| Model | 6054-HTTL-00 |
| Category | Variable Frequency Drives |
| Input format | two channels in quadrature, clock/dir or clock only |
| Input voltage | 10-30 V differential recommended, or single-ended |
| Encoder supply | 10-20 V adjustable; max. 250 mA or 2.5 W (housing 6054-00) |
| Code suffix "HTTL" | as collected; the NA catalogue lists the housing part number as 6054-00 |
| Receiver current | <= 10 mA per channel |
| Compatible drives | AC690+ frames C-J (housing 6054-00) |
| Maximum pulse rate | 250 kHz |
