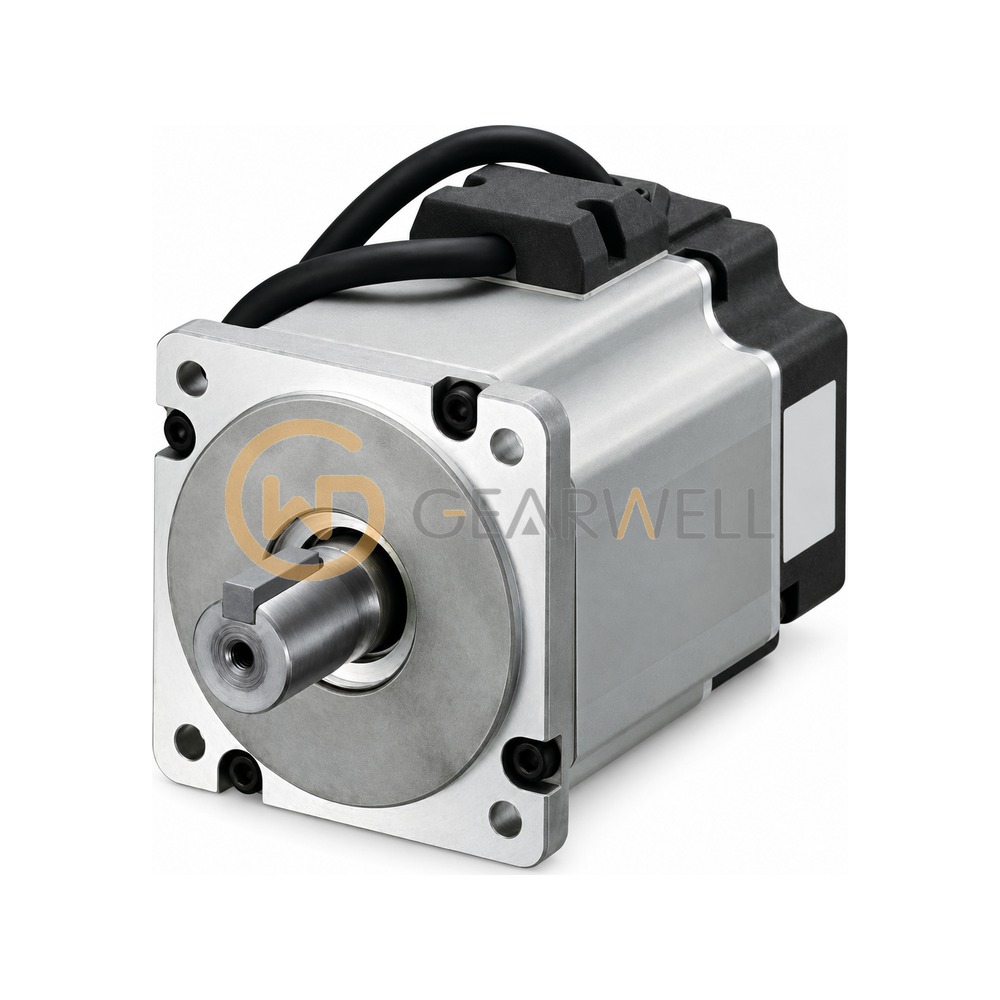

PANASONIC MHMJ082G1U MINAS A5 MHMJ 750W AC Servo Motor
- Brand
- PANASONIC
- Model
- MHMJ082G1U
- GEARWELL SKU
- GWP-000016590
- Category
- Servo Systems
Key specifications
- Family
- MINAS A5
- Series
- MHMJ Series
- Flange size
- 80 mm sq.
- Rated output
- 750 W
- Rated torque
- 2.4 N·m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PANASONIC MHMJ082G1U MINAS A5 MHMJ 750W AC Servo Motor |
|---|---|
| Brand | PANASONIC |
| Model | MHMJ082G1U |
| Category | Servo Systems |
| Family | MINAS A5 |
| Series | MHMJ Series |
| Flange size | 80 mm sq. |
| Rated output | 750 W |
| Rated torque | 2.4 N·m |
| Holding brake | without |
| Rotary encoder | 20-bit incremental |
| Rated / max. speed | 3000 / 4500 r/min |
| Protection class | IP65 |
| Momentary max. peak torque | 7.1 N·m |
