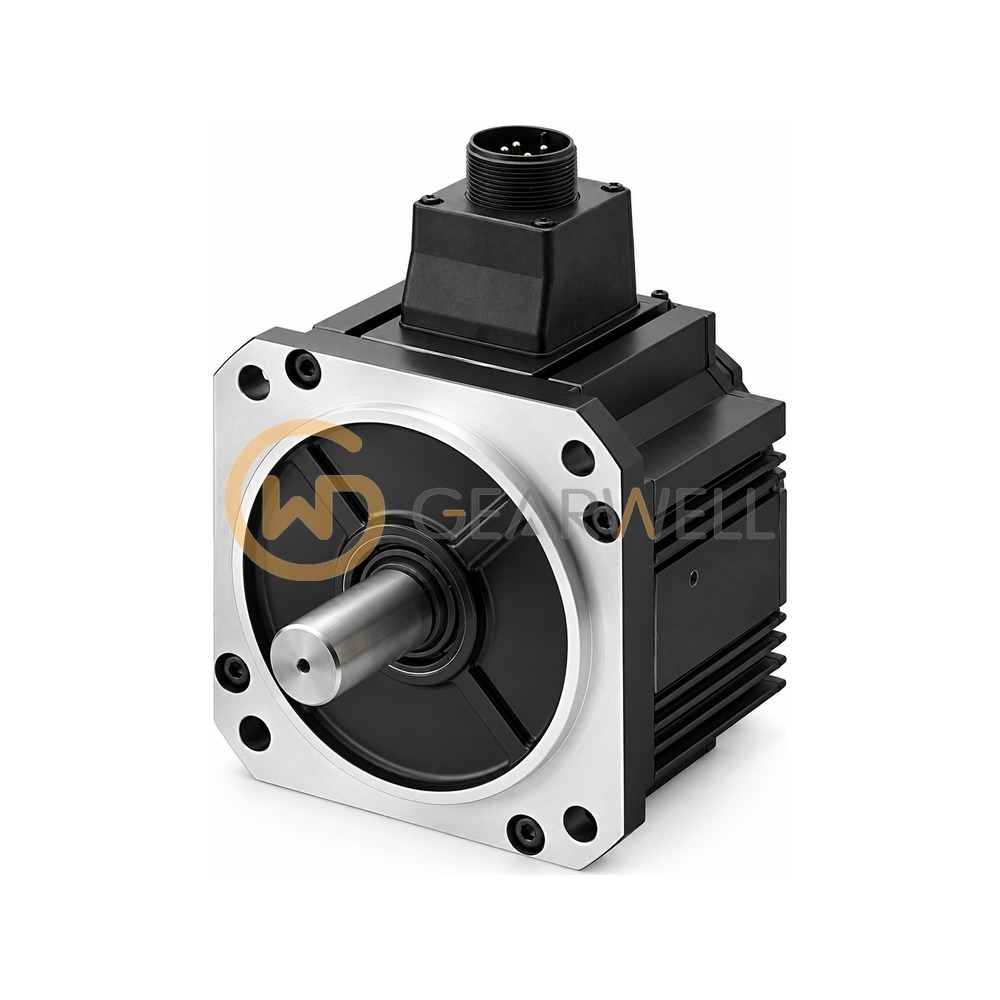

PANASONIC MDME152GCGM MINAS A5 MDME 1.5 kW Servo Motor
- Brand
- PANASONIC
- Model
- MDME152GCGM
- GEARWELL SKU
- GWP-000015789
- Category
- Servo Systems
Key specifications
- Mass
- 6.7 kg
- Encoder
- 20-bit incremental (1048576)
- Voltage
- 200 V
- Flange size
- 130 mm sq.
- Rated output
- 1500 W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PANASONIC MDME152GCGM MINAS A5 MDME 1.5 kW Servo Motor |
|---|---|
| Brand | PANASONIC |
| Model | MDME152GCGM |
| Category | Servo Systems |
| Mass | 6.7 kg |
| Encoder | 20-bit incremental (1048576) |
| Voltage | 200 V |
| Flange size | 130 mm sq. |
| Rated output | 1500 W |
| Rated torque | 7.16 N·m |
| Holding brake | without |
| Rated current | 9.4 A rms |
| Rated / max. speed | 2000 / 3000 r/min |
| Momentary max. peak torque | 21.5 N·m |
