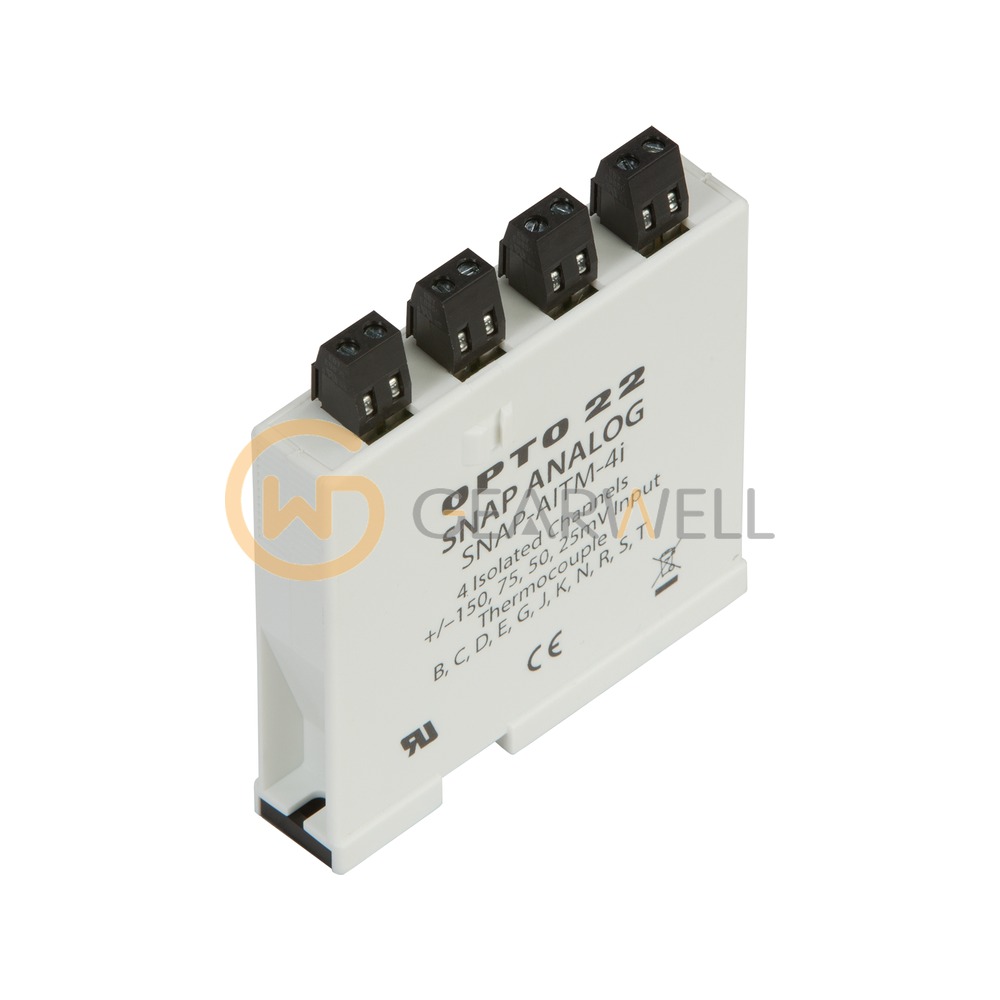

Opto 22 SNAP-AITM-4i SNAP 4-Ch Isolated Thermocouple/mV Input Module
- Brand
- Opto 22
- Model
- SNAP-AITM-4i
- GEARWELL SKU
- GWP-000015020
- Category
- PLCs & I/O
Key specifications
- Channels
- 4, individually configurable
- Isolation
- transformer 1500 V; channel-to-channel 250 V continuous (1500 V transient)
- Data sheet
- Opto 22 form 1182 SNAP Isolated Analog Input Modules
- Resolution
- 6 µV (±150 mV) to 1 µV (±25 mV)
- Seller code
- OPTP22 SNAP-AITM-4I (brand misspelt as OPTP22)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Opto 22 SNAP-AITM-4i SNAP 4-Ch Isolated Thermocouple/mV Input Module |
|---|---|
| Brand | Opto 22 |
| Model | SNAP-AITM-4i |
| Category | PLCs & I/O |
| Channels | 4, individually configurable |
| Isolation | transformer 1500 V; channel-to-channel 250 V continuous (1500 V transient) |
| Data sheet | Opto 22 form 1182 SNAP Isolated Analog Input Modules |
| Resolution | 6 µV (±150 mV) to 1 µV (±25 mV) |
| Seller code | OPTP22 SNAP-AITM-4I (brand misspelt as OPTP22) |
| Input ranges | ±150, ±75, ±50, ±25 mV; thermocouple types B, C, D, E, G, J, K, N, R, S, T |
| Input resistance | 100 MΩ each channel |
| Power requirement | 5 VDC (±0.15) at 150 mA |
| Operating temperature | -20 to 70 °C |
