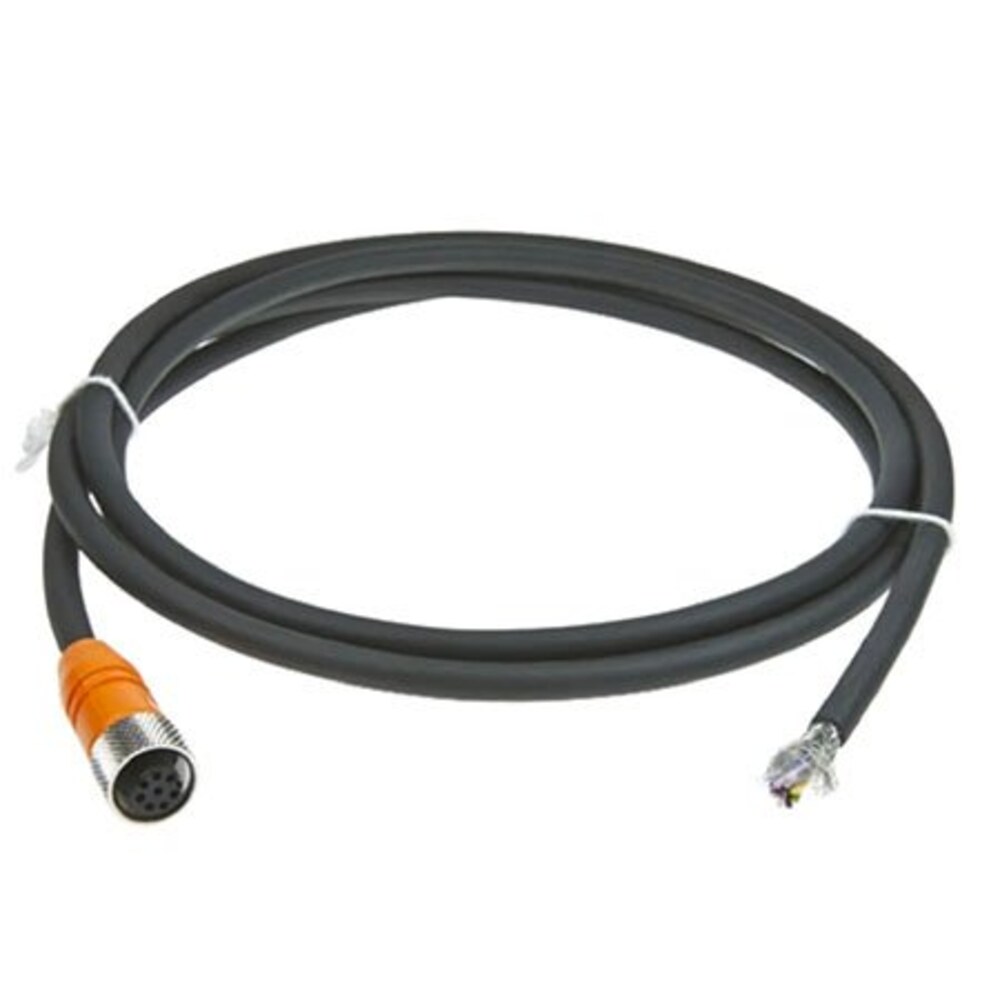

OMRON Y92E-M12PURSH8S5M-L Sensor
- Brand
- OMRON
- Model
- Y92E-M12PURSH8S5M-L
- GEARWELL SKU
- GWP-000003197
- Category
- Sensors & Instrumentation
Key specifications
- Pin count
- 8
- Shielding
- Shielded
- Cable color
- Black
- Connector 1
- M12 straight socket (female)
- Connector 2
- Open ends
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON Y92E-M12PURSH8S5M-L is an M12 8-pin sensor connector with an open cable end and a 5 m halogen-free PUR cable with an outer shielding layer, from the Y92E-M12_8 family. It has brass connectors and 0.25 mm² wires, is rated 4 A and 30 VDC, and is rated IP67 (IEC 60529) for -25°C to 80°C. The cable carries the AWM 21198 rating and is flame retardant to IEC 60332-2-2.
Technical reference
| Product name | OMRON Y92E-M12PURSH8S5M-L Sensor |
|---|---|
| Brand | OMRON |
| Model | Y92E-M12PURSH8S5M-L |
| Category | Sensors & Instrumentation |
| Pin count | 8 |
| Shielding | Shielded |
| Cable color | Black |
| Connector 1 | M12 straight socket (female) |
| Connector 2 | Open ends |
| Cable length | 5 m |
| Product type | Sensor cable with connector |
| Cable material | PUR |
