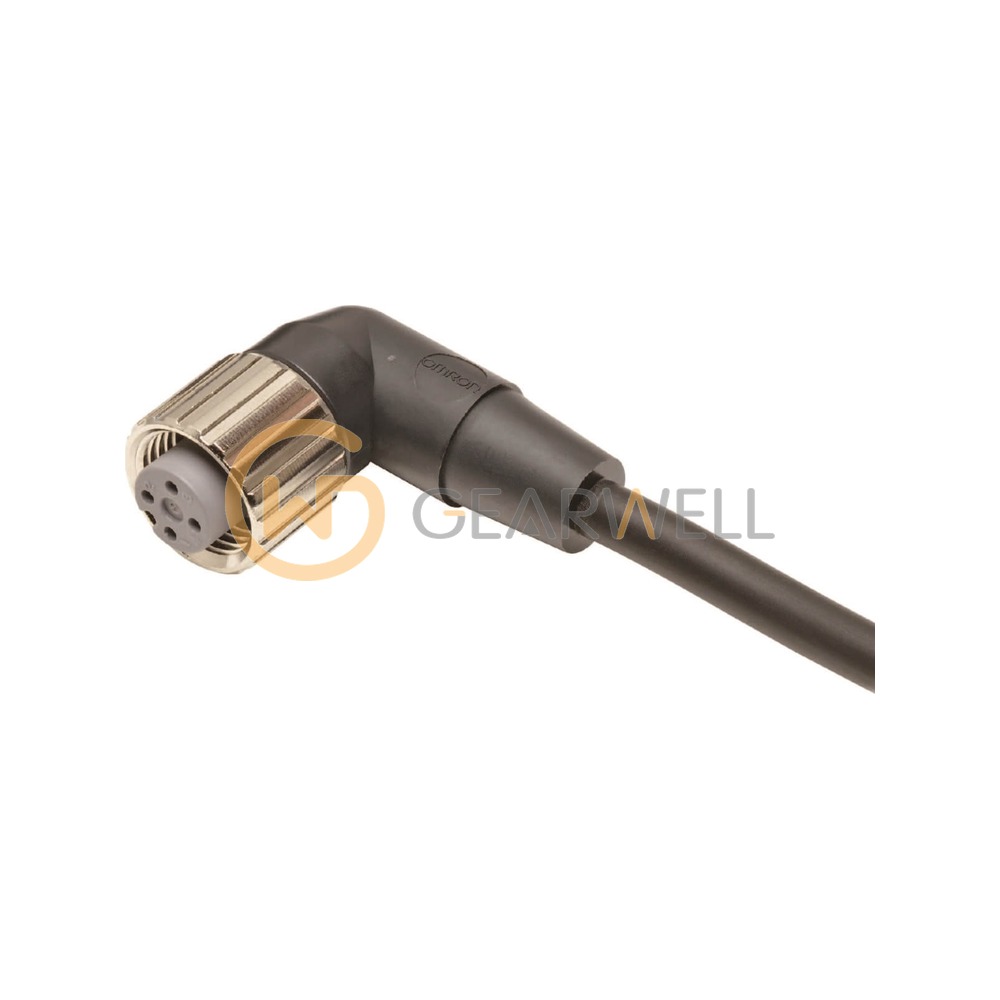

OMRON XS2F-M12PVC4A2M Sensor cable with connector (socket, open end)
- Brand
- OMRON
- Model
- XS2F-M12PVC4A2M
- GEARWELL SKU
- GWP-000013884
- Category
- Terminals, Cables & Connectors
Key specifications
- Connector
- M12 right-angle socket
- Cable length
- 2 m
- Rated current
- 4 A
- Rated voltage
- 125 VDC
- Cable material
- PVC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON XS2F-M12PVC4A2M is an M12 sensor I/O cable from the XS2F basic line, with a right-angle socket on one end and an open cable end, 4 cores (brown, white, blue, black) and a 2 m cable. It has a PVC cable of 5 mm dia. with AWG23 (0.25 mm2) conductors, gold-plated copper alloy contacts and a PBT pin block (UL94 V-0); the connector is rated 4 A and 125 VDC, IP67 (IEC60529), for -10 to +80°C.
Technical reference
| Product name | OMRON XS2F-M12PVC4A2M Sensor cable with connector (socket, open end) |
|---|---|
| Brand | OMRON |
| Model | XS2F-M12PVC4A2M |
| Category | Terminals, Cables & Connectors |
| Connector | M12 right-angle socket |
| Cable length | 2 m |
| Rated current | 4 A |
| Rated voltage | 125 VDC |
| Cable material | PVC |
| Temperature range | -10 to +80 °C |
| Degree of protection | IP67 (IEC60529) |
| Number of pins/cores | 4 |
