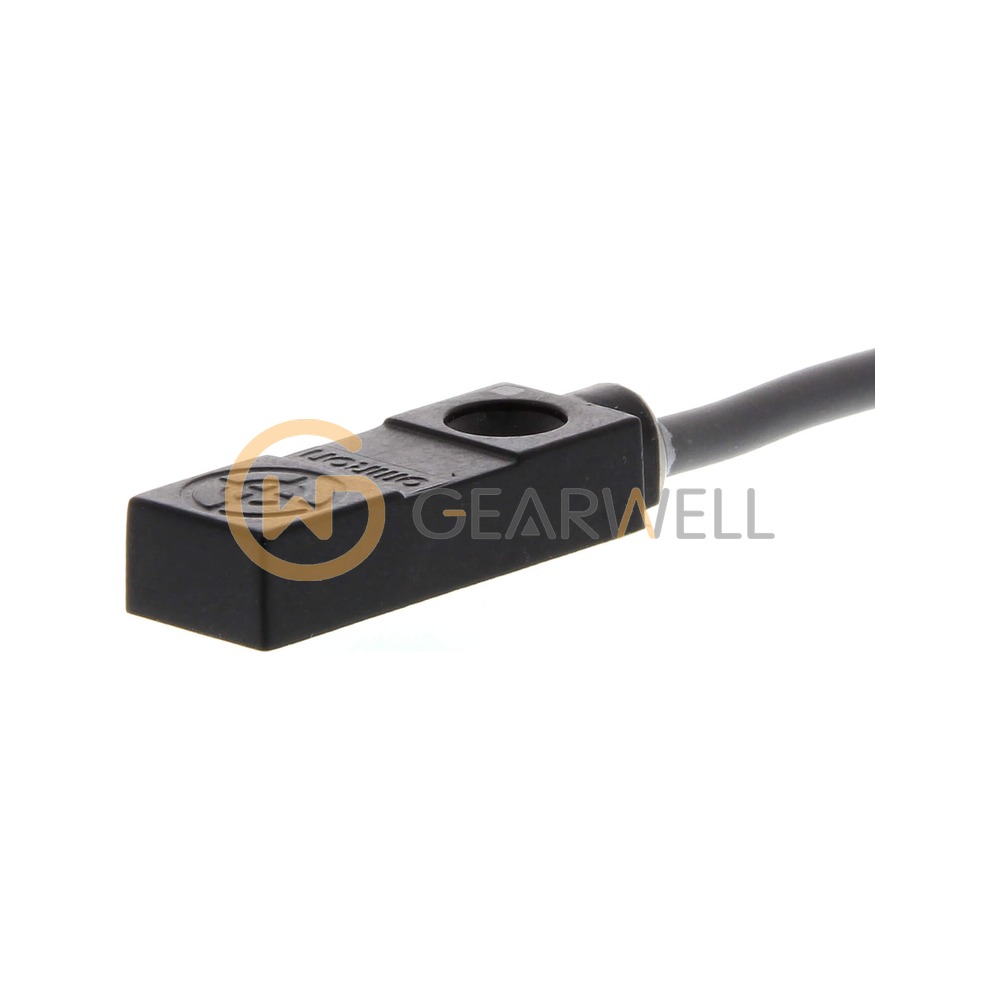

OMRON TL-W3MC2 TL-W Flat Inductive Proximity Sensor
- Brand
- OMRON
- Model
- TL-W3MC2
- GEARWELL SKU
- GWP-000011584
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Size
- 10 x 6 x 30 mm
- Output
- NPN, NC
- Mounting
- Non-flush (unshielded)
- Housing material
- ABS
- Sensing distance
- 3 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON TL-W3MC2 2M is a flat, unshielded inductive proximity sensor from the TL-W series, DC 3-wire with an NPN open collector output, normally closed, and a 2 m pre-wired cable. It senses ferrous metal at 3 mm ±10% (set distance 0 to 2.4 mm) with a response frequency of 600 Hz min. It takes 12 to 24 VDC (10 to 30 VDC operating range) and switches up to 100 mA at 30 VDC max. with a residual voltage of 1 V max. It is rated IP67, works at -25 to 70°C, has a heat-resistant ABS case, and the Y92E-D3 is its mounting bracket.
Technical reference
| Product name | OMRON TL-W3MC2 TL-W Flat Inductive Proximity Sensor |
|---|---|
| Brand | OMRON |
| Model | TL-W3MC2 |
| Category | Proximity & Photoelectric Sensors |
| Size | 10 x 6 x 30 mm |
| Output | NPN, NC |
| Mounting | Non-flush (unshielded) |
| Housing material | ABS |
| Sensing distance | 3 mm |
| Cable length options | 2 m (order code TL-W3MC2 2M; specify on order) |
| Degree of protection | IP67 |
| Power supply voltage | 12 to 24 VDC |
