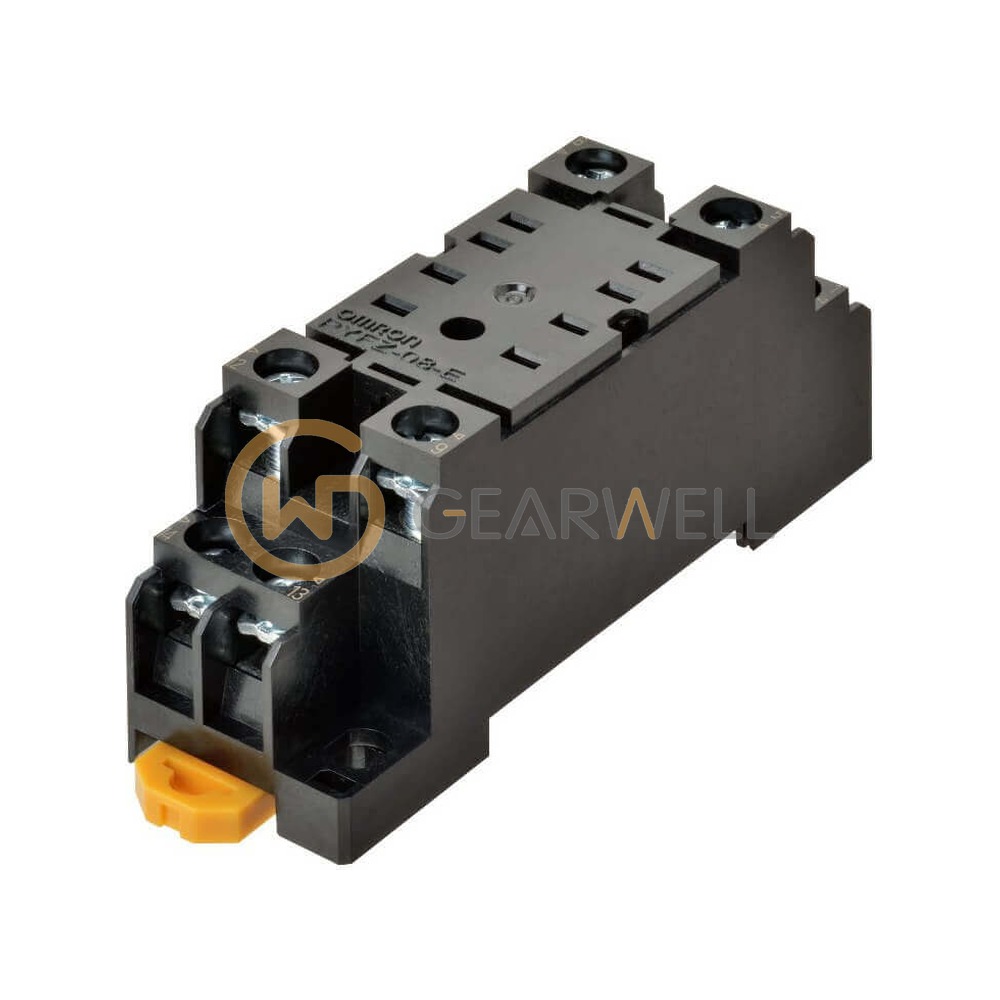

OMRON PYFZ-08-E PYF Relay socket (8-pin, DIN rail/screw)
- Brand
- OMRON
- Model
- PYFZ-08-E
- GEARWELL SKU
- GWP-000013883
- Category
- Relays & Controllers
Key specifications
- Color
- Black
- Depth
- 72 mm
- Width
- 23 mm
- Height
- 31 mm
- Terminal type
- Screw
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON PYFZ-08-E is a DIN-rail-mounted socket with screw terminals for 2-pole MY relays, such as the MY2(S) and MY2ZN. It has a carry current of 10 A, a dielectric withstand voltage of 2,250 VAC for 1 min and an insulation resistance of 1,000 MΩ min. The PYC-A1 hold-down clip fits it for the MY2(S) relays, and it is UL508 certified (E87929).
Technical reference
| Product name | OMRON PYFZ-08-E PYF Relay socket (8-pin, DIN rail/screw) |
|---|---|
| Brand | OMRON |
| Model | PYFZ-08-E |
| Category | Relays & Controllers |
| Color | Black |
| Depth | 72 mm |
| Width | 23 mm |
| Height | 31 mm |
| Terminal type | Screw |
| Mounting method | DIN rail/screw |
| Applicable products | G3F, H3YN, MY2, MY2-GS |
