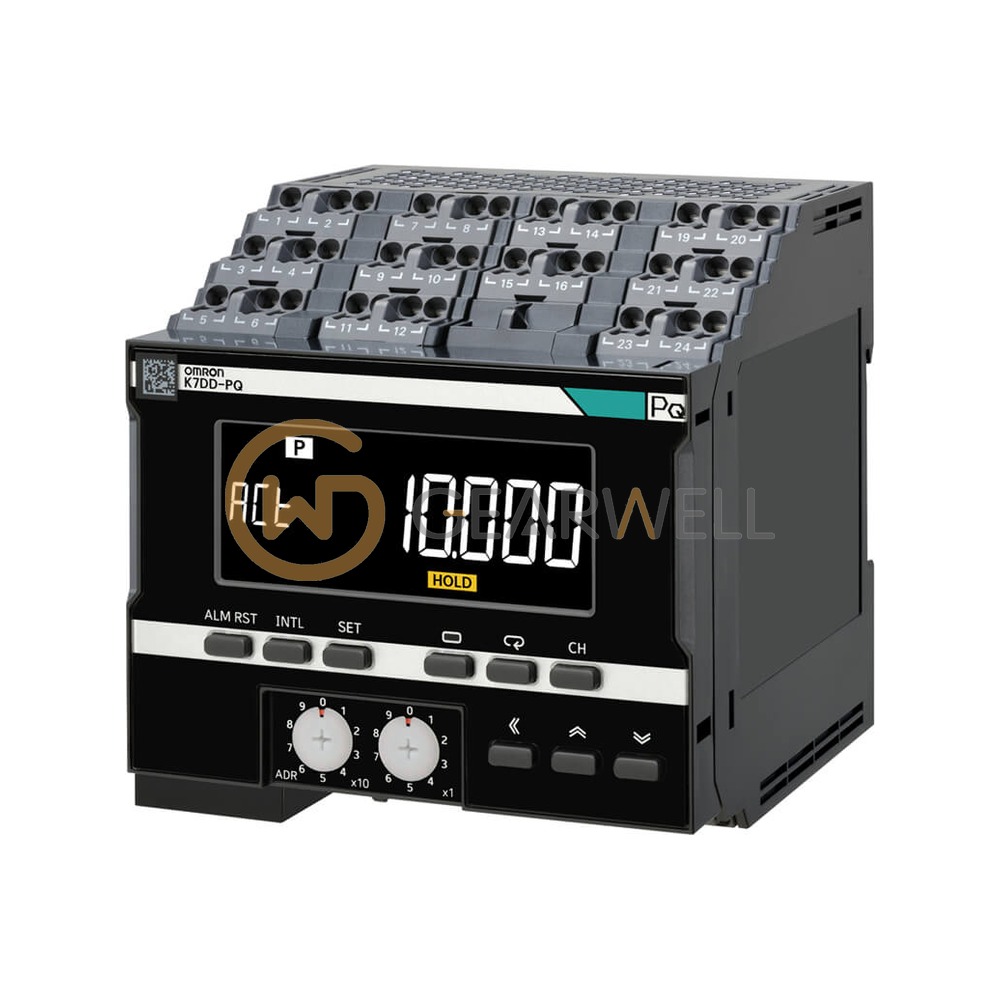

OMRON K7DD-PQMD K7DD Motor Condition Monitoring Device
- Brand
- OMRON
- Model
- K7DD-PQMD
- GEARWELL SKU
- GWP-000011581
- Category
- Test & Measurement
Key specifications
- Weight
- approx. 360 g
- Mounting
- DIN rail
- Communication
- Modbus RTU
- Supply voltage
- 24 VDC
- Digital outputs
- 3 (NPN transistor)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON K7DD-PQMD is a K7DD advanced motor condition monitoring device that measures the voltage and current of the power line feeding a motor, also for motors that change speed, in single-phase or 3-phase systems. It works with the K6CM-CICB current transformers, ordered separately, with current ranges from 5 A to 400 A, and voltage ranges of 150 V, 300 V and 600 V. It runs on 24 V DC (5.2 W max.), has Push-In Plus terminals and an NPN open-collector trigger input, mounts on DIN track, is rated IP20 and weighs approx. 360 g.
Technical reference
| Product name | OMRON K7DD-PQMD K7DD Motor Condition Monitoring Device |
|---|---|
| Brand | OMRON |
| Model | K7DD-PQMD |
| Category | Test & Measurement |
| Weight | approx. 360 g |
| Mounting | DIN rail |
| Communication | Modbus RTU |
| Supply voltage | 24 VDC |
| Digital outputs | 3 (NPN transistor) |
| Terminal blocks | Push-In Plus |
| Rated input current | 1 to 400 A |
| Dimensions (H x W x D) | 90 x 90 x 90 mm |
