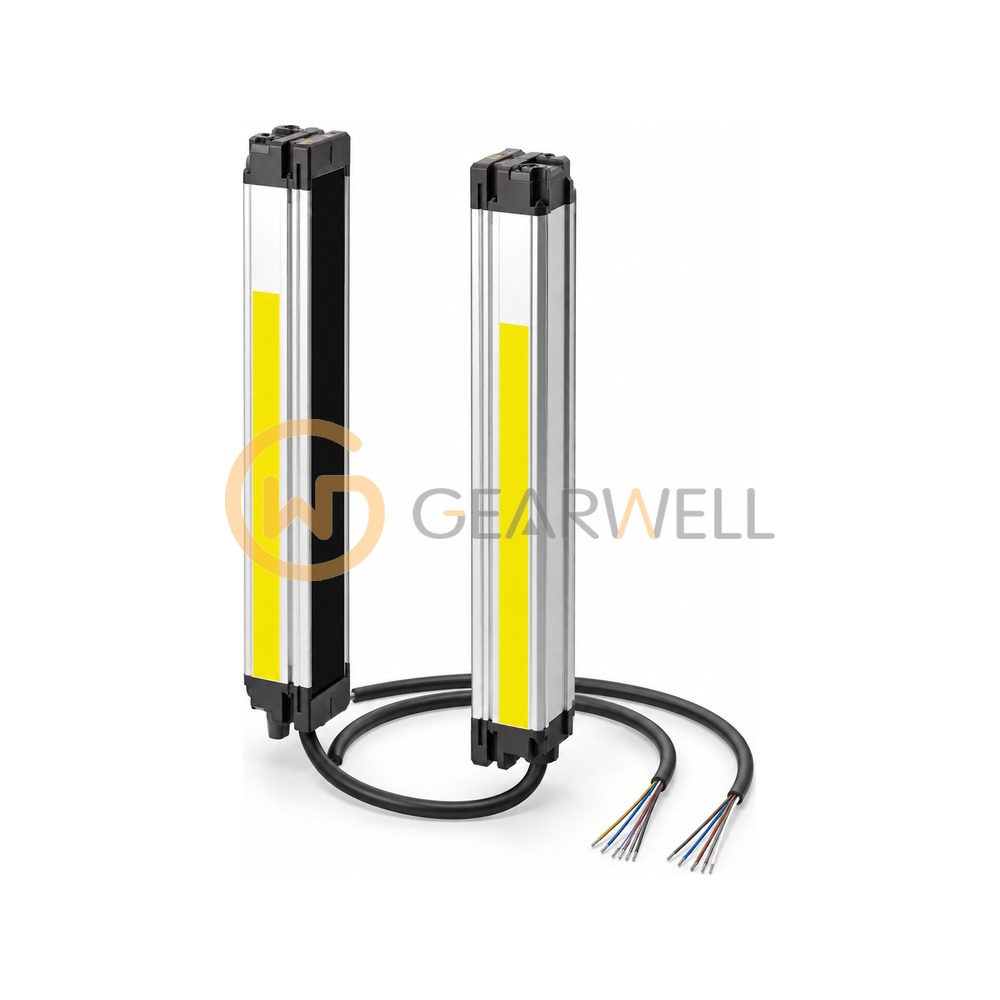

OMRON F3SJ-E0465N25 F3SJ-E Safety Light Curtain
- Brand
- OMRON
- Model
- F3SJ-E0465N25
- GEARWELL SKU
- GWP-000015625
- Category
- Machine Safety & Vision
Key specifications
- Beam pitch
- 20 mm
- Output (OSSD)
- NPN transistor x 2, 200 mA max.
- Supply voltage
- 24 VDC ±20 %
- Number of beams
- 22
- Operating range
- 0.2 to 7 m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | OMRON F3SJ-E0465N25 F3SJ-E Safety Light Curtain |
|---|---|
| Brand | OMRON |
| Model | F3SJ-E0465N25 |
| Category | Machine Safety & Vision |
| Beam pitch | 20 mm |
| Output (OSSD) | NPN transistor x 2, 200 mA max. |
| Supply voltage | 24 VDC ±20 % |
| Number of beams | 22 |
| Operating range | 0.2 to 7 m |
| Protective height | 465 mm |
| Degree of protection | IP65 |
| Detection capability | 25 mm dia. (hand) |
| Response time (ON to OFF) | 15 ms max. |
