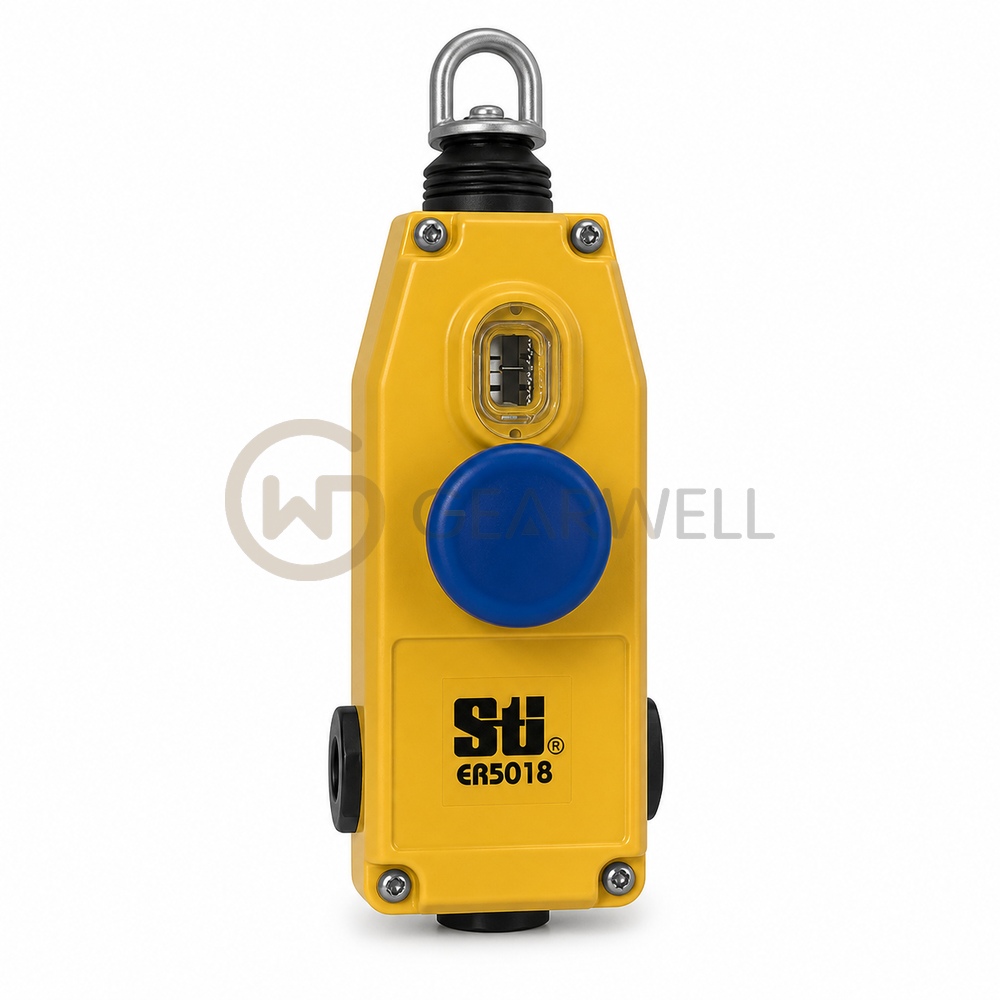

OMRON ER5018-021M Rope Pull Switch
- Brand
- OMRON
- Model
- ER5018-021M
- GEARWELL SKU
- GWP-000001980
- Category
- Industrial Automation Parts
Key specifications
- Weight
- Approximately 675 g
- Product type
- Rope pull safety switch
- Conduit entry
- 3 x M20
- LED indicator
- Not selectable
- Maximum rope length
- 40 m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON ER5018-021M is a compact rope pull emergency stop switch with 2 N/C safety contacts and 1 N/O auxiliary contact, 3 x M20 wiring entries and no integral E-stop button. It covers rope spans up to 40 m, has a tension indicator and a blue reset button, and switches 120 V–6 A and 240 V–3 A AC or 24 V–2.5 A DC inductive loads. The housing is die-cast aluminum alloy with a stainless steel eye nut, rated IP67 (NEMA 6) for -25 to 80°C, and it weighs 675 g. Electrical and mechanical life are each 1,000,000 operations minimum.
Technical reference
| Product name | OMRON ER5018-021M Rope Pull Switch |
|---|---|
| Brand | OMRON |
| Model | ER5018-021M |
| Category | Industrial Automation Parts |
| Weight | Approximately 675 g |
| Product type | Rope pull safety switch |
| Conduit entry | 3 x M20 |
| LED indicator | Not selectable |
| Maximum rope length | 40 m |
| Contact configuration | 2NC + 1NO |
| Emergency stop button | Not included |
