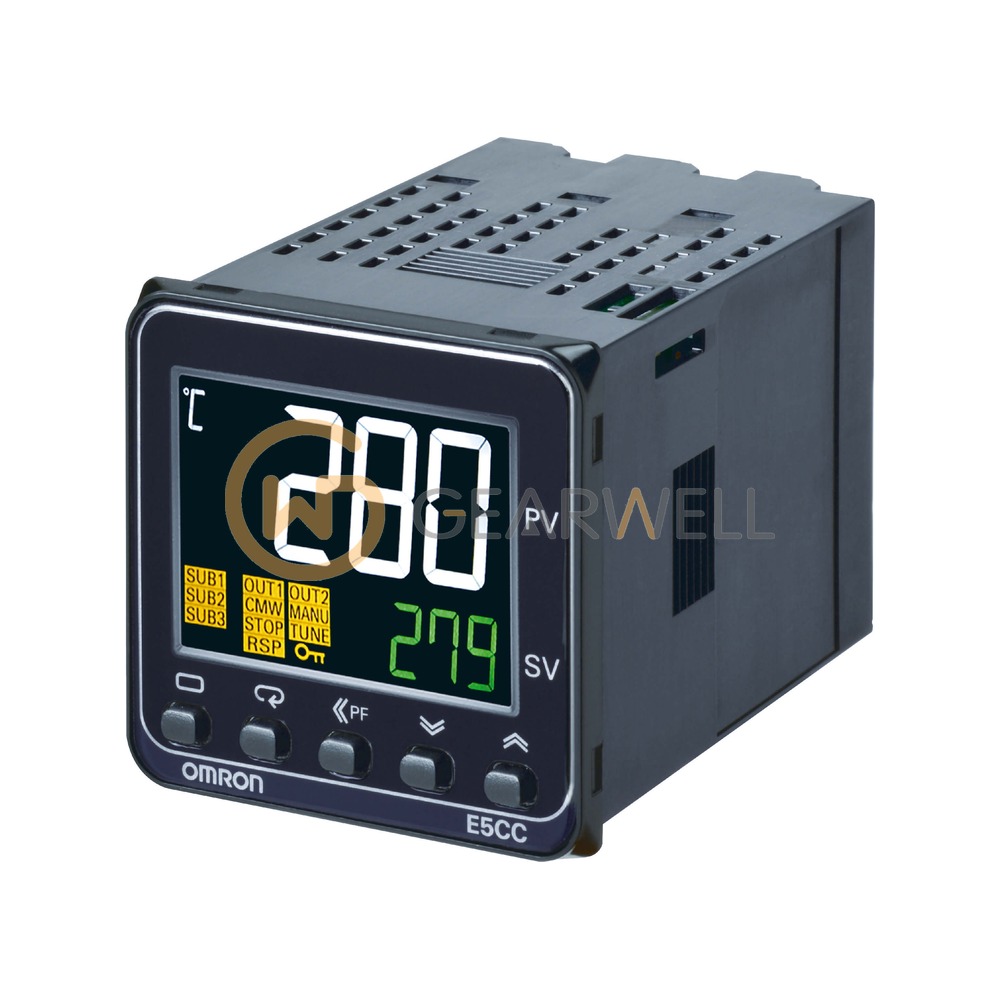

OMRON E5CC-QX2DBM-001 E5CC-B Digital Temperature Controller
- Brand
- OMRON
- Model
- E5CC-QX2DBM-001
- GEARWELL SKU
- GWP-000016886
- Category
- Pressure, Flow & Temperature
Key specifications
- Size
- 1/16 DIN (48 x 48) mm
- Terminal type
- Push-in
- Control output
- Voltage pulse
- Supply voltage
- 24 VAC/VDC (20.4-26.4 V)
- Base model page
- E5CC-QX2DBM-000
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | OMRON E5CC-QX2DBM-001 E5CC-B Digital Temperature Controller |
|---|---|
| Brand | OMRON |
| Model | E5CC-QX2DBM-001 |
| Category | Pressure, Flow & Temperature |
| Size | 1/16 DIN (48 x 48) mm |
| Terminal type | Push-in |
| Control output | Voltage pulse |
| Supply voltage | 24 VAC/VDC (20.4-26.4 V) |
| Base model page | E5CC-QX2DBM-000 |
| Code suffix "-001" | as collected; option set not shown on an opened OMRON page |
| Temperature input type | B, C, E, J, JPt100, K, L, N, P, Pt100, R, S, T, U |
| Alarm/auxiliary outputs | 2 |
| Omron order code (as collected) | E5CC1195M |
