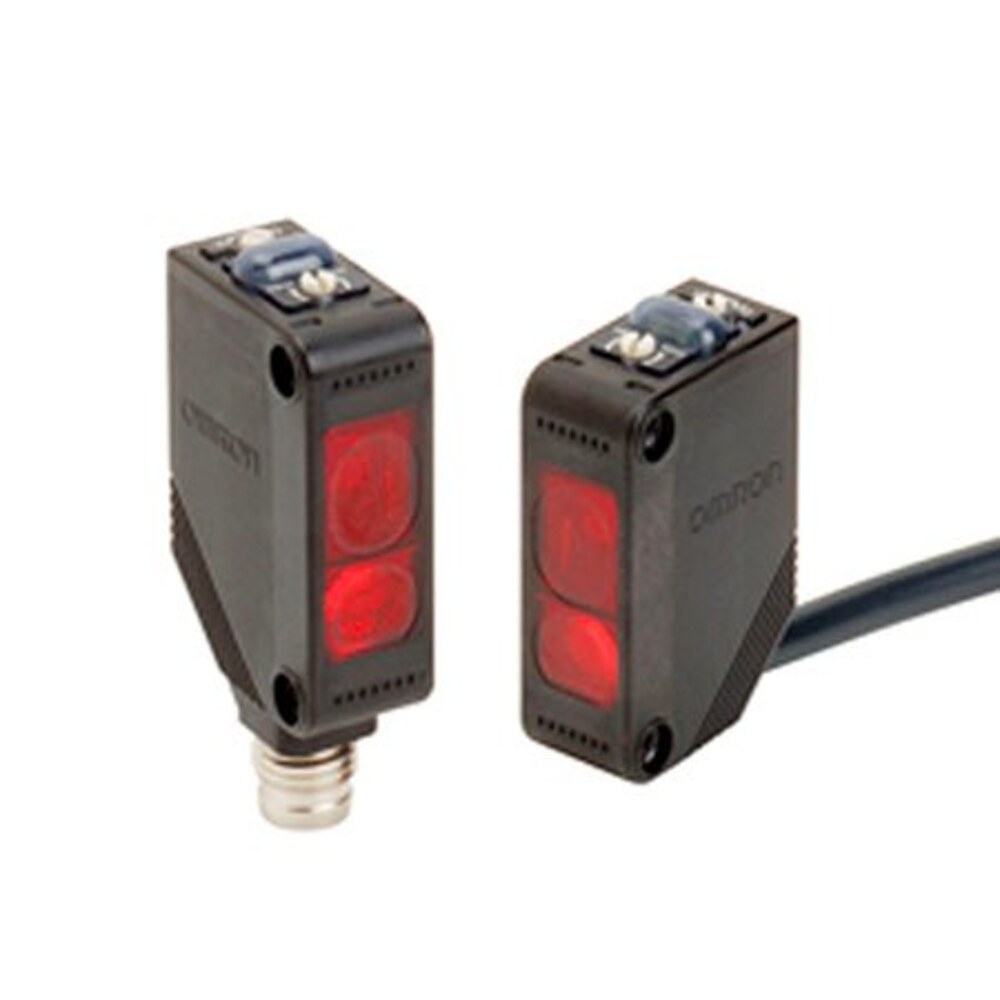

OMRON E3Z-LS61 Photoelectric Sensor
- Brand
- OMRON
- Model
- E3Z-LS61
- GEARWELL SKU
- GWP-000001159
- Category
- Industrial Automation Parts
Key specifications
- Body type
- Rectangular compact
- Connection
- Pre-wired, 2 m cable
- Output type
- NPN
- Light source
- Red LED
- Product type
- Compact photoelectric sensor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON E3Z-LS61 2M is a compact distance-settable photoelectric sensor with built-in amplifier from the E3Z-LS series, with a red LED light source, an NPN output and a 2 m pre-wired cable. It can run in BGS or FGS mode, and the set distance can be adjusted from 40 to 200 mm on white paper (100 × 100 mm) with a 5-turn endless adjuster. It takes 12 to 24 VDC ±10%, draws 30 mA max. and the open collector output switches up to 100 mA at 26.4 VDC max., with light-ON/dark-ON selection. The response time is 1 ms max., it works at -25 to 55°C and is rated IP67.
Technical reference
| Product name | OMRON E3Z-LS61 Photoelectric Sensor |
|---|---|
| Brand | OMRON |
| Model | E3Z-LS61 |
| Category | Industrial Automation Parts |
| Body type | Rectangular compact |
| Connection | Pre-wired, 2 m cable |
| Output type | NPN |
| Light source | Red LED |
| Product type | Compact photoelectric sensor |
| Sensing method | Background suppression |
| Supply voltage | 12 to 24 VDC |
| Maximum sensing distance | 200 mm |
