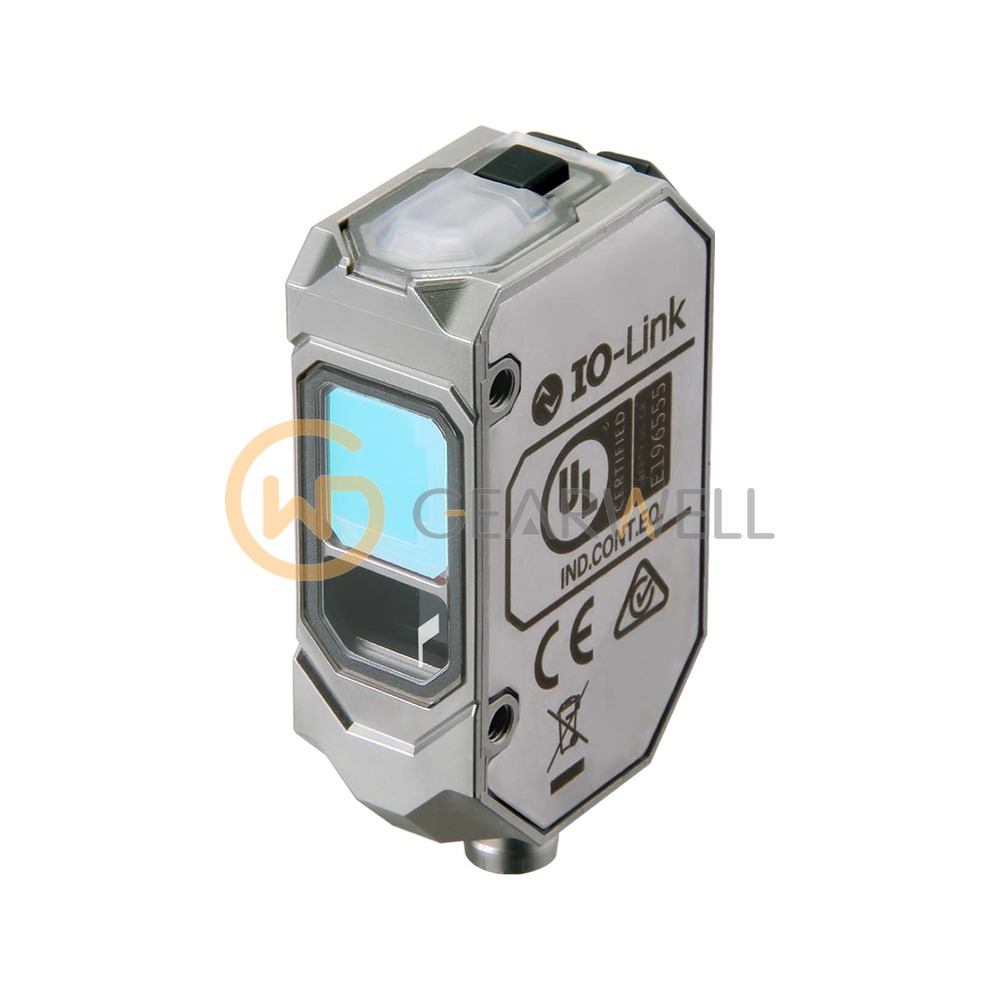

OMRON E3AS-HL500LMT M3 E3AS-HL Photoelectric Sensor
- Brand
- OMRON
- Model
- E3AS-HL500LMT M3
- GEARWELL SKU
- GWP-000011610
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output
- IO-Link, PNP
- Connection
- M8 connector, 4-pin
- Light source
- Red laser, class 1
- Response time
- 1.5 ms
- Sensing method
- Background suppression
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON E3AS-HL500LMT M3 is a distance-settable reflective photoelectric sensor from the E3AS-HL series, using triangulation with a red laser line beam (660 nm, Class 1) and an M8 connector. It detects from 35 mm to the set distance, with a setting range of 35 to 500 mm, and the spot is 18 mm × 1.5 mm at a distance of 500 mm. It takes 10 to 30 VDC, draws 100 mA max. and has a PNP output with IO-Link COM3 (230.4 kbps), output 1 NO and output 2 NC, with a selectable response time of 1.5 ms, 10 ms or 50 ms. It has an OLED display and teach button and is rated IP67 and IP69K.
Technical reference
| Product name | OMRON E3AS-HL500LMT M3 E3AS-HL Photoelectric Sensor |
|---|---|
| Brand | OMRON |
| Model | E3AS-HL500LMT M3 |
| Category | Proximity & Photoelectric Sensors |
| Output | IO-Link, PNP |
| Connection | M8 connector, 4-pin |
| Light source | Red laser, class 1 |
| Response time | 1.5 ms |
| Sensing method | Background suppression |
| Housing material | Stainless steel 316L |
| Sensing distance | 35 to 500 mm |
| Degree of protection | IP67/IP67G/IP69K |
| Power supply voltage | 10 to 30 VDC |
