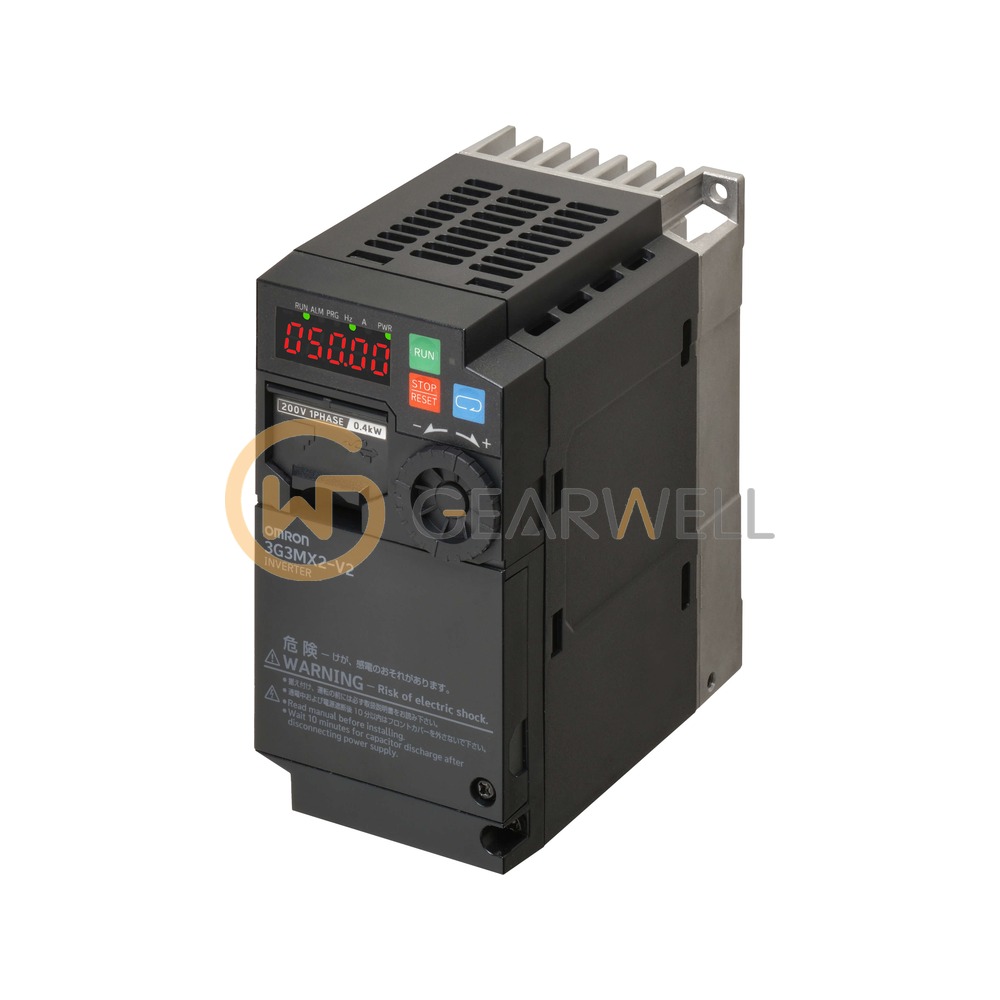

OMRON 3G3MX2-AB004-V2 MX2 Compact inverter (vector control)
- Brand
- OMRON
- Model
- 3G3MX2-AB004-V2
- GEARWELL SKU
- GWP-000012765
- Category
- Variable Frequency Drives
Key specifications
- Max. output voltage
- 0-240 V (proportional to input)
- Max. output frequency
- 400 Hz
- Max. applicable motor (CT)
- 0.4 kW
- Max. applicable motor (VT)
- 0.55 kW
- Rated output current (CT)
- 3.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON 3G3MX2-AB004-V2 is an MX2-Series V2 type multi-function compact inverter for a single-phase 200 V -15% to 240 V +10% supply at 50/60 Hz, with sensorless vector control, PM motor control, simple positioning, built-in logic programming and Safe Torque Off. In ND (normal load) it drives a 0.4 kW motor at 3.0 A rated output current, in LD (light load) a 0.55 kW motor at 3.5 A; output frequency goes up to 590 Hz. It is self-cooling, weighs 1.1 kg and measures 68 × 128 mm with a depth of 125.5 mm.
Technical reference
| Product name | OMRON 3G3MX2-AB004-V2 MX2 Compact inverter (vector control) |
|---|---|
| Brand | OMRON |
| Model | 3G3MX2-AB004-V2 |
| Category | Variable Frequency Drives |
| Max. output voltage | 0-240 V (proportional to input) |
| Max. output frequency | 400 Hz |
| Max. applicable motor (CT) | 0.4 kW |
| Max. applicable motor (VT) | 0.55 kW |
| Rated output current (CT) | 3.0 A |
| Rated output current (VT) | 3.5 A |
| Rated input voltage/frequency | Single-phase 200-240 V, 50/60 Hz |
