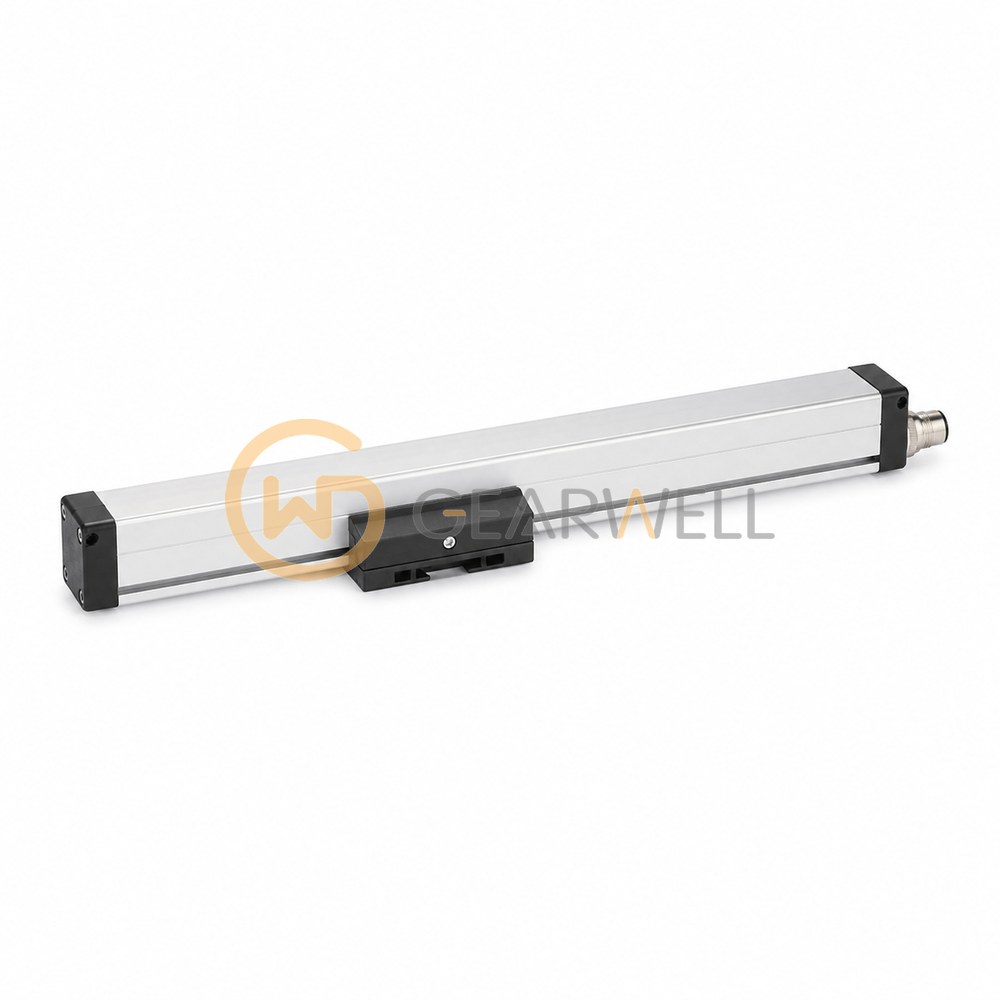

NOVOTECHNIK TLH-0175 Linear Transducer
- Brand
- NOVOTECHNIK
- Model
- TLH-0175
- GEARWELL SKU
- GWP-000000653
- Category
- Industrial Automation Parts
Key specifications
- Body length
- 326 mm
- Product type
- Potentiometric position transducer
- Repeatability
- 0.01 mm
- Electrical stroke
- 178 mm
- Mechanical stroke
- 184 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | NOVOTECHNIK TLH-0175 Linear Transducer |
|---|---|
| Brand | NOVOTECHNIK |
| Model | TLH-0175 |
| Category | Industrial Automation Parts |
| Body length | 326 mm |
| Product type | Potentiometric position transducer |
| Repeatability | 0.01 mm |
| Electrical stroke | 178 mm |
| Mechanical stroke | 184 mm |
| Nominal resistance | 5 kΩ |
| Independent linearity | ±0.07% |
| Defined electrical range | 175 mm |
