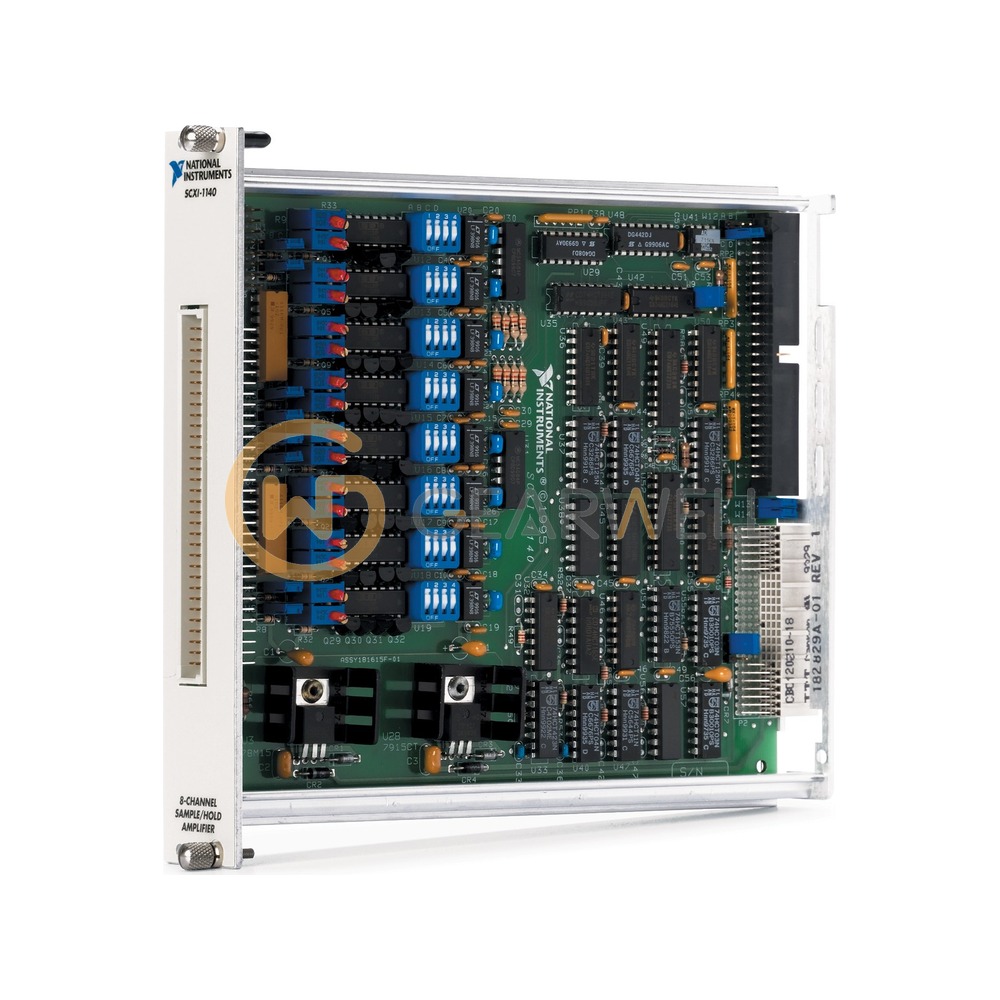

National Instruments SCXI-1140 8-Ch Simultaneous Sampling Amplifier
- Brand
- National Instruments
- Model
- SCXI-1140
- GEARWELL SKU
- GWP-000014864
- Category
- Test & Measurement
Key specifications
- Channels
- 8 differential, simultaneously sampled
- Evidence
- NI SCXI-1140 User Manual 320410B-01 (hosted at apexwaves.com)
- Connectors
- 96-pin DIN C front, 50-pin rear
- Part number
- 776572-40
- Gain settings
- 1, 10, 100, 200, 300, 500, 600, 700, 800 (DIP switch)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | National Instruments SCXI-1140 8-Ch Simultaneous Sampling Amplifier |
|---|---|
| Brand | National Instruments |
| Model | SCXI-1140 |
| Category | Test & Measurement |
| Channels | 8 differential, simultaneously sampled |
| Evidence | NI SCXI-1140 User Manual 320410B-01 (hosted at apexwaves.com) |
| Connectors | 96-pin DIN C front, 50-pin rear |
| Part number | 776572-40 |
| Gain settings | 1, 10, 100, 200, 300, 500, 600, 700, 800 (DIP switch) |
| Operating temperature | 0 to 50 °C |
