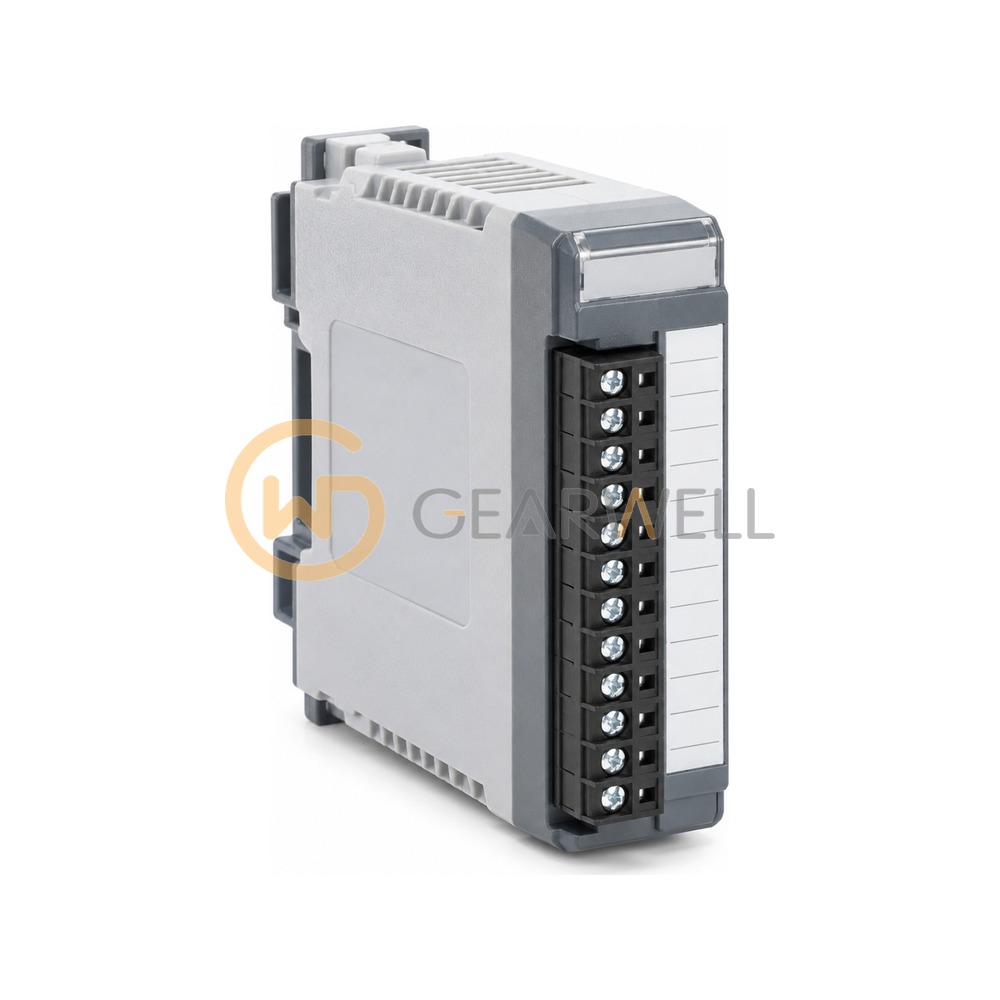

National Instruments cFP-AI-100 FieldPoint Analog Input Module
- Brand
- National Instruments
- Model
- cFP-AI-100
- GEARWELL SKU
- GWP-000026413
- Category
- PLCs & I/O
Key specifications
- Channels
- 8 analog voltage or current inputs
- Evidence
- National Instruments 370278A-01 FP-AI-100 and cFP-AI-100 Operating Instructions (hosted at apexwaves.com)
- Isolation
- 250 Vrms CAT II continuous channel-to-ground
- Resolution
- 12 bit
- Input ranges
- 0-1 V, 0-5 V, 0-15 V, 0-30 V, ±1 V, ±5 V, ±15 V, ±30 V, 0-20 mA, 4-20 mA, ±20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | National Instruments cFP-AI-100 FieldPoint Analog Input Module |
|---|---|
| Brand | National Instruments |
| Model | cFP-AI-100 |
| Category | PLCs & I/O |
| Channels | 8 analog voltage or current inputs |
| Evidence | National Instruments 370278A-01 FP-AI-100 and cFP-AI-100 Operating Instructions (hosted at apexwaves.com) |
| Isolation | 250 Vrms CAT II continuous channel-to-ground |
| Resolution | 12 bit |
| Input ranges | 0-1 V, 0-5 V, 0-15 V, 0-30 V, ±1 V, ±5 V, ±15 V, ±30 V, 0-20 mA, 4-20 mA, ±20 mA |
| Hot swappable | Yes |
| Operating temperature | -40 to 70 °C |
