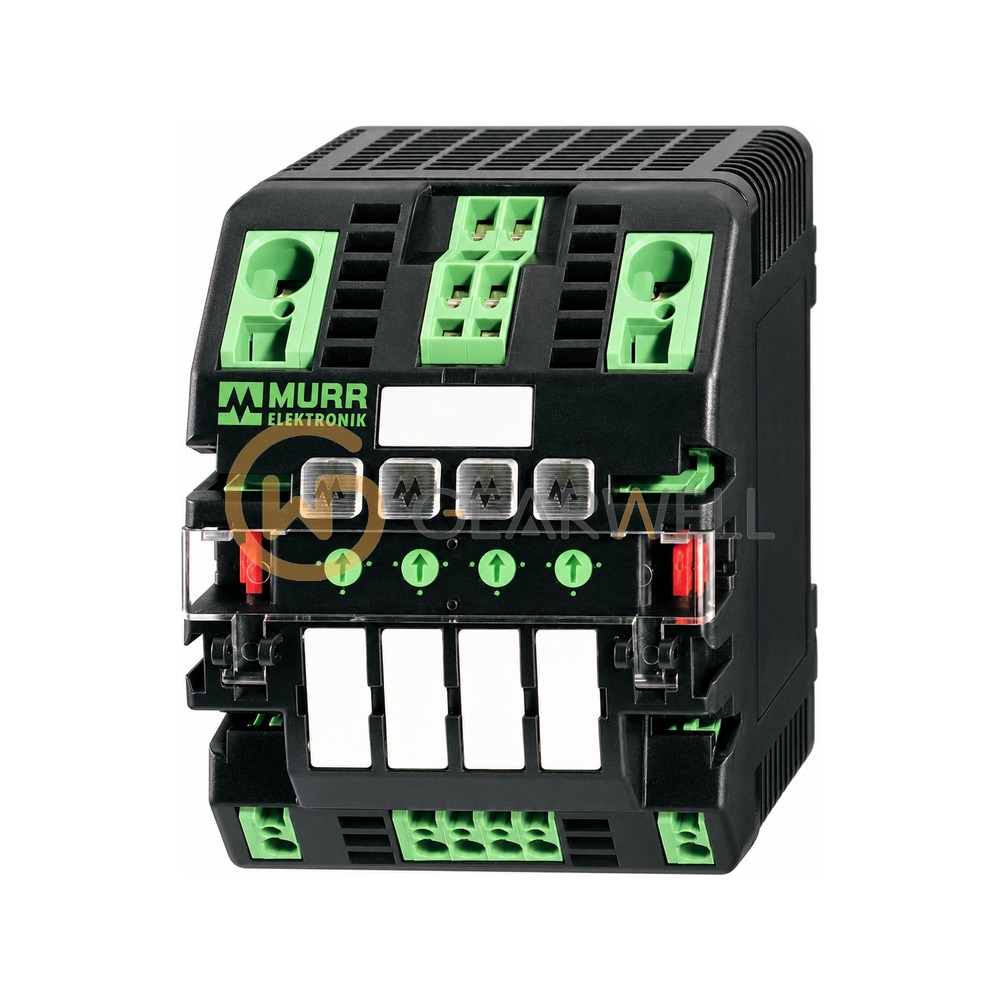

Murrelektronik 9000-41034-0401000 MICO electronic circuit protection, 4 channels
- Brand
- Murrelektronik
- Model
- 9000-41034-0401000
- GEARWELL SKU
- GWP-000014265
- Category
- Circuit Protection
Key specifications
- Channels
- 4
- Mounting
- Mounting rail TH35 (EN 60715)
- Dimensions (H×W×D)
- 90 × 70 × 80 mm
- Input voltage DC
- 24 V
- Operating temperature
- 0 … 55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Murrelektronik 9000-41034-0401000 MICO electronic circuit protection, 4 channels |
|---|---|
| Brand | Murrelektronik |
| Model | 9000-41034-0401000 |
| Category | Circuit Protection |
| Channels | 4 |
| Mounting | Mounting rail TH35 (EN 60715) |
| Dimensions (H×W×D) | 90 × 70 × 80 mm |
| Input voltage DC | 24 V |
| Operating temperature | 0 … 55 °C |
| Input voltage DC range | 18 … 30 V |
| Output current (adjustable) | 4-6-8-10 A |
| Total current bridge set max. | 40 A |
