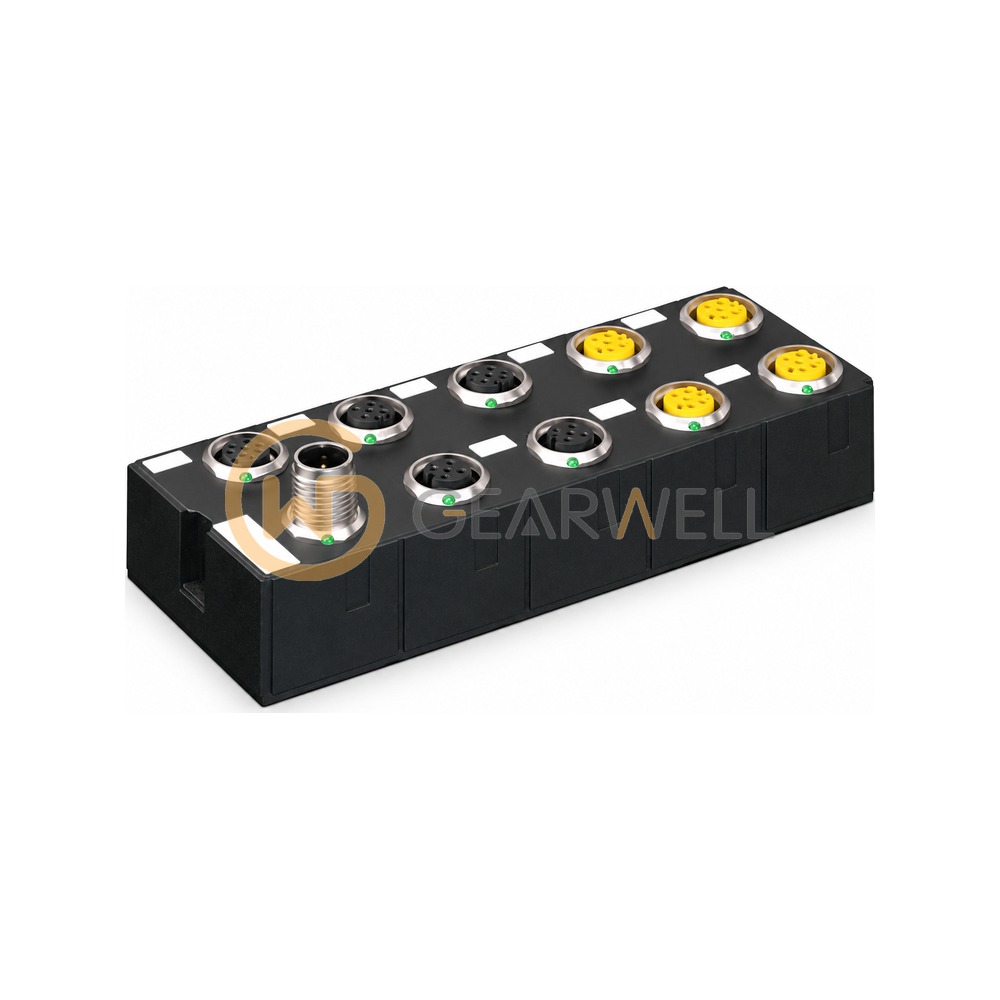

Murrelektronik 56428 MASI AS-Interface I/O module (extension)
- Brand
- Murrelektronik
- Model
- 56428
- GEARWELL SKU
- GWP-000016344
- Category
- PLCs & I/O
Key specifications
- Operating temperature max.
- 60 °C
- Operating temperature min.
- -20 °C
- Output current per pin max.
- 2 A
- Current carrying capacity max.
- 0.2 A
- Bus voltage AS-Interface DC max.
- 31.6 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Murrelektronik 56428 MASI AS-Interface I/O module (extension) |
|---|---|
| Brand | Murrelektronik |
| Model | 56428 |
| Category | PLCs & I/O |
| Operating temperature max. | 60 °C |
| Operating temperature min. | -20 °C |
| Output current per pin max. | 2 A |
| Current carrying capacity max. | 0.2 A |
| Bus voltage AS-Interface DC max. | 31.6 V |
| Bus voltage AS-Interface DC min. | 26.5 V |
| Current consumption AS-i port max. | 250 mA |
| Degree of protection (EN IEC 60529) | IP68 |
