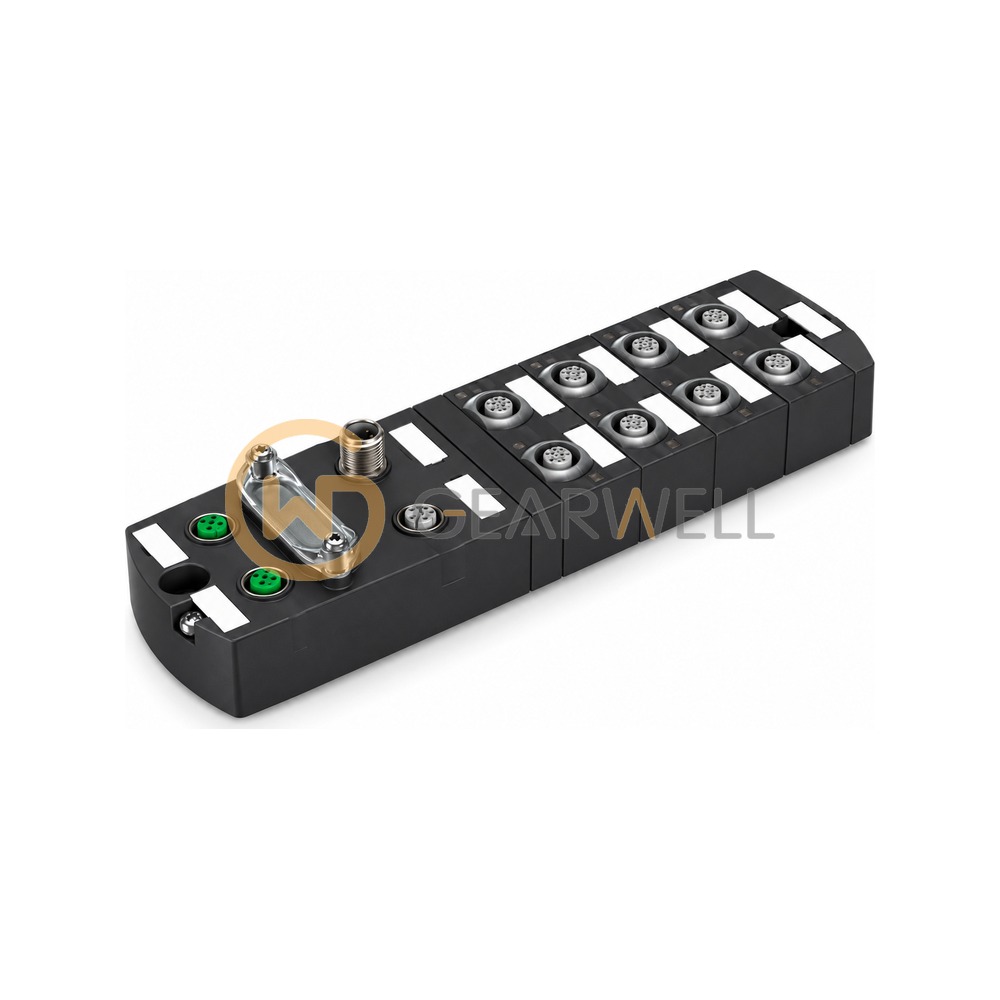

Murrelektronik 54630 PROFINET IO-Link master / fieldbus I/O module (IMPACT67 Pro PN DIO8 IOL8 M12L 5P)
- Brand
- Murrelektronik
- Model
- 54630
- GEARWELL SKU
- GWP-000014326
- Category
- PLCs & I/O
Key specifications
- IO-Link
- 8x Master, Port Class A, B
- Supported protocol
- PROFINET (Conformance Class C, V2.3)
- Degree of protection
- IP67
- Dimensions (H x W x D)
- 37 x 63 x 225 mm
- Total current US / UA max.
- 16 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Murrelektronik 54630 PROFINET IO-Link master / fieldbus I/O module (IMPACT67 Pro PN DIO8 IOL8 M12L 5P) |
|---|---|
| Brand | Murrelektronik |
| Model | 54630 |
| Category | PLCs & I/O |
| IO-Link | 8x Master, Port Class A, B |
| Supported protocol | PROFINET (Conformance Class C, V2.3) |
| Degree of protection | IP67 |
| Dimensions (H x W x D) | 37 x 63 x 225 mm |
| Total current US / UA max. | 16 A |
| Operating voltage US / UA DC | 24 V |
| Output current per pin max. | 2 A |
| Ambient temperature (operation) | -40 ... 70 °C |
