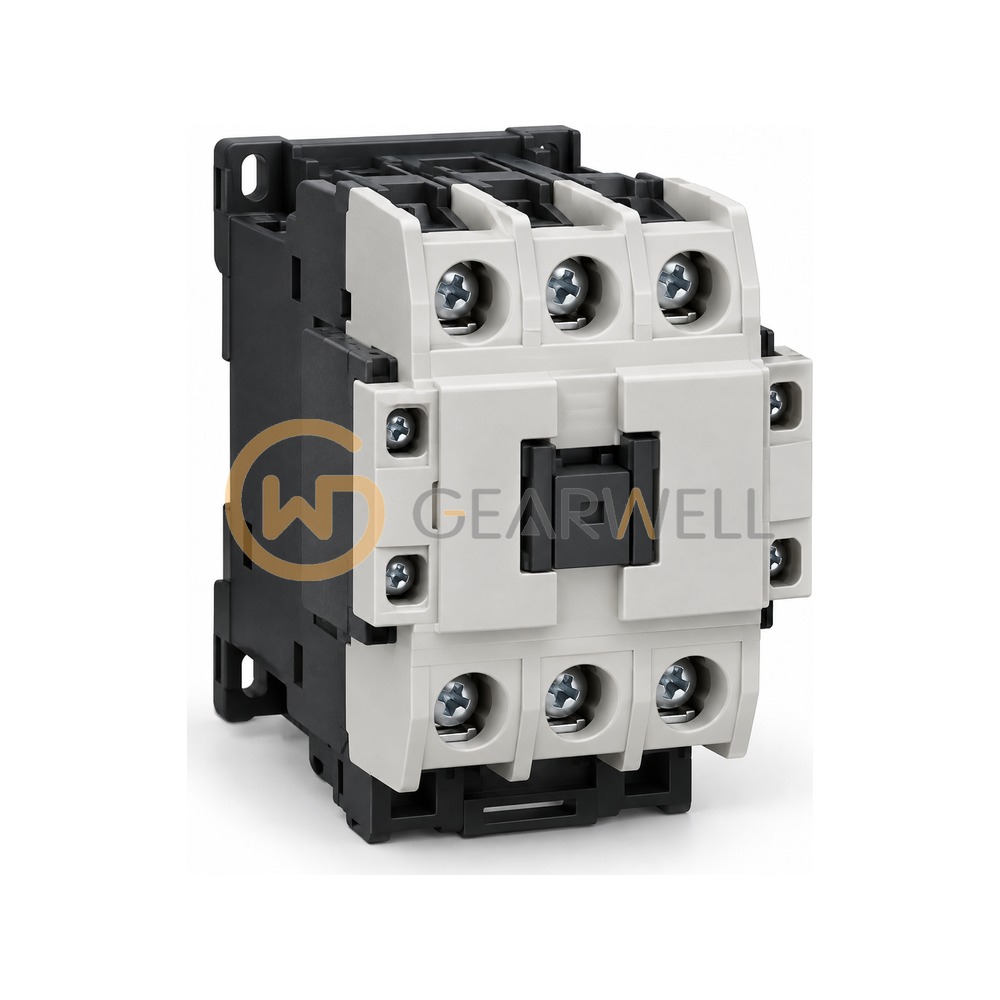

Mitsubishi Electric S-T10 Magnetic contactor (non-reversing, AC operated)
- Brand
- Mitsubishi Electric
- Model
- S-T10
- GEARWELL SKU
- GWP-000015767
- Category
- Contactors & Starters
Key specifications
- Standards
- IEC/EN 60947-4-1, JIS C8201-4-1
- Terminal type
- Screw-clamp
- Electrical durability
- 100000 (at 9 A, AC-3, 380-440 V AC)
- Mechanical durability
- 10 000 000 operations
- Rated insulation voltage
- 690 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Mitsubishi Electric S-T10 Magnetic contactor (non-reversing, AC operated) |
|---|---|
| Brand | Mitsubishi Electric |
| Model | S-T10 |
| Category | Contactors & Starters |
| Standards | IEC/EN 60947-4-1, JIS C8201-4-1 |
| Terminal type | Screw-clamp |
| Electrical durability | 100000 (at 9 A, AC-3, 380-440 V AC) |
| Mechanical durability | 10 000 000 operations |
| Rated insulation voltage | 690 V |
| Rated capacity AC-3, 3-phase 690 V | 4 kW |
| Rated capacity AC-3, 3-phase 220-240 V | 2.5 kW |
| Rated capacity AC-3, 3-phase 380-440 V | 4 kW |
