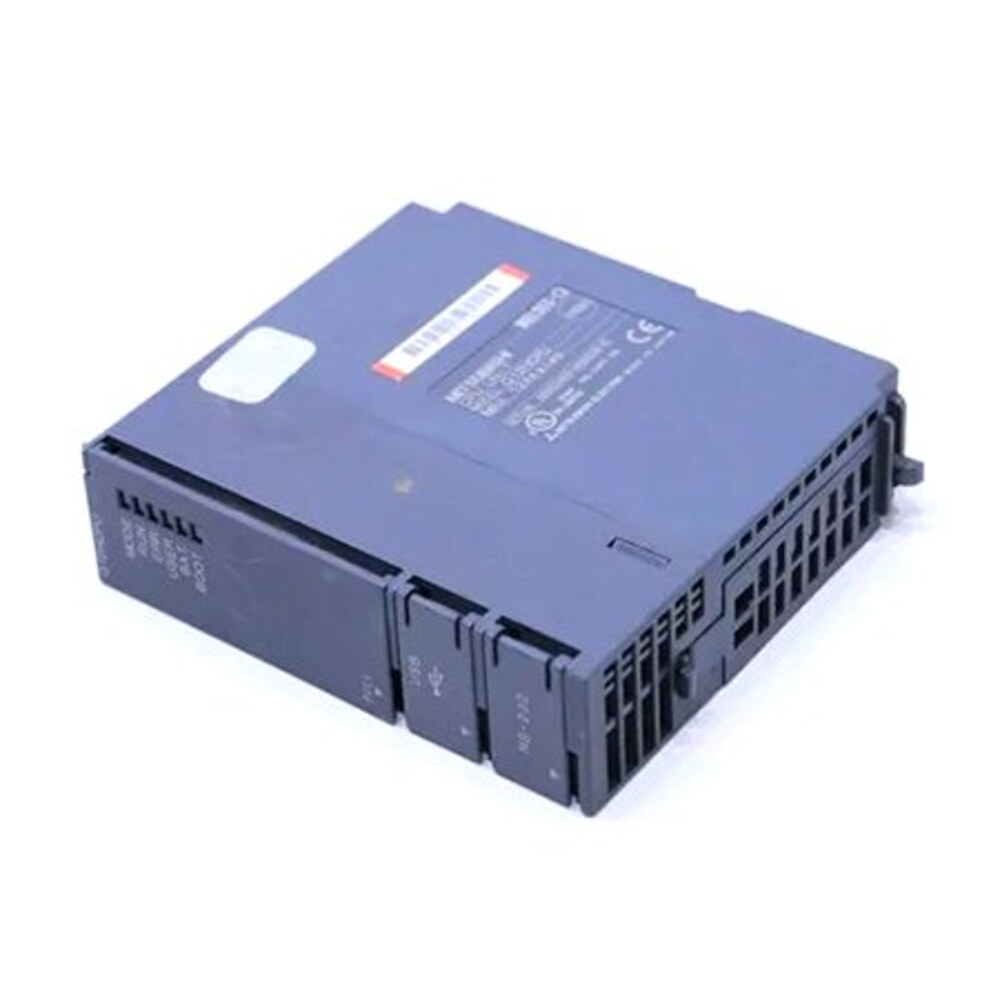

Mitsubishi Electric Q62HLC Loop Control Module
- Brand
- Mitsubishi Electric
- Model
- Q62HLC
- GEARWELL SKU
- GWP-000004057
- Category
- Industrial Automation Parts
Key specifications
- External connection
- 18-point terminal block
- Supported input types
- Thermocouple, micro voltage, voltage and current
- Product type
- Loop control module
- Control channels
- 2
- Analog output
- 4 to 20 mA DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric Q62HLC is a MELSEC-Q loop control module that performs continuous proportional PID control on 2 loops, with auto tuning. Its 2 input channels accept thermocouples (K, J, T, S, R, N, E, B and others), micro voltage, voltage or current signals, and its 2 output channels deliver 4 to 20mA. Sampling and control output updating run at 25ms for 2 channels. Wiring is on an 18-point terminal block, a 24VDC external supply is needed, internal current consumption is 0.27A and weight is 0.25kg.
Technical reference
| Product name | Mitsubishi Electric Q62HLC Loop Control Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | Q62HLC |
| Category | Industrial Automation Parts |
| External connection | 18-point terminal block |
| Supported input types | Thermocouple, micro voltage, voltage and current |
| Product type | Loop control module |
| Control channels | 2 |
| Analog output | 4 to 20 mA DC |
| Sampling cycle | 25 ms for 2 channels |
| Input conversion speed | 25 ms for 2 channels |
| Output conversion speed | 25 ms for 2 channels |
