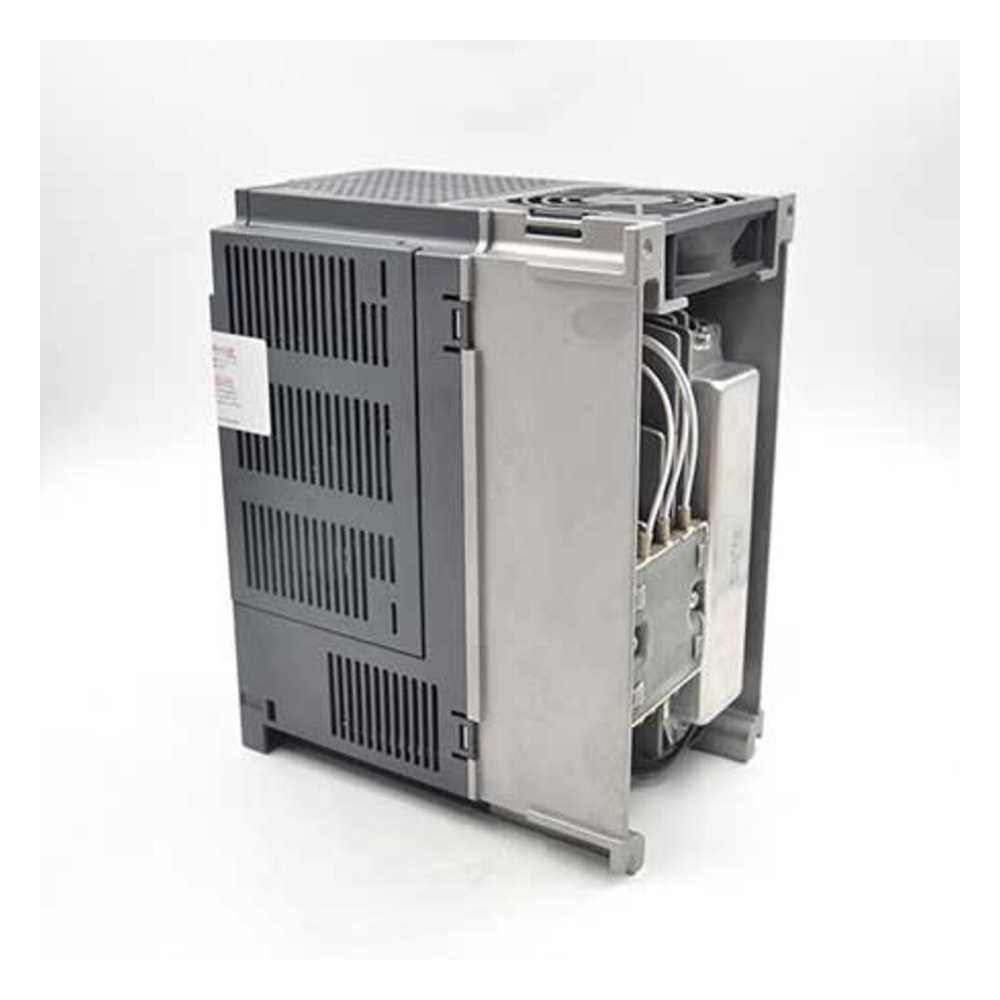

Mitsubishi Electric MR-J3-500B Servo Amplifier
- Brand
- Mitsubishi Electric
- Model
- MR-J3-500B
- GEARWELL SKU
- GWP-000002660
- Category
- Industrial Automation Parts
Key specifications
- Mass
- 4.6 kg
- Dimensions
- 130 x 250 x 200 mm
- Main circuit power supply
- 3-phase 200 to 230 V AC, 50/60 Hz
- Product type
- MR-J3-B servo amplifier
- Main circuit terminal
- M4 screw; 1.2 N m tightening torque
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric MR-J3-500B is a 5 kW MELSERVO J3 series servo amplifier with an SSCNET III fibre-optic interface for connection to a motion controller. The main circuit runs on 3-phase 200 to 230VAC, 50/60Hz, the control circuit on 1-phase 200 to 230VAC, and the interface needs a 24VDC supply. It uses sine-wave PWM current control, has a built-in dynamic brake and works with servo motor encoders of 262144 pulses/rev. Matching motors include HF-SP, HC-RP, HC-UP, HC-LP and HA-LP types, and the amplifier weighs 4.6 kg.
Technical reference
| Product name | Mitsubishi Electric MR-J3-500B Servo Amplifier |
|---|---|
| Brand | Mitsubishi Electric |
| Model | MR-J3-500B |
| Category | Industrial Automation Parts |
| Mass | 4.6 kg |
| Dimensions | 130 x 250 x 200 mm |
| Main circuit power supply | 3-phase 200 to 230 V AC, 50/60 Hz |
| Product type | MR-J3-B servo amplifier |
| Main circuit terminal | M4 screw; 1.2 N m tightening torque |
| Rated output current | 28.0 A |
| Rated output voltage | 3-phase 170 V AC |
| Main circuit rated current | 21.7 A |
