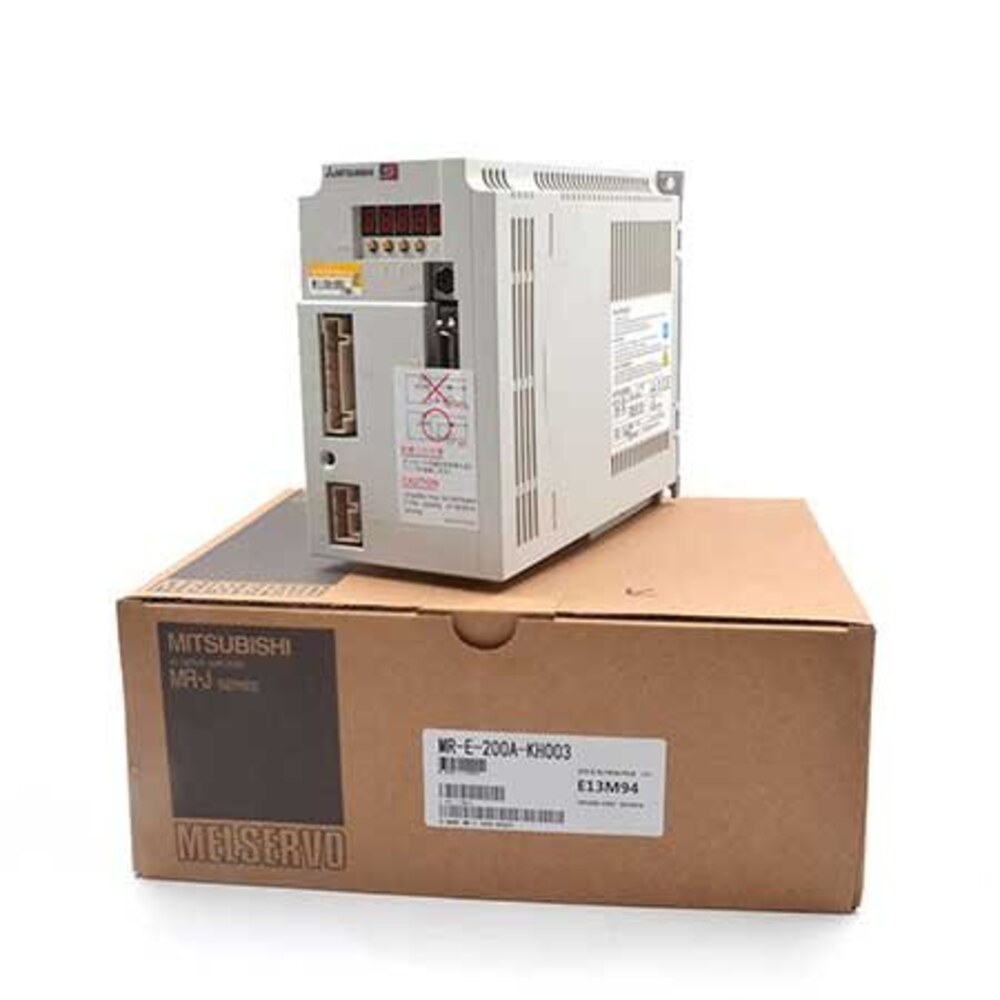

Mitsubishi Electric MR-E-200A-KH003 Servo Amplifier
- Brand
- Mitsubishi Electric
- Model
- MR-E-200A-KH003
- GEARWELL SKU
- GWP-000004324
- Category
- Industrial Automation Parts
Key specifications
- I/O interface
- Sink I/O
- Interface
- Pulse train
- Product type
- MR-E Super servo amplifier
- Rated output
- 2.0 kW
- Compatible servo motors
- HF-SN152J or HF-SN202J family
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric MR-E-200A-KH003 is an MR-E Super general-purpose servo amplifier with a pulse train interface and sink I/O, rated at 2000 W output for HF-SN series servo motors. It takes 3-phase 200 to 230VAC, 50/60Hz at a rated input current of 10.5 A and supplies 11.0 A rated output current at 3-phase 170VAC. Position commands are accepted up to 1Mpps on a differential receiver or 200kpps on open collector, and an internal speed control mode and RS-232C communication are also provided. The unit is force-cooled (IP00), has a built-in dynamic brake and weighs 2.0 kg.
Technical reference
| Product name | Mitsubishi Electric MR-E-200A-KH003 Servo Amplifier |
|---|---|
| Brand | Mitsubishi Electric |
| Model | MR-E-200A-KH003 |
| Category | Industrial Automation Parts |
| I/O interface | Sink I/O |
| Interface | Pulse train |
| Product type | MR-E Super servo amplifier |
| Rated output | 2.0 kW |
| Compatible servo motors | HF-SN152J or HF-SN202J family |
