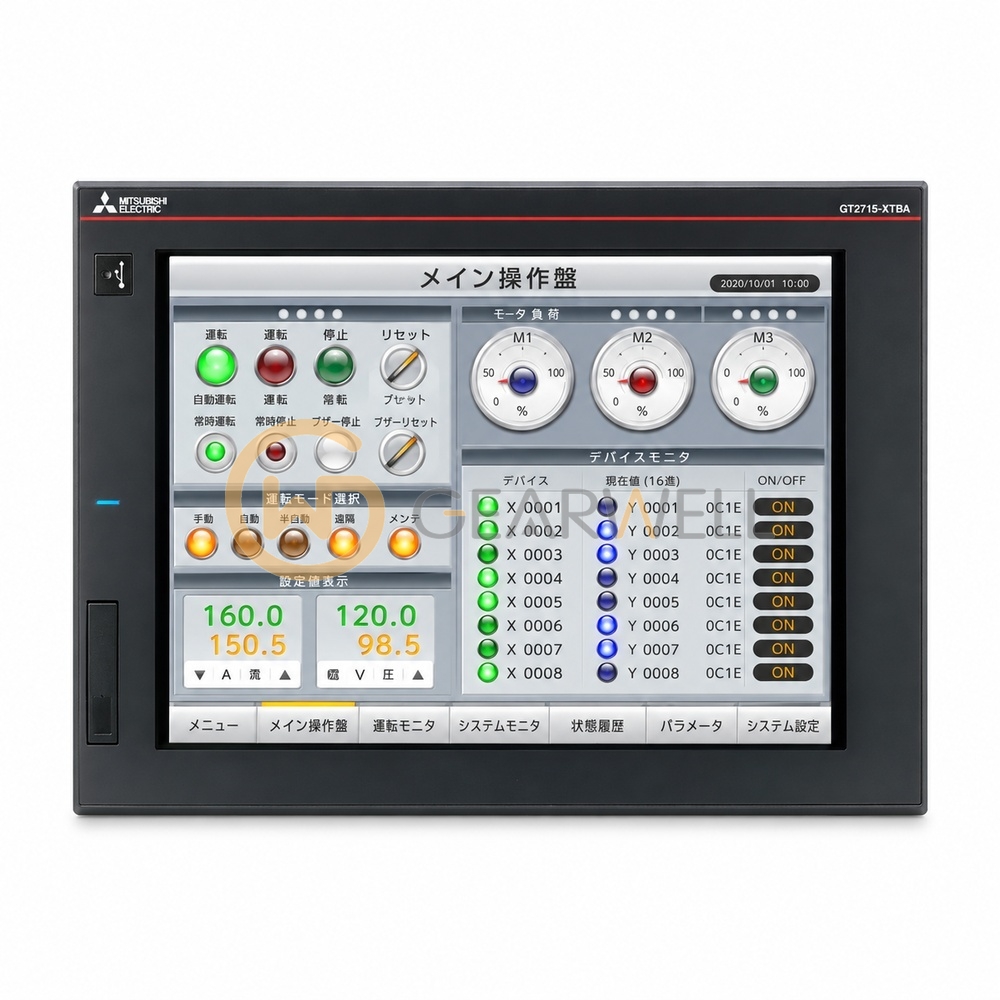

Mitsubishi Electric GT2715-XTBA GOT2000 HMI Touch Panel

Product overview

The Mitsubishi Electric GT2715-XTBA is a GOT2000 GT27 graphic operation terminal with a 15" TFT color LCD at XGA 1024 x 768 dots, 65536 colors and an LED backlight. The analog resistive film touch panel accepts up to two points pressed at once, and a human sensor with a 1 m detection length is built in. User memory is 57 MB storage ROM and 256 MB operation RAM; built-in interfaces are RS-232, RS-422/485, Ethernet 100BASE-TX/10BASE-T, two USB 2.0 host ports (front and rear), a USB device port and an SDHC card slot up to 32 GB, plus extension, auxiliary extension and side interfaces for communication and option units. The front is rated IP67F, the unit measures 397 x 300 x 60 mm (W x H x D) for a 383.5 x 282.5 mm panel cutout, and it weighs 4.5 kg. It runs on 100 V AC to 240 V AC at 50/60 Hz with a maximum apparent power of 140 VA and 51 W or less under maximum load.
