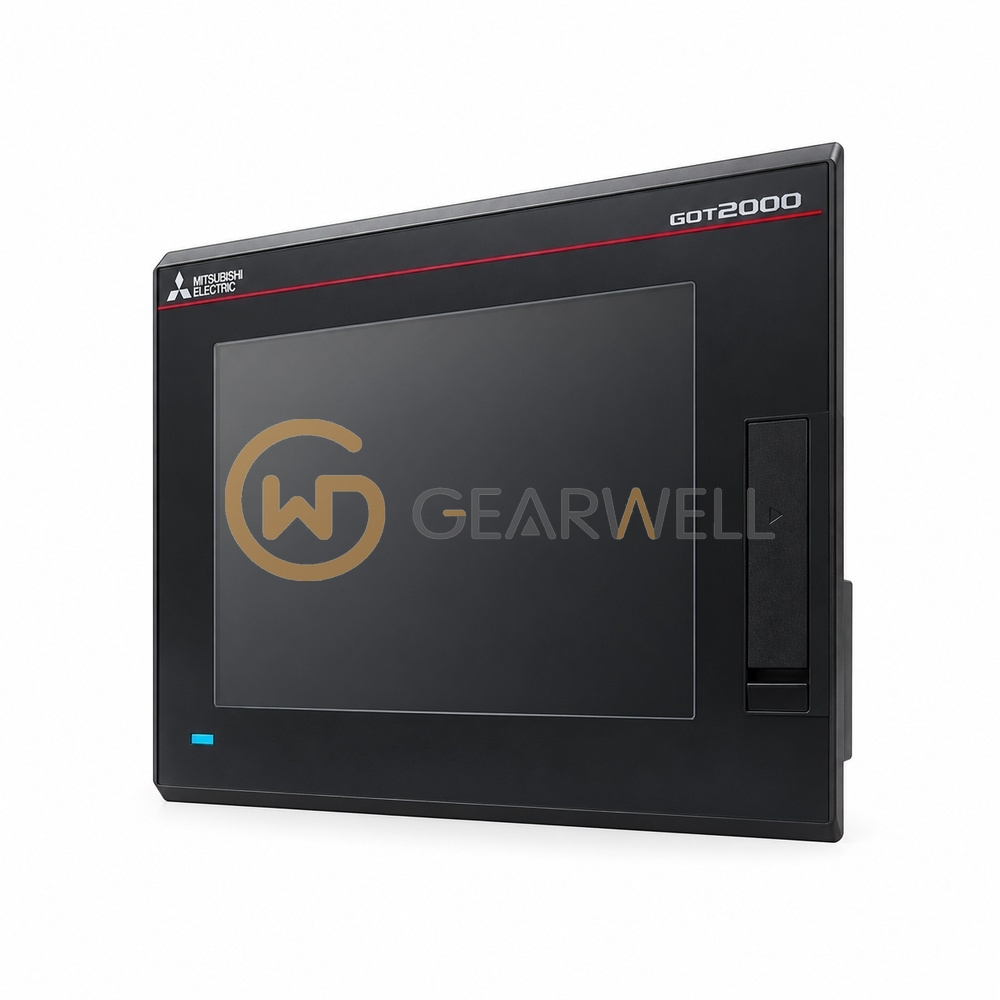

Mitsubishi Electric GT2505-VTBD GOT2000 HMI Touch Panel
- Brand
- Mitsubishi Electric
- Model
- GT2505-VTBD
- GEARWELL SKU
- GWP-000006528
- Category
- HMIs & Industrial PCs
Key specifications
- Display colors
- 65536
- Display diagonal
- 5.7 in
- Display resolution
- VGA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric GT2505-VTBD is a compact GOT2000 GT25 graphic operation terminal with a 5.7" TFT color LCD at VGA 640 x 480 dots, 65536 colors and an LED backlight. The analog resistive film touch panel takes one touch point at a time. User memory is 32 MB storage ROM and 80 MB operation RAM; built-in interfaces are RS-232, RS-422/485 with a selectable terminating resistor, Ethernet 100BASE-TX/10BASE-T, a USB 2.0 host port at the rear, a USB device port at the front and an SDHC card slot up to 32 GB. The front is rated IP67F, the unit measures 164 x 139 x 53.5 mm (W x H x D) for a 153 x 121 mm panel cutout, and it weighs 0.6 kg. It is powered from 24 V DC (+10%, -15%) and draws 8.4 W or less under maximum load.
Technical reference
| Product name | Mitsubishi Electric GT2505-VTBD GOT2000 HMI Touch Panel |
|---|---|
| Brand | Mitsubishi Electric |
| Model | GT2505-VTBD |
| Category | HMIs & Industrial PCs |
| Display colors | 65536 |
| Display diagonal | 5.7 in |
| Display resolution | VGA |
