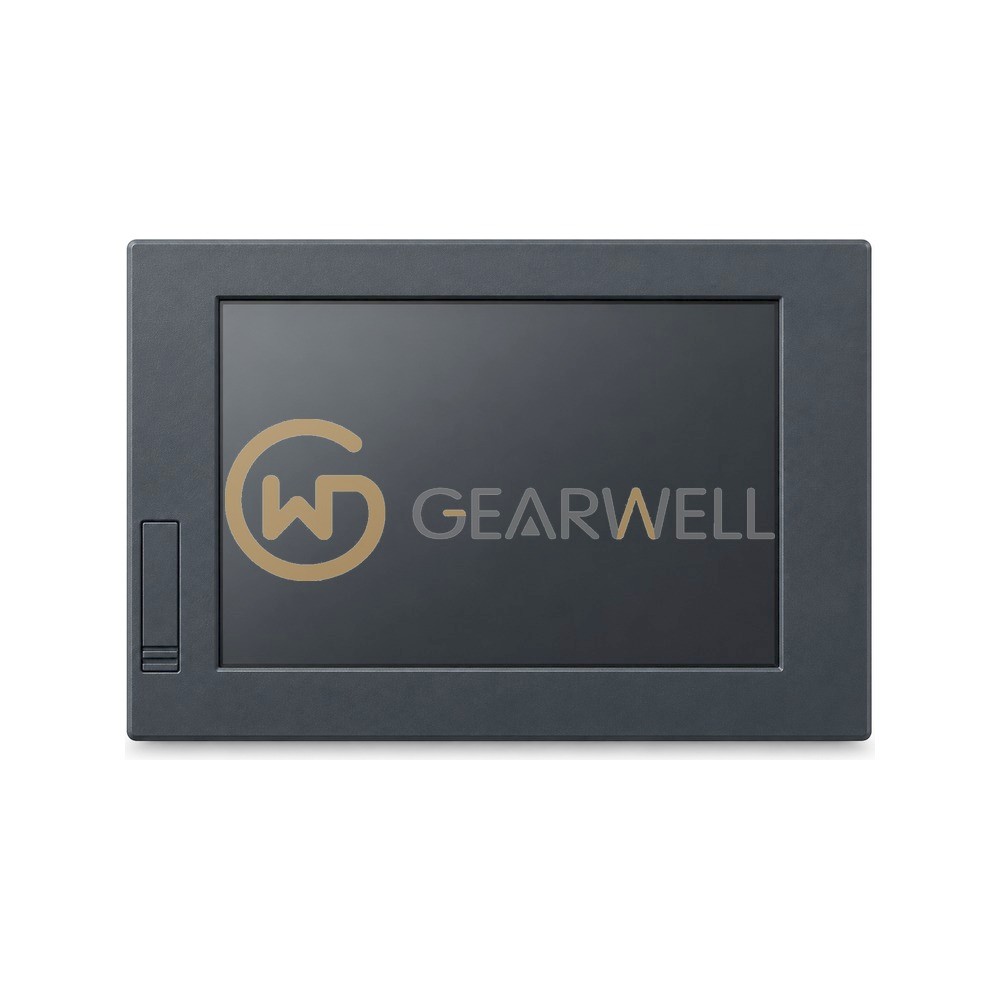

Mitsubishi Electric GT1675-VNBA GOT1000 Graphic Operation Terminal
- Brand
- Mitsubishi Electric
- Model
- GT1675-VNBA
- GEARWELL SKU
- GWP-000013797
- Category
- HMIs & Industrial PCs
Key specifications
- Resolution
- VGA
- Panel color
- Black
- Display size
- 10.4 in
- Display type
- TFT color (4096 colors)
- Power supply
- 100-240 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric GT1675-VNBA is a GOT1000 GT16 graphic operation terminal with a 10.4" TFT color LCD at 640 x 480 dots and 4096 colors with an LED backlight. It has an analog resistive film touch panel and 11 MB of built-in flash memory for project data and OS. Built-in interfaces are RS-232, RS-422/485, Ethernet 100BASE-TX/10BASE-T, a USB host port, a USB device port (Mini-B), a CompactFlash card slot, an option function board slot and 2 extension unit interfaces. The front is rated IP67, the unit measures 303 x 214 x 49 mm (W x H x D) for a 289 x 200 mm panel cutout and weighs 2.3 kg. It runs on 100 to 240 V AC with a maximum apparent power of 100 VA and consumes 39 W or less.
Technical reference
| Product name | Mitsubishi Electric GT1675-VNBA GOT1000 Graphic Operation Terminal |
|---|---|
| Brand | Mitsubishi Electric |
| Model | GT1675-VNBA |
| Category | HMIs & Industrial PCs |
| Resolution | VGA |
| Panel color | Black |
| Display size | 10.4 in |
| Display type | TFT color (4096 colors) |
| Power supply | 100-240 V AC |
