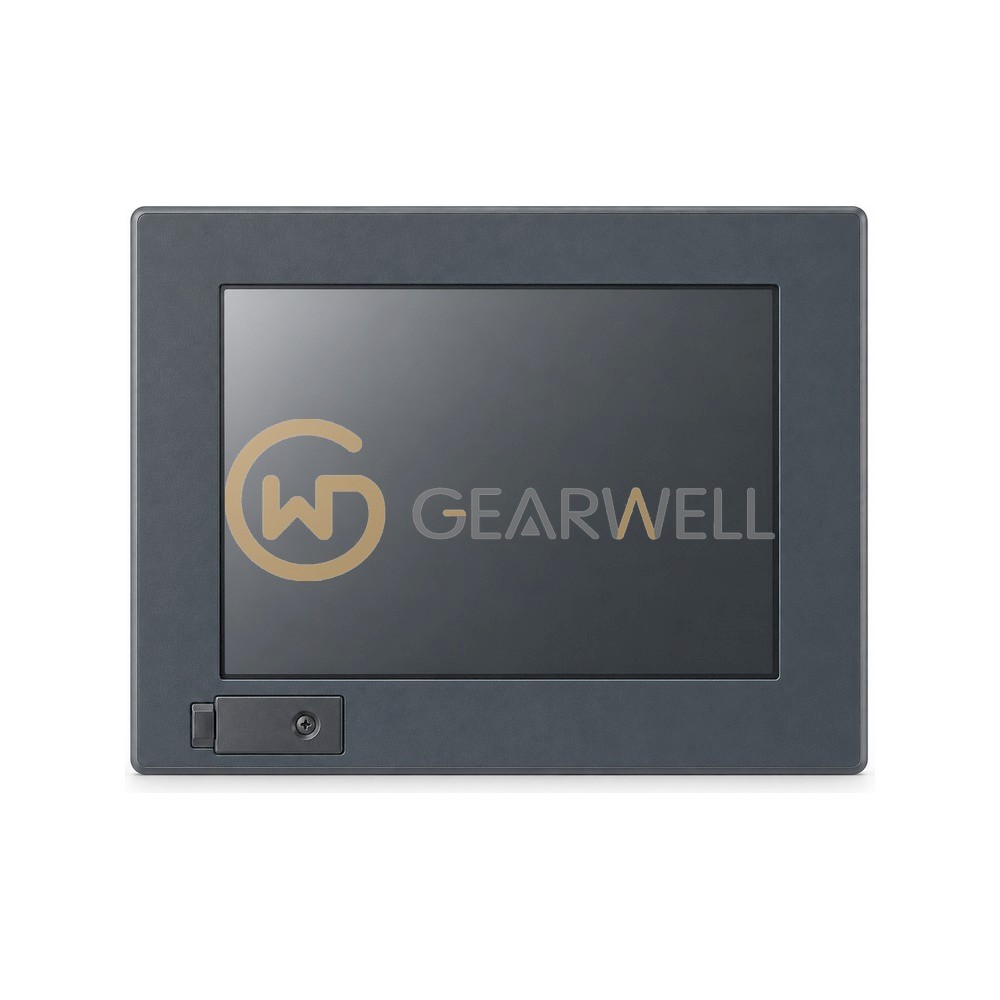

Mitsubishi Electric GT1555-VTBD GOT1000 Graphic Operation Terminal
- Brand
- Mitsubishi Electric
- Model
- GT1555-VTBD
- GEARWELL SKU
- GWP-000013796
- Category
- HMIs & Industrial PCs
Key specifications
- Resolution
- VGA
- Panel color
- Black
- Display size
- 5.7 in
- Display type
- TFT color (65536 colors)
- Power supply
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric GT1555-VTBD is a GOT1000 GT15 graphic operation terminal with a 5.7" high-intensity, wide-angle TFT color LCD at 640 x 480 dots and 65536 colors. The matrix resistive film touch panel supports up to 1200 objects per screen, and the built-in flash memory for project data and OS is 9 MB. Built-in interfaces are RS-232 (D-sub 9-pin), a USB device port (Mini-B), a CompactFlash card slot, an option function board slot and an extension interface for communication or option units. The front is rated IP67, the unit measures 167 x 135 x 56 mm (W x H x D) for a 153 x 121 mm panel cutout and weighs 1.1 kg. It is powered from 24 V DC and consumes 19 W or less.
Technical reference
| Product name | Mitsubishi Electric GT1555-VTBD GOT1000 Graphic Operation Terminal |
|---|---|
| Brand | Mitsubishi Electric |
| Model | GT1555-VTBD |
| Category | HMIs & Industrial PCs |
| Resolution | VGA |
| Panel color | Black |
| Display size | 5.7 in |
| Display type | TFT color (65536 colors) |
| Power supply | 24 V DC |
