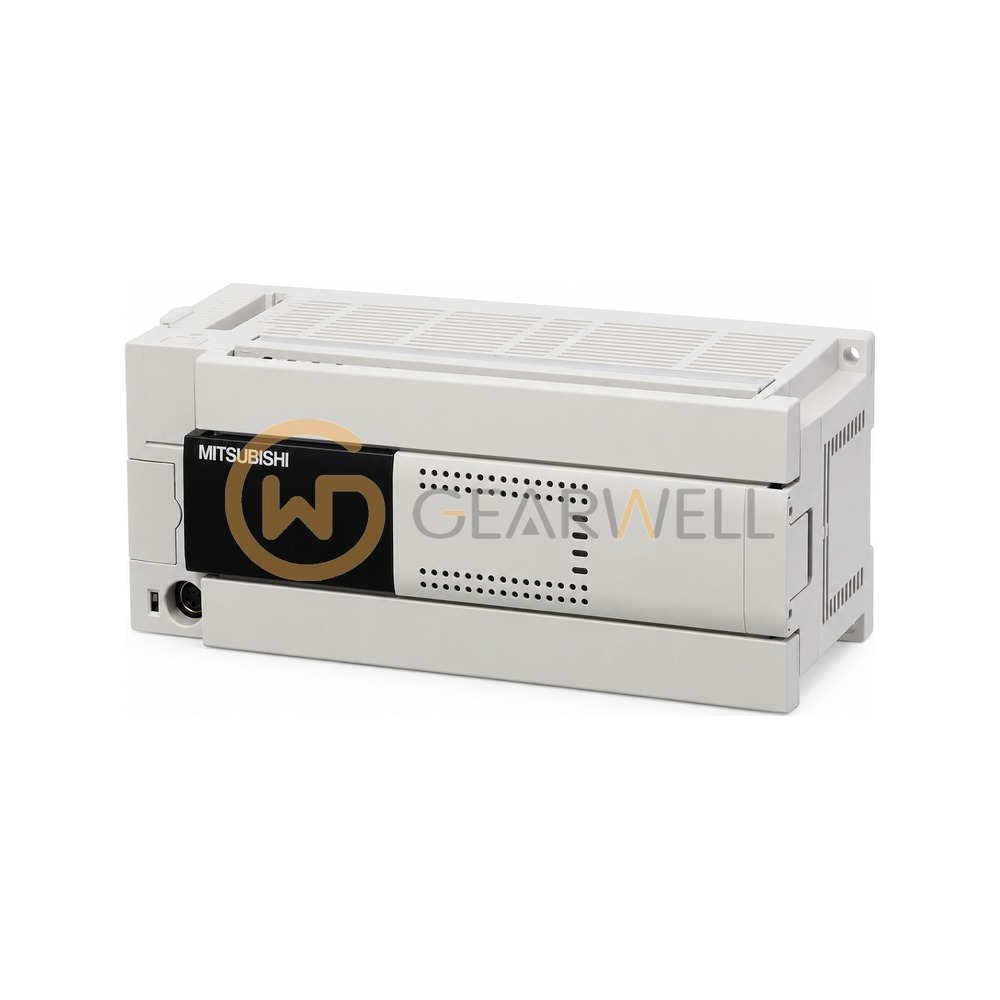

Mitsubishi Electric FX3U-64MR PLC main unit (base unit), relay output
- Brand
- Mitsubishi Electric
- Model
- FX3U-64MR
- GEARWELL SKU
- GWP-000013481
- Category
- PLCs & I/O
Key specifications
- Output type
- Relay
- Program memory
- 64K steps
- Local I/O points
- 256
- Protection class
- IP10
- Dimensions (W x H x D)
- 220 x 90 x 86 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX3U-64MR identifies a MELSEC-F FX3U series main unit with 64 built-in I/O points: 32 inputs and 32 relay outputs. Mitsubishi offers it as FX3U-64MR/ES (AC supply, 24 V DC sink/source input), FX3U-64MR/DS (24 V DC supply) and FX3U-64MR/UA1 (100 V AC input). FX3U main units have a 64K-step RAM program memory. Give us the full suffix from the nameplate when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX3U-64MR PLC main unit (base unit), relay output |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX3U-64MR |
| Category | PLCs & I/O |
| Output type | Relay |
| Program memory | 64K steps |
| Local I/O points | 256 |
| Protection class | IP10 |
| Dimensions (W x H x D) | 220 x 90 x 86 mm |
| Local + remote I/O points | 384 |
| Integrated digital inputs | 32 |
| Integrated digital outputs | 32 |
